409L Stainless Steel Plate - Chromium Titanium Stabilized for Automotive Exhaust Systems with Corrosion Resistance
Product Details
| Model NO. | 409L | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Chemical Composition C | Min. Max. - 0.08 | Chemical Composition Mn | - 1.0 |
| Chemical Composition Si | - 1.0 | Chemical Composition P | - 0.045 |
| Chemical Composition S | - 0.03 | Chemical Composition Cr | 10.5~11.75 |
| Chemical Composition Ni | - 0.5 | Chemical Composition Ti | 6C~0.75 |
| Mechanical Property Y.S | ≥175 N/MM2 | ||
| Highlight | Chromium Titanium Stabilized 409L Stainless Steel Plate,Automotive Exhaust Systems Suh409L Inox Plate,Corrosion Resistant No. 1 Stainless Steel Plate |
||
Product Description
409L Stainless Steel Plate - SUH409L Inox Plate No. 1
Product Overview
Alloy 409 is a general-purpose, chromium, titanium-stabilized, ferritic stainless steel primarily used in automotive exhaust systems. With 11% chromium content—the minimum required for forming the passive surface film that provides corrosion resistance—this alloy combines excellent elevated temperature corrosion resistance with medium strength, good formability, and overall cost-effectiveness. 409L stainless steel offers superior corrosion resistance compared to carbon steel and serves as an ideal alternative in mildly challenging environments where corrosion resistance and high-temperature oxidation properties are advantageous.
Technical Specifications
| Standard | ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME |
|---|---|
| Grade | 446, 430, 409, 904L, 409L |
| Certification | SGS, BV, IQI, TUV, ISO |
| Export Markets | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Kuwait, Oman, Dubai, Peru, South Africa, Iraq, Mexico, Russia, Malaysia, Nigeria, Italy |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti |
|---|---|---|---|---|---|---|---|---|
| 409L | min. max. - 0.08 | - 1.0 | - 1.0 | - 0.045 | - 0.03 | 10.5~11.75 | - 0.5 | 6C~0.75 |
Mechanical & Physical Properties
| Spec | Grade | Y.S (N/mm²) | T.S (N/mm²) | EL (%) | HRB | Specific Heat (J/gºC) | Modulus of Elasticity (KN/mm²) |
|---|---|---|---|---|---|---|---|
| JIS | SUS409L | ≥175 | ≥360 | ≥25 | ≤80 | 0.46 | 200 |
| JIS | SUS429 | ≥205 | ≥450 | ≥22 | ≤88 | 220 | |
| JIS | SUS436L | ≥245 | ≥410 | ≥20 | ≤96 | 0.46 | 220 |
| ASTM | S43932 | ≥205 | ≥415 | ≥22 | ≤89 | 0.46 | 220 |
| EN | 1.4509 | ≥250 | 430-630 | ≥25 | ≤80 | 0.46 | 220 |
Our Services
- Sample orders welcomed
- Customized packing and OEM services accepted
- Multiple transport options: by sea, by air & freight companies (DHL, FEDEX, UPS, TNT, EMS)
- Factory direct sales with custom stainless steel products according to customer requirements

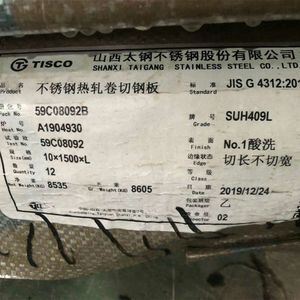

Product Visual Reference
