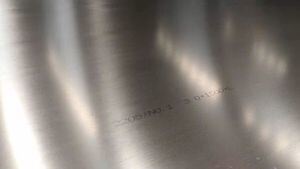

Hot Rolled S31803 Duplex Steel Plate 2205 Stainless Steel Plate with Chloride Stress Corrosion Resistance and High Strength
Product Details
| Model NO. | 2205 | Shape | Round |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Pickling |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Ferrite Content | 40 - 50% | Max Temperature | 600°F |
| Impact Toughness | Below -40°F | UNS Code | S31803, S32205 |
| ASME Standards | SA-182, SA-240, SA-798, SA-790, SA-815 | ASTM Standards | A182, A240, A276, A479, A789, A790, A815, A928, A988 |
| SAE Standard | J405 | Corrosion Resistance | Superior To 316/316L, 317L |
| Strength | Higher Than 316/316L | ||
| Highlight | Hot Rolled Duplex Steel Plate,Chloride Stress Corrosion Resistant 2205 Stainless Steel Plate,High Strength S31803 Stainless Steel Plate |
||
Product Description
S31803 Duplex Steel Plate S32205 2205 Stainless Steel Plate
2205 is a duplex (austenitic-ferritic) stainless steel containing about 40-50% ferrite in the annealed condition. This alloy provides a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless steels. The high chromium, molybdenum, and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. Note that 2205 is not recommended for operating temperatures above 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. This alloy maintains good notch impact toughness down to temperatures below -40°F and is welded with E2209 or ER2209 fillers.
Key Features
- High resistance to chloride stress corrosion cracking
- Chloride pitting and crevice corrosion resistance superior to 317L stainless
- Good general corrosion resistance
- High strength
- Good sulfide stress corrosion resistance
- Useful up to 600°F
Applications
- Chemical process vessels, piping, and heat exchangers
- FGD scrubber systems
- Pulp mill digesters, bleach washers, chip presteaming vessels
- Food process equipment
- Oil field piping, heat exchangers
Specifications
UNS S31803
ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51), A240, A276, A479, A789, A790, A815, A928, A988
SAE J405
ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51), A240, A276, A479, A789, A790, A815, A928, A988
SAE J405
UNS S32205
ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405
ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405
