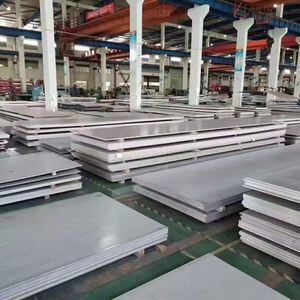

ASME Standard Hot Rolled 321 Stainless Steel Sheet and Plate with 3.0mm - 100mm Thickness

Certification	RoHS, AISI, ASTM, GB, DIN, JIS
Minimum Order Quantity	50 kg
Price	US $2.66-3.44 / kg

Product Details

Shape	Flat	Technique	Cold Rolled
Surface Treatment	Bright	Specification	12202440, 15003000, 15006000, 20006000mm
Thickness	0.6 To 80 Mm	Width	1219mm, 1500mm, 1800mm, 2000mm
Length	2m, 2.44m, 3m, 6m	Finish	SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror
Carbon Content	0.08 Wt%	Chromium Content	17.0-19.0 Wt%
Nickel Content	9.0-12.0 Wt%	Yield Strength	30 Ksi Min
Tensile Strength	75 Ksi Min	Elongation	40% Min
Hardness	95 Rb Max
Highlight	ASME Standard Stainless Steel Sheet , Hot Rolled Stainless Steel Plate , 3.0mm - 100mm Thickness 321 Stainless Steel

Leave a Message

Product Description

ASME Standard Stainless Steel Hot Rolled Plate 3.0mm - 100mm Thickness

Product Specifications

Product Type	321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification	ASTM A240 / ASME SA240
Dimensions	Cold rolled 321 Stainless Steel Sheet 4ft8ft [12192438mm] Hot rolled 321 Stainless Steel Plate 5ft20ft, 6ft20ft [15006000mm 18006000mm 2000*6000mm]
Thickness	0.6 to 80 mm
Width	1219mm, 1500mm, 1800mm, 2000mm
Length	2m, 2.44m, 3m, 6m or as required
Finish	SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc.
Our Service	Laser Cutting, bending, welding, polishing
Forms / Shapes	Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate

Grade 321 / 321H Stainless Steel Overview

321 stainless is a titanium stabilized grade commonly used for service in the 1000-1600°F temperature range. For service temperatures up to about 1600°F, a stabilizing treatment at 1550-1650°F, air cool, may be used to provide optimum resistance to intergranular corrosion and to polythionic acid stress corrosion cracking.

321 stainless is readily welded by all common methods including submerged arc. Appropriate weld fillers are AWS ER347 bare wire and E347 covered electrodes. 321 stainless is similar in machinability to 304 stainless steel. It has a machinability rating of 45% relative to AISI B1112.

Product Forms: Sheet, plate, Coil, Strip, wire, Pipe, Tube, Bar, Profile, Round, Flat, Square, Hexagonal

Specifications and Certifications

Grade 321/321H
ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
EN 10088/2, EN 10088/4 and CE Marking
NACE MR 0175/ISO 15156 Certification

Typical Applications

Aircraft piston engine manifolds
Expansion joints
Firearms production
Thermal oxidizers
Refinery equipment
High temperature chemical process equipment

Chemical Composition (wt%)

Element	321
Carbon	0.08
Chromium	17.0-19.0
Nickel	9.0-12.0
Manganese	2.00
Silicon	0.75
Nitrogen	0.10
Phosphorus	0.045
Sulfur	0.030
Titanium	5(C+N) min / 0.70 max

* Maximum, unless range is indicated

Mechanical Properties

Property	321
Yield Strength, min. (ksi)	30
Tensile Strength, min. (ksi)	75
Elongation, min. (%)	40
Hardness, max. (Rb)	95

Grade Specification Comparison

Grade	UNS No	Old British	Euronorm	Swedish SS	Japanese JIS
321	S32100	321S31	1.4541	2337	SUS 321
321H	S32109	321S51	1.4878	-	SUS 321H
347	S34700	347S31	1.4550	2338	SUS 347

Alternative Grades

Grade	Why it might be chosen instead of 321
304L	The requirement is for resistance to intergranular corrosion, not for high-temperature strength
3CR12	Only a mild "high temperature" environment is present… up to about 600 °C
304H	Only a mild "high temperature" environment is present… up to about 800 °C
310	The temperature of the operating environment is up to about 1100 °C - too high for 321 or 321H
S30815 (253MA)	The temperature of the operating environment is up to about 1150 °C - too high for 321 or 321H
