Inconel 718 / UNS N07718 Nickel Alloy Strips High-Temperature Resistant Alloy Coils
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Strip | Grade | Inconel 718 |
|---|---|---|---|
| Thickness | 0.1 - 3.0mm | Width | Custom Slit Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B BA |
Product Description
Inconel 718 / UNS N07718 Nickel Alloy Strips High-Temperature Resistant Alloy Coils
Products Specification
| Products Name | Inconel 718 Nickel Alloy Strips |
| Thickness | 0.1 - 3.0mm |
| Width | within 1219mm |
| Surface | 2B |
| MOQ | 50 kgs |
| Service | Cutting, Surface Finishing |
| Packing | Waterproof paper and wooden pallets |
| Loading Port | Shanghai Port |
| Price term | FOB CFR CIF EXW |
| Payment term | 30% TT in advance , 70% TT balance against copy of B/L |
| Main Grade | Hastelloy C22 C4 X C276 G35 |
| Monel 400 K500 | |
| Incoloy 800 800H 800HT 825 925 | |
| Inconel 600 601 617 625 716 718 | |
| Stainless Steel Grade | 201 202 301 304L 309S 310S 316L 316Ti 317L 321 347 409L 410 410S 420J1 420J2 430 431 436L 439 440A/B/C 441 443 444 2205 2507 904L 254SMO 253MA |
Inconel 718 / UNS N07718 Nickel Alloy Strips – High-Temperature Resistant Alloy Coils
Product Overview
Inconel 718 (UNS N07718) nickel alloy strips are premium-grade, precipitation-hardenable superalloys engineered for exceptional performance in extreme environments. These cold-rolled strips and coils offer outstanding resistance to high temperatures (up to 700°C / 1300°F), oxidation, corrosion, and creep deformation—making them indispensable in aerospace, gas turbine, nuclear, and oil & gas industries.
Manufactured to stringent international standards—including ASTM, AMS, EN, and DIN—our Inconel 718 strips are available in thicknesses from 0.1 mm to 3.0 mm, with precise dimensional control, consistent mechanical properties, and superior surface finish suitable for critical applications.
Key Advantages
- Exceptional high-temperature strength up to 700°C
- Outstanding fatigue and creep resistance
- Excellent weldability without post-weld cracking
- Resists oxidation, sulfidation, and aqueous corrosion
- Precipitation hardenable via heat treatment (γ″ and γ′ phases)
- Cold-rolled for tight tolerances and smooth surface finish
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Alloy Designation | Inconel 718, UNS N07718, W.Nr. 2.4668 |
| Common Standards | ASTM B100, ASTM B906, AMS 5596, EN 10088 |
| Thickness Range | 0.1 mm – 3.0 mm |
| Width Options | 10 mm – 600 mm (custom widths available) |
| Temper Conditions | Annealed (Solution Treated), 1/4H, 1/2H, FH |
| Surface Finish | Bright annealed, pickled, or as-rolled |
| Density | 8.19 g/cm³ |
| Melting Range | 1260–1336°C (2300–2437°F) |
| Tensile Strength (min) | ≥ 1275 MPa (after aging) |
| Yield Strength (0.2% PS) | ≥ 1035 MPa (after aging) |
| Elongation (min) | ≥ 20% |
| Hardness (HB, aged) | 330–440 |
Chemical Composition (Typical Weight %)
| Element | Ni | Cr | Fe | Nb + Ta | Mo | Ti | Al | Co | C | Mn | Si | S | B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal. | 17.0 | — | 4.75 | 2.8 | 0.65 | 0.20 | — | — | — | — | — | — |
| Max | — | 21.0 | 18.0 | 5.50 | 3.3 | 1.15 | 0.80 | 1.0 | 0.08 | 0.35 | 0.35 | 0.015 | 0.006 |
Note: Balance is primarily nickel.
Applicable International Standards
| Region | Standard(s) |
|---|---|
| USA | ASTM B100, ASTM B906, AMS 5596, ASME SB-670 |
| Europe | EN 10088-3, EN 10168 |
| Germany | DIN 2.4668 (Werkstoff Nr.) |
| ISO | ISO 15156, ISO 6208 |
| Aerospace | AMS 5596, AMS 5662 |
Typical Applications
- Jet engine & gas turbine discs, blades, and casings
- Rocket motor casings and thrust chambers
- Downhole wellhead and subsea components (oil & gas)
- Nuclear reactor core internals
- High-performance fasteners and springs
- Cryogenic tanks and superconducting magnets
Heat Treatment Capability
Inconel 718 achieves its peak mechanical properties through a two-step aging process:
- Solution Annealing: 954–982°C, followed by rapid cooling
- Precipitation Hardening:
- 718°C for 8 hours → furnace cool to 621°C → hold 8 hours → air cool
This treatment optimizes γ″ (Ni₃Nb) and γ′ (Ni₃(Al,Ti)) phase formation for maximum strength.
Why Source From Us?
- Mill-certified material with full traceability (EN 10204 3.1)
- Custom coil sizes – tailored thickness, width, ID/OD, and weight
- Advanced cold rolling ensures ±0.005 mm thickness tolerance

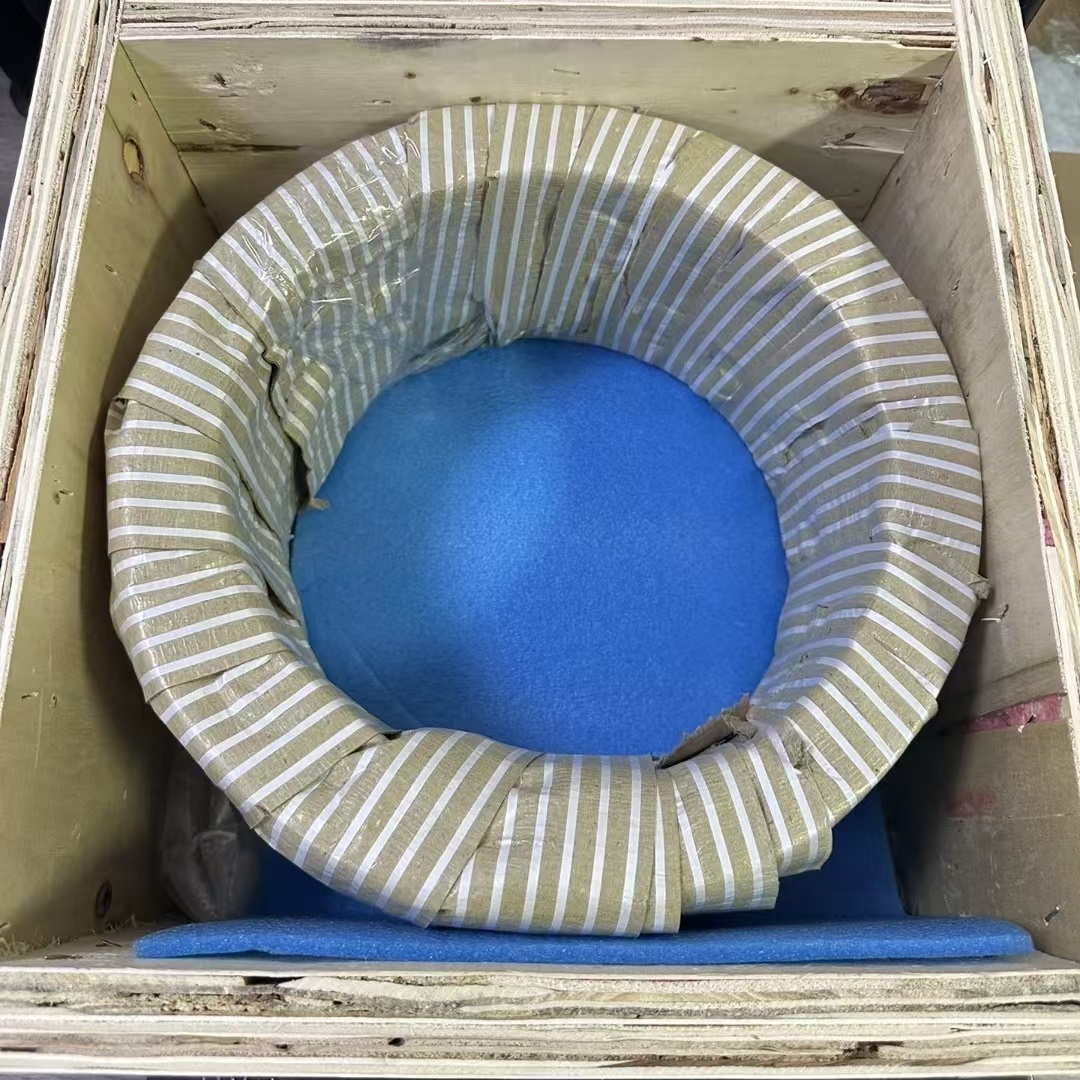

- Global export packaging – VCI-protected, moisture-proof, wooden pallets
- ISO 9001 & AS9100 compliant production for aerospace-grade quality
Inconel 718 strip, UNS N07718 coil, high-temperature nickel alloy strip, cold rolled Inconel 718 0.1mm, ASTM B100 nickel tape, DIN 2.4668 alloy band, precipitation hardenable superalloy foil, aerospace grade Inconel strip, corrosion resistant NiCr alloy coil, 700°C resistant metal strip.
