304 316L Stainless Steel Embossed Sheet 0.6-2.0mm Bright Bead Pattern
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 304 316L 430 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2500 - 3000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 10 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Embossed Stainless Steel Sheet | Grade | 304 201 316L 430 410S.etc |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 1.5mm | Type | Cold Rolled |
| Surface | Embossed Pattern | Application | Decoration |
| Packing | Wooden Pallets | ||
| Highlight | stainless steel embossed sheet,bright bead pattern steel sheet,0.6-2.0mm stainless steel sheet |
||
Product Description

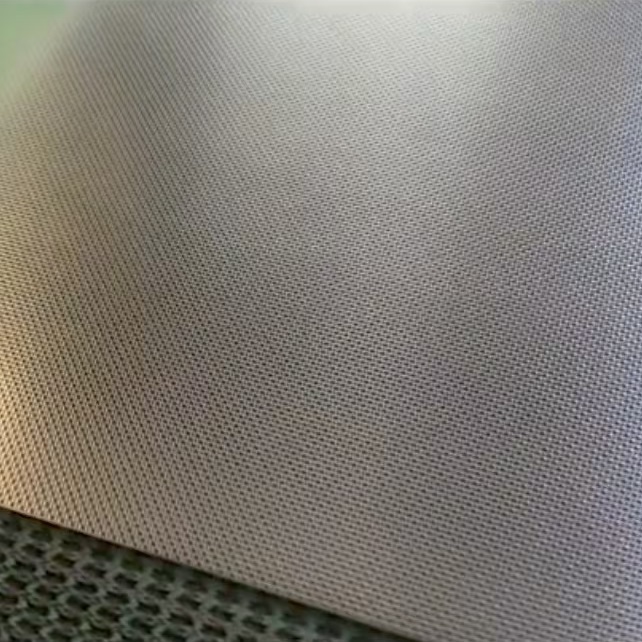

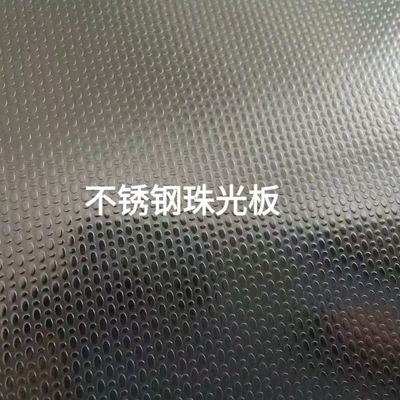

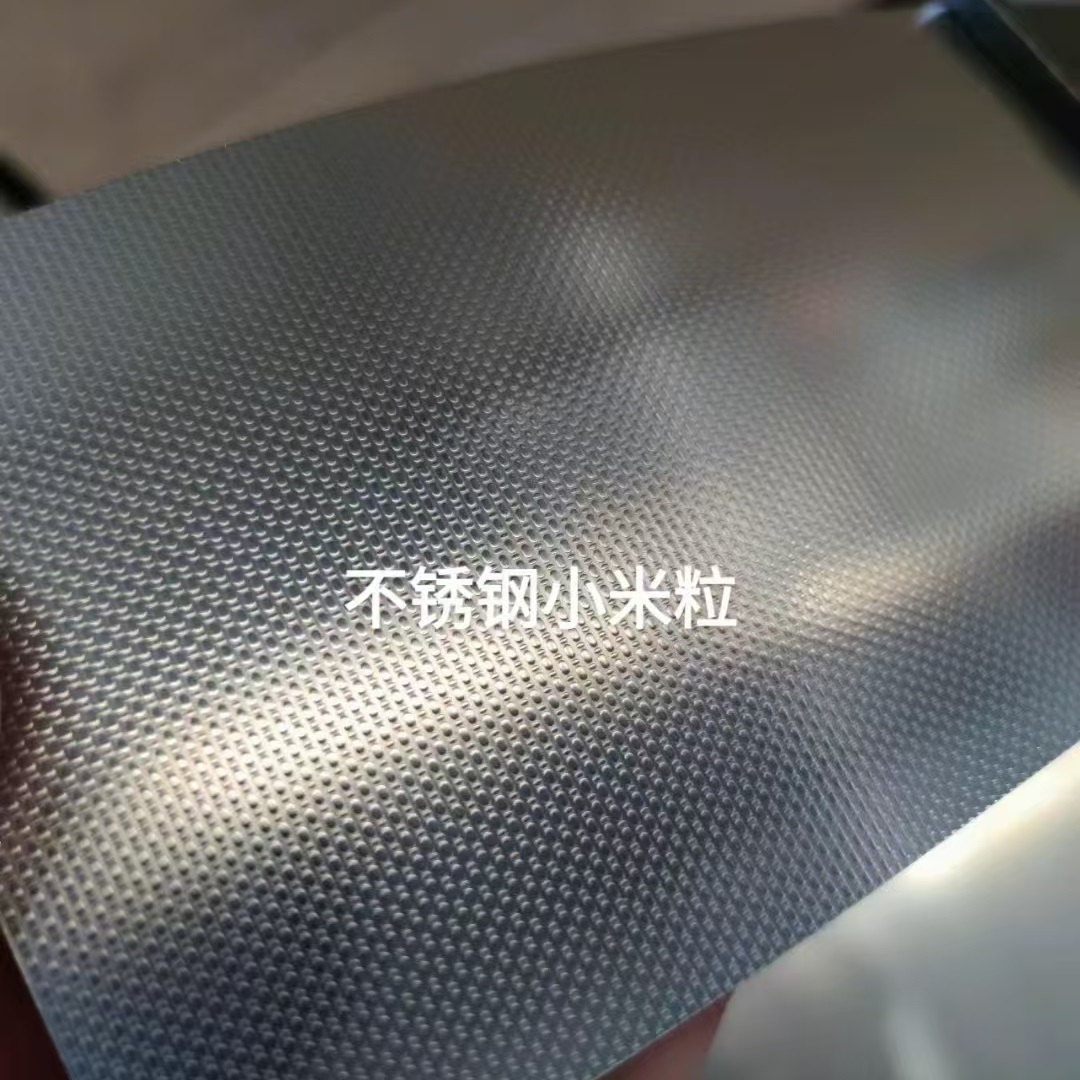

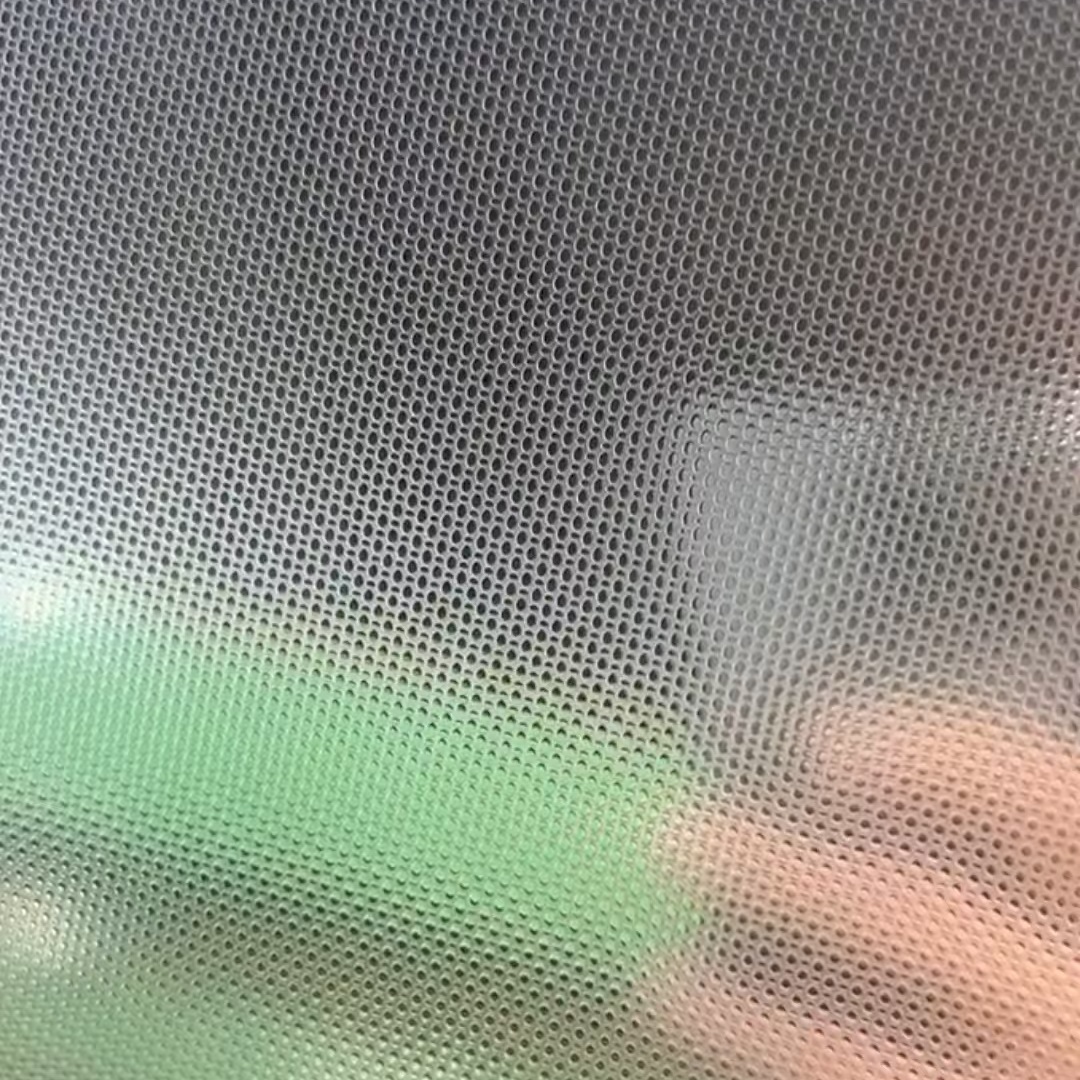

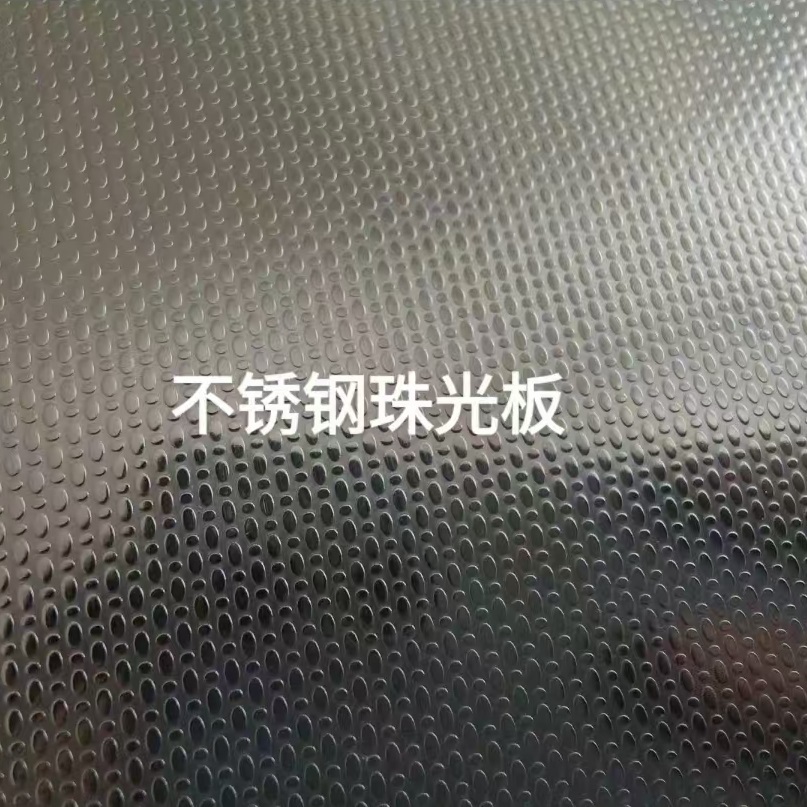

Stainless Steel Embossed Sheet Thickness 0.6 - 2.0mm Bright Bead Pattern Sheet
Products Specification
| Product Name | Embossed Stainless Steel Sheet |
| Length | 2000mm/2438mm/3000mm/or as required |
| Width | 1000mm/1219mm/1500mm/or as required |
| Thickness | 0.4 - 2.0mm or as required |
| Standard | AISI, JIS, GB, etc |
| Surface Finishing | 2B Embossed, BA/polished Embossed, HL/No.4 Embossed,Mirror Embossed. etc |
| Embossing Pattern | Beads,Rhombus,Water drop,rice,water ripple or special pattern as request |
| Thickness Tolerance | ±0.01~0.02mm/or as required |
| Material | 304/316/430/etc |
| Application | Elevator interior/Architectural/Cladding/Interior decorations |
| MOQ | According to embossing inventory, those without inventory need at least 1 ton |
| Lead Time | Within 10~30 workdays after receiving deposit |
| Packing | Standard Export Seaworthy Wooden Package/or as required |
| Capacity | 15,000 PCS Production Capability/Month |
1. Introduction
Stainless steel embossed sheets with a bright bead pattern (thickness ranging from 0.6mm to 2.0mm) are premium metal products that combine aesthetic appeal, functional durability, and anti-slip properties. The "bright bead" pattern features uniform, raised circular motifs that create a distinctive textured surface, enhancing both visual interest and practical performance. Manufactured from high-quality stainless steel alloys, these sheets exhibit excellent resistance to corrosion, rust, and wear, making them ideal for diverse applications in architectural, industrial, and decorative fields. The embossing process not only adds a unique decorative element but also improves mechanical properties such as strength and surface hardness.
2. Common Grades
304 Grade
The most widely used Austenitic stainless steel, 304 offers a balance of corrosion resistance, formability, and strength. It withstands general atmospheric corrosion, mild chemical environments, and is suitable for indoor and outdoor applications where moderate corrosion resistance is required.
316 Grade
Known as the "marine grade" stainless steel, 316 contains molybdenum, providing superior resistance to chloride-induced corrosion (e.g., saltwater, harsh chemicals). It is ideal for coastal projects, marine equipment, and industrial environments with high moisture or chemical exposure.
201 Grade
A cost-effective Austenitic alloy, 201 has lower nickel content than 304/316 but offers good mechanical strength and formability. It is commonly used in non-critical decorative applications and indoor environments with low corrosion risks, such as interior wall cladding or furniture.
430 Grade
A Ferritic stainless steel, 430 features good corrosion resistance in dry environments and excellent heat resistance. It is often chosen for applications requiring magnetic properties or resistance to high-temperature oxidation, such as oven components or automotive trims.
3. Specifications
Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm (custom thicknesses available upon request)
Width
- Standard widths: 1000mm, 1219mm, 1500mm, 2000mm
- Custom widths: Up to 2500mm (subject to manufacturer capabilities)
Length
- Standard lengths: 2000mm, 2438mm, 3000mm, 6000mm
- Custom lengths: Available for bulk orders
Tolerance
- Thickness: ±0.05mm (for ≤1.0mm); ±0.1mm (for >1.0mm)
- Width/length: ±2mm
Pattern Parameters
- Bead diameter: 3-8mm
- Bead height: 0.3-1.0mm
- Center-to-center spacing: 5-15mm
- Pattern repeat: Uniform linear or staggered arrangement
4. Surface Finishing
Primary Embossing Process
The bright bead pattern is created through a cold-rolling embossing process, where a pre-polished stainless steel sheet is passed through rollers engraved with the bead design. This ensures precise pattern replication and consistent surface texture.
Additional Surface Treatments
- Mirror Polishing: Enhances the "bright" appearance, achieving a reflective surface with Ra ≤0.1μm.
- Brushing (Hairline Finish): Creates a uniform, directional matte texture, reducing fingerprint visibility.
- Color Coating: Electrophoretic or PVD (Physical Vapor Deposition) coating can be applied to achieve colors like gold, bronze, or black, combining pattern texture with decorative coloring.
- Anti-fingerprint Coating: A protective layer is applied to minimize smudges and simplify maintenance, ideal for high-touch areas.
5. Applications
Architectural Decoration
- Interior wall/ceiling cladding in hotels, shopping malls, and luxury residences
- Exterior facades and curtain walls (316 grade recommended for coastal areas)
- Elevator interiors, escalator panels, and staircase railings
Industrial Equipment
- Machine covers, control panels, and instrument enclosures (improved grip for manual handling)
- Food processing equipment (304/316 grades for hygiene compliance)
- Chemical storage tanks and pipelines (316 grade for corrosive environments)
Consumer Products
- Kitchen countertops, sink panels, and appliance casings (201/304 grades)
- Furniture components (tables, cabinets) with decorative texture
- Automotive interiors (door panels, dashboard trims) for premium aesthetics
Marine and Coastal Projects
- Boat decks, railing panels, and offshore platform walkways (316 grade for saltwater resistance)
6. Packaging and Transportation
Packaging
- Inner Protection: Each sheet is individually wrapped with anti-static plastic film or kraft paper to prevent scratches and dust accumulation.
- Edge Protection: Foam strips or cardboard corners are applied to protect sheet edges during handling.
- Outer Packaging: Sheets are stacked on wooden pallets (treated for international shipping) and secured with steel strapping. For bulk orders, wooden crates with moisture-absorbing desiccants are used to prevent rust in humid conditions.
Transportation
- Sea Freight: Standard container loading (20'/40' GP/HQ) with proper lashing to avoid shifting. Marine-grade packaging (316-grade sheets may require additional anti-corrosion measures).
- Air Freight: Suitable for urgent orders, with lightweight packaging to minimize cargo weight.
- Handling Notes: Avoid exposure to rain or direct sunlight during transit. Store in dry, well-ventilated warehouses with flat storage to prevent sheet deformation.
