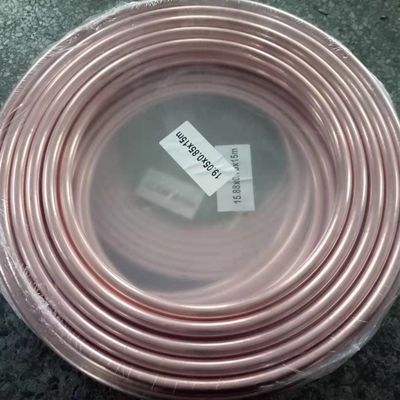

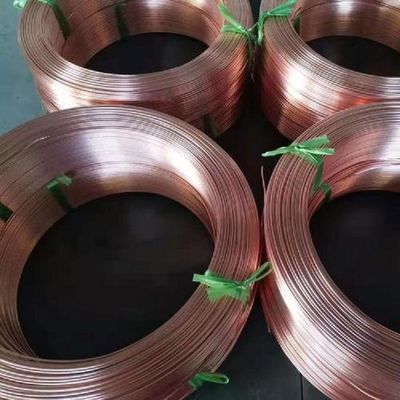

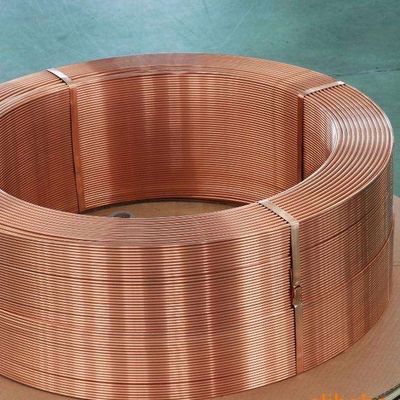

Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs

  • Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs
  • Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs
  • Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs
  • Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs
Place of Origin CHINA
Brand Name DELTA
Certification ISO
Model Number Pure Copper
Minimum Order Quantity 400 kgs
Price 7000-8000 USD/Ton
Packaging Details wooden box
Delivery Time 7-15 days
Payment Terms T/T
Supply Ability 50 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Name Copper Coil Pipe Diameter 1/4" - 1"
Length Custom Any Length As Request Standard GB ASTM EN DIN
Loading Port Shanghai Port Shape Round
Service Cutting Company Type Factory
Other Material Copper Packing Wooden Box
Highlight

15kg Copper Coil Pipes

,

1/4” Copper Coil Pipes

,

100 Kgs Copper Coil Pipes
Leave a Message
Product Description

Copper Coil Pipes 1/4" - 1" Copper Tube En12735-1 Standard Coil Weight 15kg 25kg 50kgs 100 Kgs



Products Specification



Item Name  copper pipe pancake coil copper tube
Standard GB, ASTM, CDA, BS, DIN, JIS
Shape Round,Coil,etc
Length 15m, 30m,50m or as required
OD 1/4",3/4",5/8",1/2",3/8",5/16" or customized
Thickness 0.6mm,0.7mm,0.8mm,0.9mm,1mm or custmozied
Sample Available
Price Term Ex-work, FOB, CIF, CFR, etc
Payment Term FOB,CIF,CNF,EXW
Specification customized
Place of origin Wuxi , China
Application Electric power industry,air-conditioning,refrigerator,decoration,car industry,radiator,water heater



  • Made to EN12735-1
  • Size range 1/2″ to 4 1/8″
  • Inkjet marked
  • Nitrogen purged and capped to reduce contamination

Material Analysis:

  • Material grade phosphorus de-oxidised copper; Cu-DHP or CW024A as defined in BS EN 1976
  • Minimum copper content 99.90% (including silver)
  • Phosphorus 0.015-0.040%
  • Total impurity maxima 0.060% (excluding phosphorus and silver)
  • The melting point of copper is 1083⁰ and it has a density of 8.9 gm/cc

Pipeline solutions for refrigeration and air conditioning, all to EN 12735-1



Our copper tubing is designed specifically for refrigeration and air conditioning use and accordingly cleaned, nitrogen-purged and capped.

Material Analysis

  • Material Grade Phosphorus de-oxidised copper; Cu-DHP or CW024A as defined in BS EN 1976.
  • Minimum Copper Content 99.90 % (including silver)
  • Phosphorus 0.015-0.040 %
  • Total Impurity Maxima 0.060 % (excluding phosphorus and silver)
  • The melting point of copper is 1083ºC and it has a density of 8.9 gm/cc

Mechanical Properties

BS EN 12735-1 Refrigeration and Air Conditioning Tubes



Material Temper EN 1173 Tensile Strength min. (N/mm2) Elongation min. (%) Hardness (Indicative) HV5 VPN
R220 (soft) 220 40 40-70
  250 30 75-100
  290 3 Over 100

Refrigeration and Air Conditioning Tubes Working Pressures



The tables below give the maximum working pressure (MWP)

They have been calculated based on the requirements of EN378:2:2008 using the stress values according to EN 14276.

Although straight tube is supplied in either half hard or fully hard condition, we have also quoted figures based on annealed condition which is representative of the tube in the area immediately surrounding brazed joints.

The maximum test pressure can be 1.5 times that of the (MWP)

Standard Copper Coiled Tube to EN 12735-1 R220



O.D. (inches) Wall
(inches)		 Gauge (SWG) MWP in annealed condition up to 100 c
1/4 0.028 22 125
5/16 0.028 22 98
5/16 0.036 20 129
3/8 0.032 21 81
1/2 0.032 21 69
5/8 0.036 20 61
3/4 0.040 19 54
7/8 0.040 19 46






O.D. (inches) Wall (inches) Gauge (SWG) MWP in annealed condition at 100deg C MWP in supplied* condition at 100deg C
3/8” 0.032 21 93 108
1/2” 0.036 20 78 91
1/2” 0.048 18 102 118
5/8” 0.036 20 62 73
5/8” 0.040 19 67 79
5/8” 0.048 18 81 95
3/4” 0.036 20 51 61
3/4” 0.040 19 57 73
3/4” 0.048 18 65 77
3/4” 0.064 16 88 102
7/8” 0.040 19 46 55
7/8” 0.048 18 55 66
7/8” 0.064 16 75 88
7/8” 0.104 12 125 142
1.1/8” 0.048 18 43 51
1.1/8” 0.064 16 57 68
1.1/8” 0.080 14 72 85
1.3/8” 0.048 18 35 41
1.3/8” 0.064 16 47 55
1.3/8” 0.080 14 59 69
1.3/8” 0.104 12 77 90
1.5/8” 0.048 18 29 35
1.5/8” 0.064 16 39 47
1.5/8” 0.080 14 49 58
1.5/8” 0.104 12 65 76
1.5/8” 0.116 11 73 85
2.1/8” 0.048 18 22 27
2.1/8” 0.064 16 30 35
2.1/8” 0.080 14 37 44
2.1/8” 0.104 12 49 58
2.5/8” 0.048 18 18 25
2.5/8” 0.064 16 24 33
2.5/8” 0.080 14 30 41
2.5/8” 0.104 12 39 54
3.1/8” 0.064 16 20 28
3.1/8” 0.080 14 25 35
3.1/8” 0.104 12 33 45
3.5/8” 0.064 16 17 24
3.5/8” 0.080 14 22 30
4.1/8” 0.064 16 15 21
4.1/8” 0.080 14 19 26
4.1/8” 0.104 12 25
