Hot Rolled Cold Rolled Checkered Stainless Steel Plate Anti Slipping
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 316L 2205 321.etc |
| Minimum Order Quantity | 1 Ton |
| Price | 2250 - 3150 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Checkered Plate | Grade | 201/202/304/304L/316/316L/309S/310S/410/420/430 |
|---|---|---|---|
| Thickness | 0.5 - 8.0mm | Standard | ASTM EN GB |
| Width | 1000mm 1219mm 1500mm | Surface | 2B NO.1 |
| Brand | TISCO BAOSTEEL | MOQ | 1 Ton |
| Edge | Mill Edge/Slit Edge | Item | Stainless Steel |
| Lengh | 2438mm,3000mm Or As Required | Length | 1000mm-6000mm |
| Material | Stainless Steel | Processing Ways | Cold Rolled/Hot Rolled |
| Product Type | Steel Plate | Shape | Round |
| Surface Finish | No . 1 BA | Technology | Hot Rolled, Cold Rolled |
| Tolerance | ±0.02mm | ||
| Highlight | Cold Rolled Stainless Steel Plate,Anti Slipping Stainless Steel Plate,Checkered Stainless Steel Plate |
||
Product Description

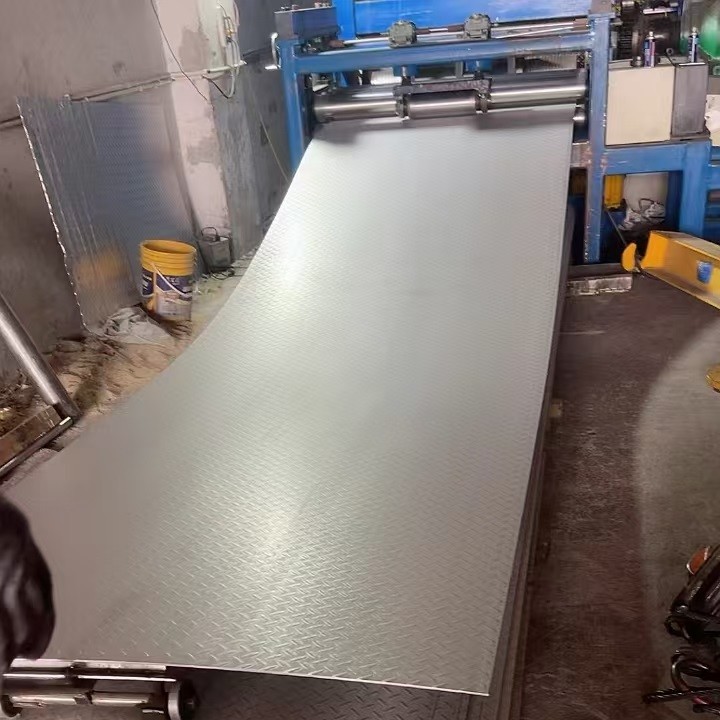

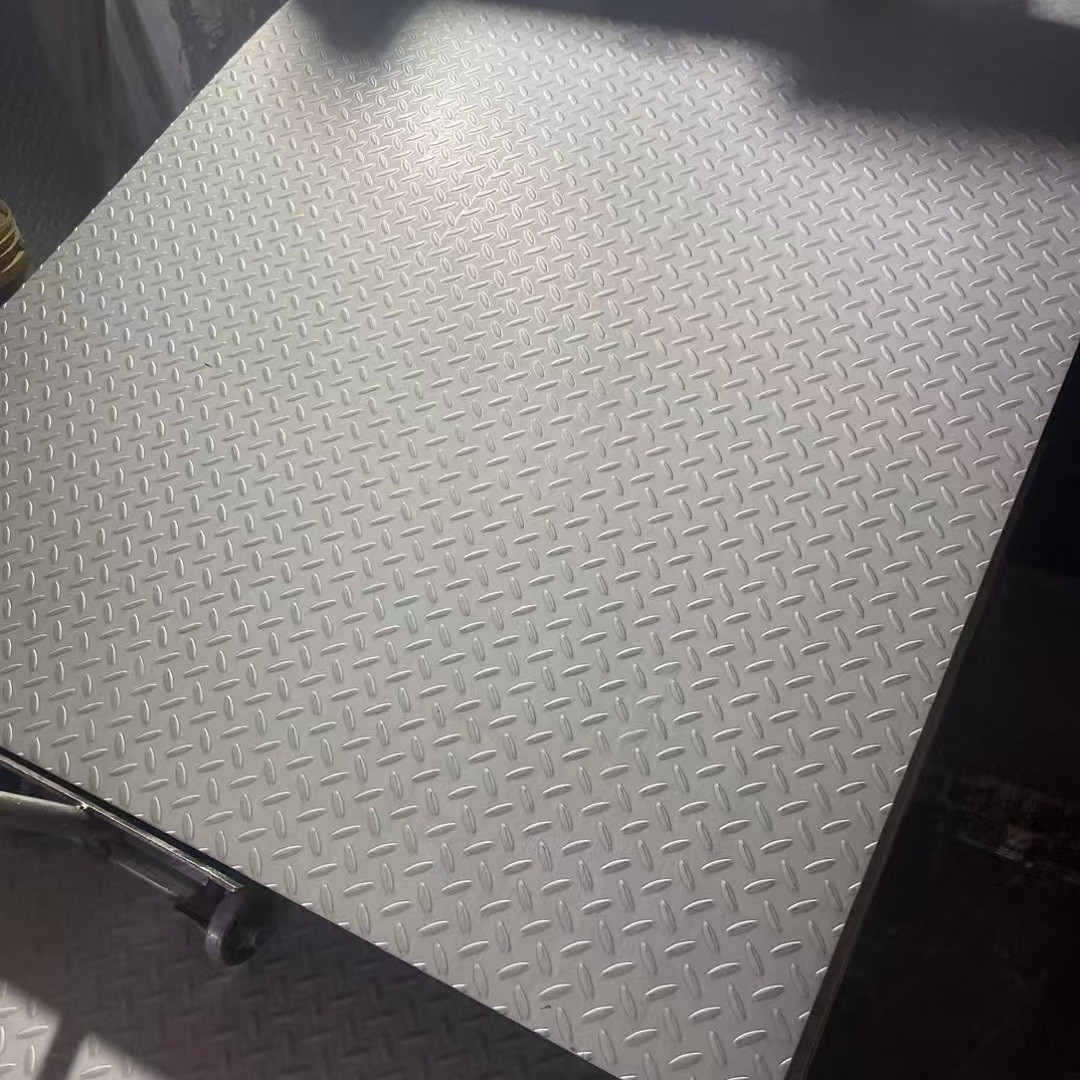

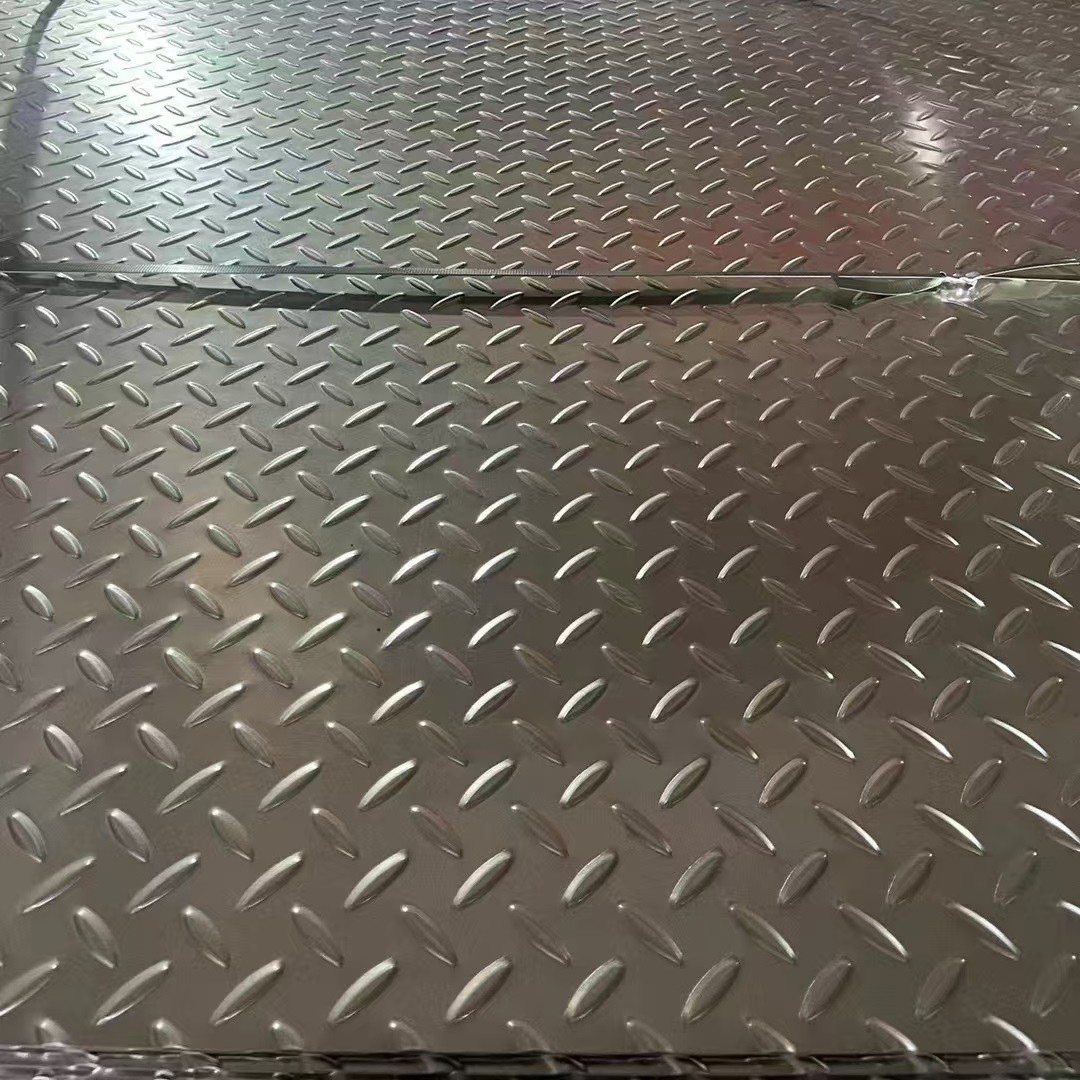

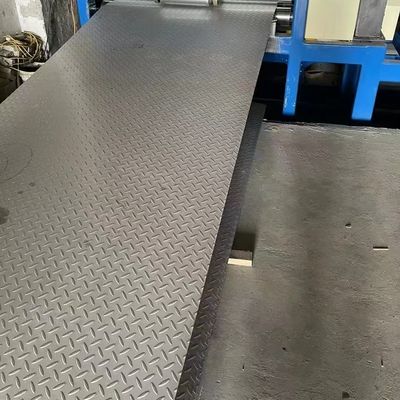

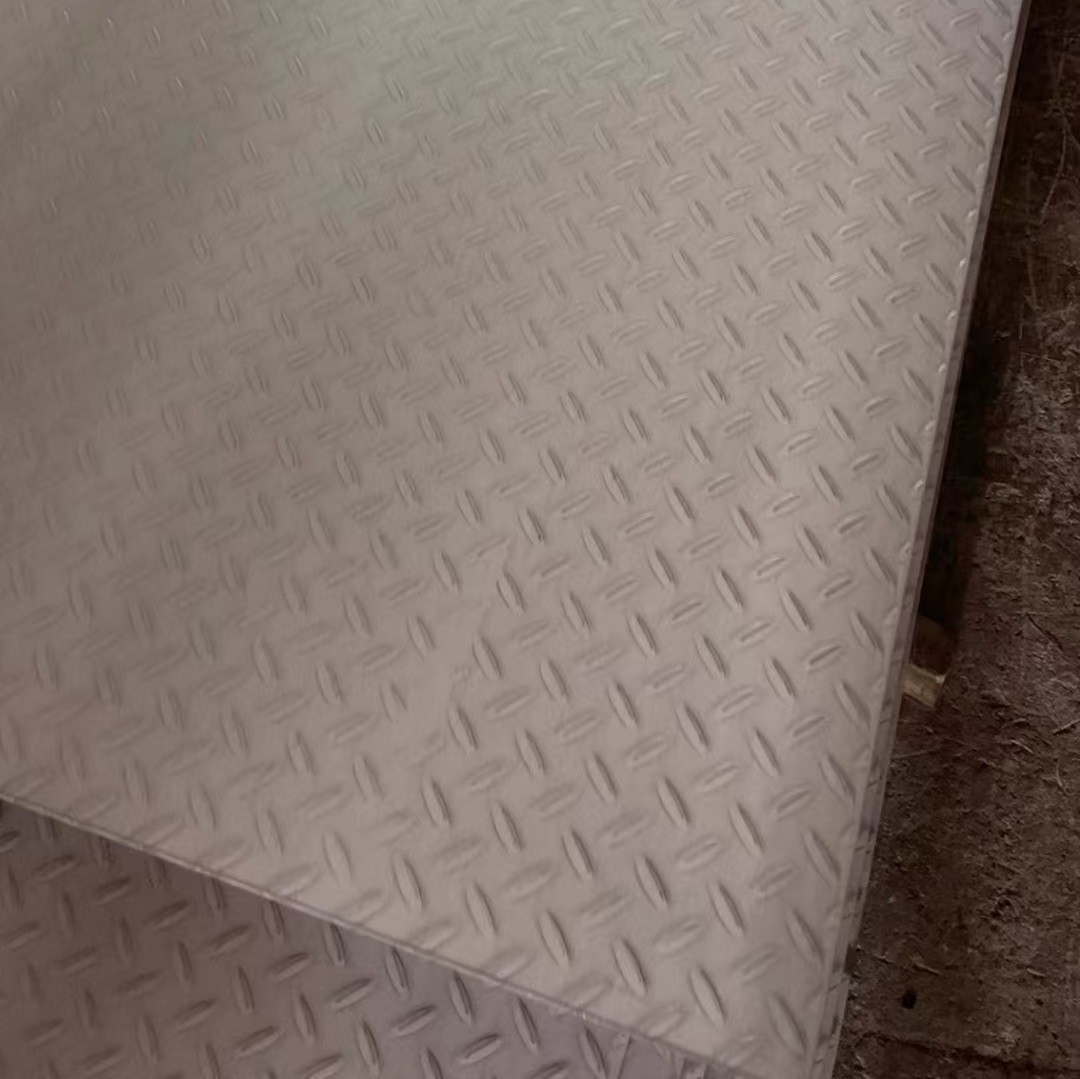

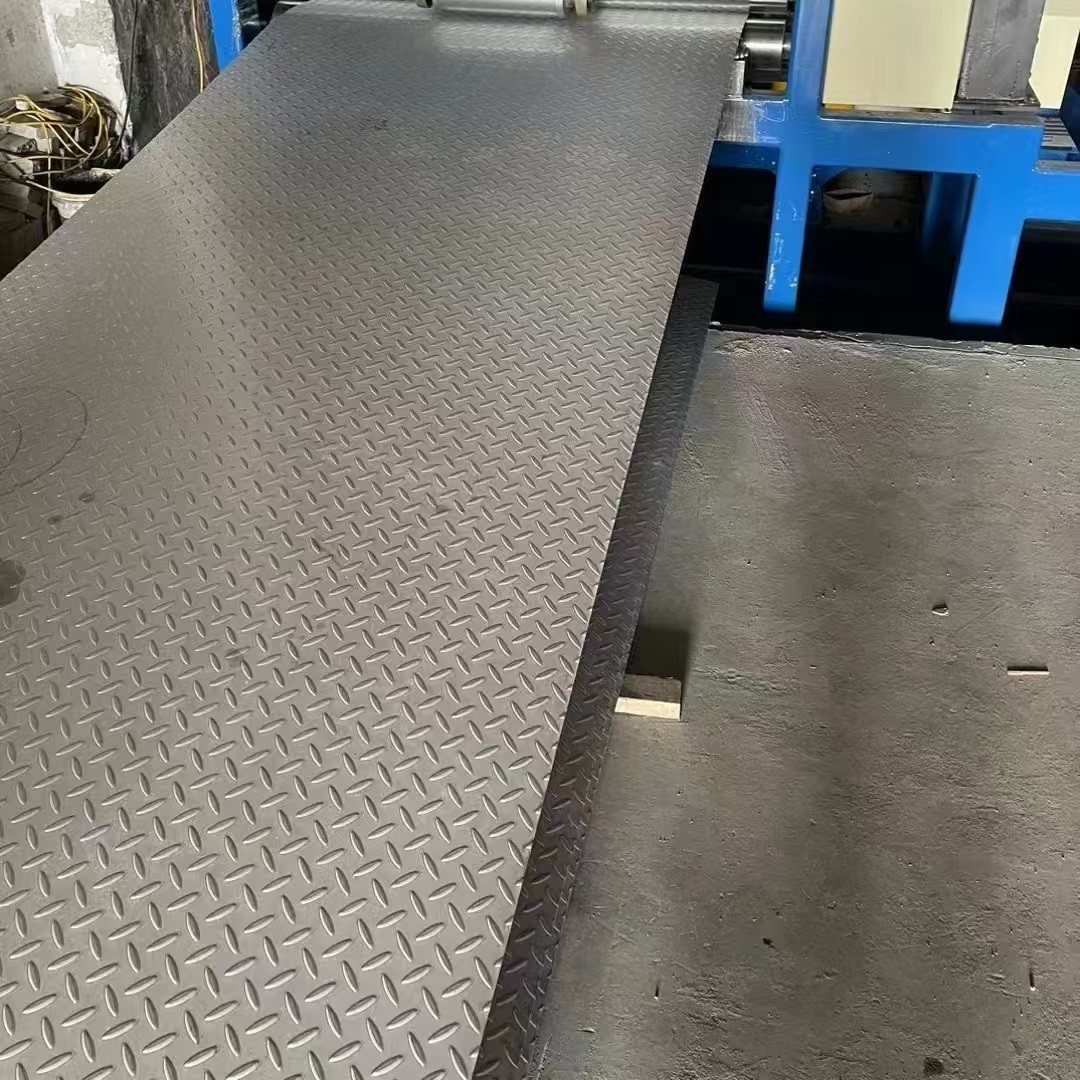

Checkered Stainless Steel Plate Hot Rolled Cold Rolled Anti-Slipping Plate
Products Specification
| Commodity | Stainless Checkered Steel Plate | |
| Material | 201 304 304L 310S 316L 321.etc | |
| Thickness | 0.5-8.0mm(2-8mm usually used) | |
| Width | 1000-2000mm(1250 and 1500mm usually used) | |
| Length | 1000-12000mm as your requirement | |
| Application | manufacturing plant, general construction, boiler plate, container plate, bridge plate | |
| Technique | hot rolled/cold rolled | |
| Pattern | tear drop, diamond, lentils form, round beans form | |
| Packing | bundle packed by steel strip, or as per request | |
| Payment Tems | T/T or L/C at sight | |
| Deliver Conditions | bulk vessel or container | |
| Deliver Time | In 5-7 days after receipt of L/C or T/T | |
Stainless steel chequered plates, also known as stainless steel chequer plates or stainless steel checker plates, are lightweight metal plates with good anti-slipping and decorative features. One side of a stainless steel chequered plate is raised regular diamonds or lines, while the other side is plane. The raised design reduces the risk of slipping, thus making stainless steel chequered plates ideal for stairs, walkways and ramps. The features of corrosion resistance and weather resistance with aesthetic surface treatment make it suitable for architectural outdoor uses
ASME SA240 304 316 Chequer Plate Chemical Standard
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Chequered 304 Plates | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — | — |
| Stainless Steel Chequered 304L Sheets | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max | — |
| Stainless Steel Chequered 304H Coil | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max | — |
| Stainless Steel Chequered 316 Foil | Min | - | - | - | 0 | - | 16.0 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316L Plates | Min | - | - | - | - | - | 16.0 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316H Sheet | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | - |
Stainless Steel Chequer Plate Mechanical Strength
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
APPLICATIONS
Uses of stainless steel chequered plate include decorative, food processing, architectural applications, residential and commercial buildings, engineering, industrial and shipbuilding.
GRADES
304 and 304L are the most commonly used grades for stainless steel checkered plates as they are less expensive, highly versatile, easily roll-formed or shaped and offer excellent corrosion resistance and weldability, while also maintaining their durability. For coastal and marine environments, grades 316 and 316L are often favoured due to their superior corrosion resistance and are particularly effective in acidic environments.
| Grades | Width | Length | Thickness |
|---|---|---|---|
| 304/304L | Up to 1500mm | Up to 3000mm | 0.5 - 8.0mm |
| 316/316L | Up to 1500mm | Up to 3000mm | 0.5-8.0mm |
Other stainless steel checker plate grades are available upon request. You can request to cut your stainless steel checker plates down to size
