EN 10204-3.1 Certificate Hastelloy C276 Round Bar / Nickel Alloy Bars Rod With Small MOQ
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | hastelloy C276 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Pipe | Grade | Hastelloy C276 |
|---|---|---|---|
| Diameter | DN6-DN400 | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | Nickel Alloy Round Bar,Small MOQ Round Bar,Nickel Alloy Hastelloy C276 Round Bar |
||
Product Description

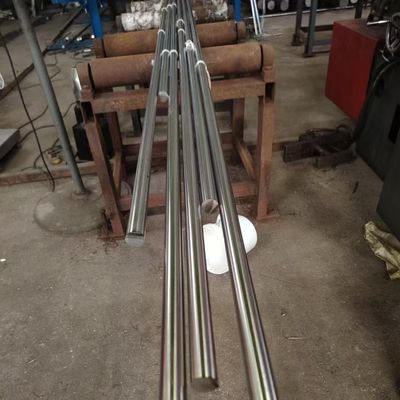

EN 10204-3.1 Certificate Hastelloy C276 Round Bar / Nickel Alloy Bars Rod With Small MOQ
Products Specification
| Specification | Hastelloy C276 Nickel Alloy Round Bar |
| Grade | Hastelloy C276 – UNS N10276 |
| ASTM B574 Hastelloy C276 Round bar size | Diameter: 10-300mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline, Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Hastelloy C276 Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |

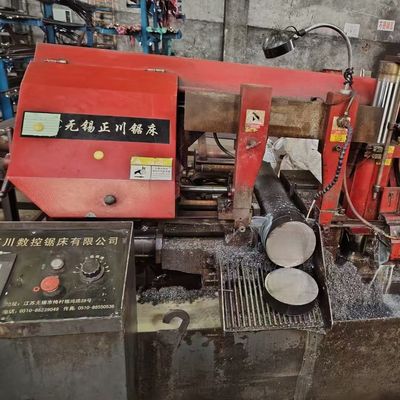

| Processing | Cutting our bars into any length as request |
| Form | Hastelloy C276 Round, Welding Rod, T-Bar, Rod, Precision Ground Bar, Channel Bar, Square, Flat Bar, Blocks, Round Rod, Hollow, Rings, Rectangle, Hex (A/F), Triangle, Threaded, Profiles, Billet, Ingot, I/H Bar, Half Round Bar, Forging etc. |
Introduction of Hastelloy C276
• The various corrosion data of the harness-c-276 alloy are typical, but cannot be used as a specification,
especially in unknown environments, materials must be tested before they can be selected.There is not
enough Cr in the harrington c-276 alloy to resist corrosion in strongly oxidized environments, such as hot
concentrated nitric acid.This kind of alloy is mainly produced in the chemical process environment,
especially in the case of mixed acid, such as the flue gas desulfurization system discharge pipe.
• Hartz alloy mechanical properties is very outstanding, it has the characteristics of high strength, high
toughness, so has certain difficulty in machining, and the strain hardening tendency is extremely strong,
when the deformation rate of 15%, about twice the 18 8 stainless steel.There is also a moderate
temperature sensitive zone in haversian alloy, and its susceptibility tends to increase with the increase
of the deformation rate.When the temperature is high, the mechanical properties and corrosion resistance
of the alloy are decreased because of the easy absorption of harmful elements.
2.Chemical composition
| C | S | Mn | P | S | Ni | Cr | Mo | Fe | Co | W | V | |
| Min | 14.5 | 15.0 | 4.0 | 3.0 | ||||||||
| Max | 0.01 | 0.08 | 1.0 | 0.04 | 0.03 | Margin | 16.5 | 17.0 | 7.0 | 2.5 | 4.5 | 0.35 |
3.Physical property
| Density(g/cm3) | 8.9 |
| Specific heat(J/kg·k) | 436 |
| Specific resistance(μΩ·cm) | 130.0 |
| pyroconductivity(W/m·k) | 10.8 |
| thermal diffusivity(m²/S) | 2.8 X 1.-6 |
| Average thermal expansion coefficient(10-6/℃) | 12.2-13.6 |
| longitudinal modulus of elasticity(Mpa) | 21.1 X 104 |
| modulus of rigidity (Mpa) | 80.8 X 104 |
| ferromagnetism | No |
| melting point | 1325-1369 |
4.Character
The key factors influencing corrosion resistance of this material are the control of impurity S,P, gas
content O,N and key elements C,Si, etc.It depends on the control of production process, such as the
choice of heating temperature and heat preservation time of forging, such as the guarantee of forging
ratio, such as the guarantee of solid solution treatment, etc.
