AISI 304 Smooth Backside Anti-Slip stainless steel checkered plate From TISCO

AISI 304 Stainless Steel Checkered Plate Smooth Backside Stainless Steel Anti-Slip Plate from TISCO

Stainless steel chequered plates, also known as stainless steel chequer plates or stainless steel checker plates, are lightweight metal plates with good anti-slipping and decorative features. One side of a stainless steel chequered plate is raised regular diamonds or lines, while the other side is plane. The raised design reduces the risk of slipping, thus making stainless steel chequered plates ideal for stairs, walkways and ramps. The features of corrosion resistance and weather resistance with aesthetic surface treatment make it suitable for architectural outdoor uses.

GRADES

304 and 304L are the most commonly used grades for stainless steel checkered plates as they are less expensive, highly versatile, easily roll-formed or shaped and offer excellent corrosion resistance and weldability, while also maintaining their durability. For coastal and marine environments, grades 316 and 316L are often favoured due to their superior corrosion resistance and are particularly effective in acidic environments.

Other stainless steel checker plate grades are available upon request. You can request to cut your stainless steel checker plates down to size.

Specification of Stainless Steel Tread Plate

• The Grades of Stainless Steel Checker Plate Steel:201, 202, 304, 304L, 316L, 310S, 410, 410S, 430,316 stainless steel diamond plate, etc.
• The surface finish of stainless chequer plate:1 for hot rolled stainless steel chequer plate, 2B for cold rolled checker plate steel, No.4, BA, HL, MIRROR, etc.

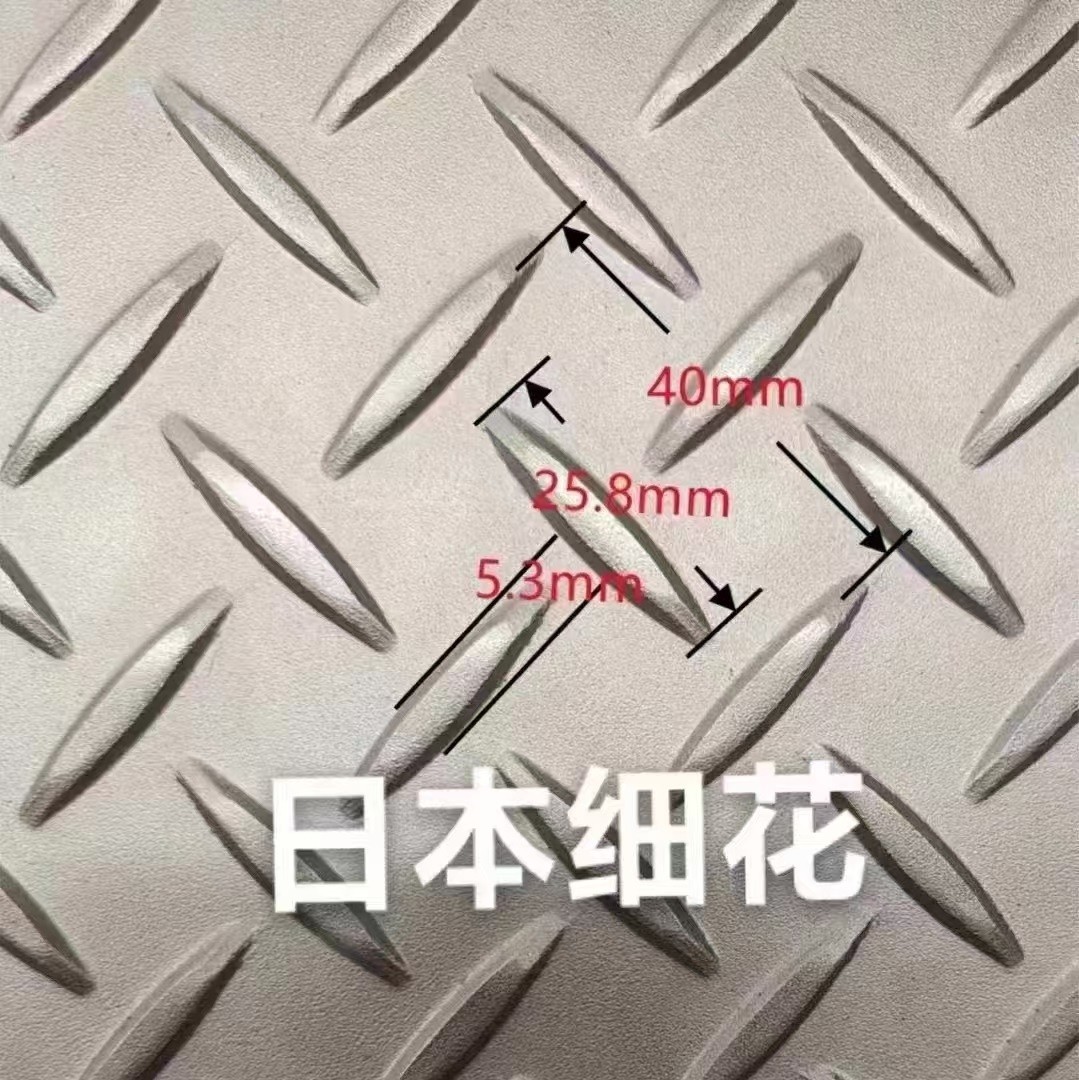

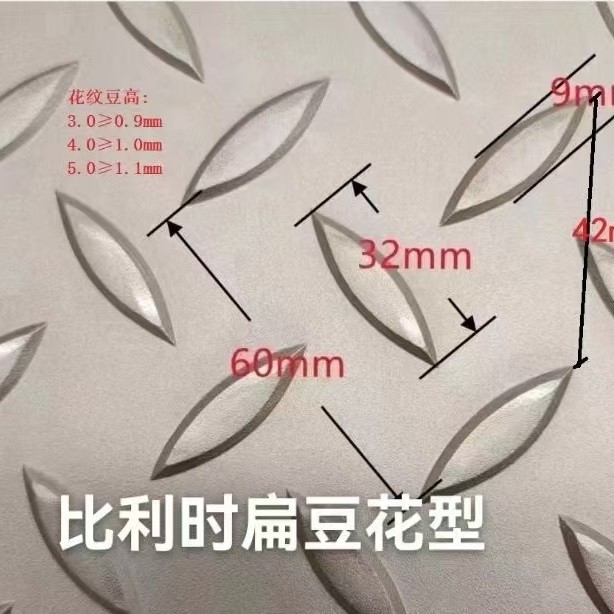

• Type: Diamond pattern, Lentil pattern, 5 bars pattern, T pattern, etc.

• Stainless Chequer Plate Thickness:3mm – 3mm for Cold Roll, 3mm – 10mm checker plate steel/12.5mm for Hot Roll.Can be customized according to customer requirements.
• Width:10mm – 600mm for strip ; 600-2000mm for sheet.Can be customized according to customer requirements.
• Length:2000mm – 6000mm, Can be customized according to customer requirements.

Feature of Stainless Steel Checker Plate

• High-temperature resistance.
• Corrosion resistance.
• Alkaline resistance.
• Anti-rust.
• Anti-skid.
• Durable and long life.
• Minimum maintenance.

Application of Stainless Chequer Plate

• Because of its surface rib bar, the non-slip effect can be used as the floor, factory escalator, working platform pedals, ship deck, car floor, and so on. The beautiful appearance of the stainless steel tread plate, non-slip, strengthens the performance, saving steel, and many other advantages, in transportation, construction, decoration, equipment around the floor, machinery, shipbuilding, and other fields have a wide range of applications. In general, with the use of squares on the mechanical properties of the board, mechanical performance is not high, so the quality of the main pattern is the pattern into flower rate, pattern height, and pattern height difference. Currently available on the market from the thickness of 1.0-6mm ranging from the width of the common1219 1250,1500 mm.
• Stainless checker plate steel is used in the workshop, large equipment, or ship walkways and stair pedals, and the surface of the diamond-shaped or lenticular pattern of steel. The size of the plate is based on the basic thickness (excluding the thickness of the rib).
• Pattern board height not less than 0.2 times the thickness of the substrate; intact pattern, the pattern allows a height of not more than half of the thickness tolerance of the local slight burr.

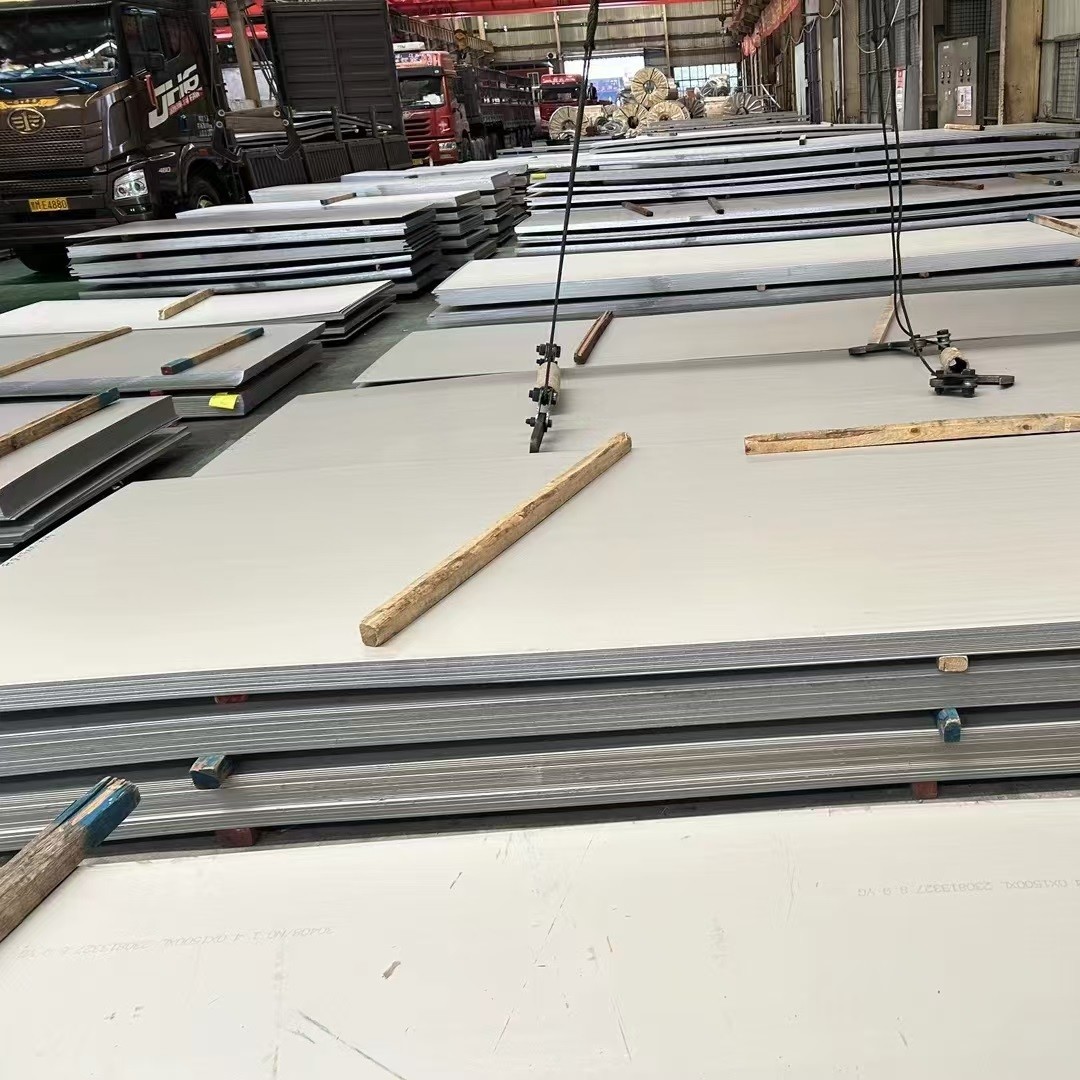

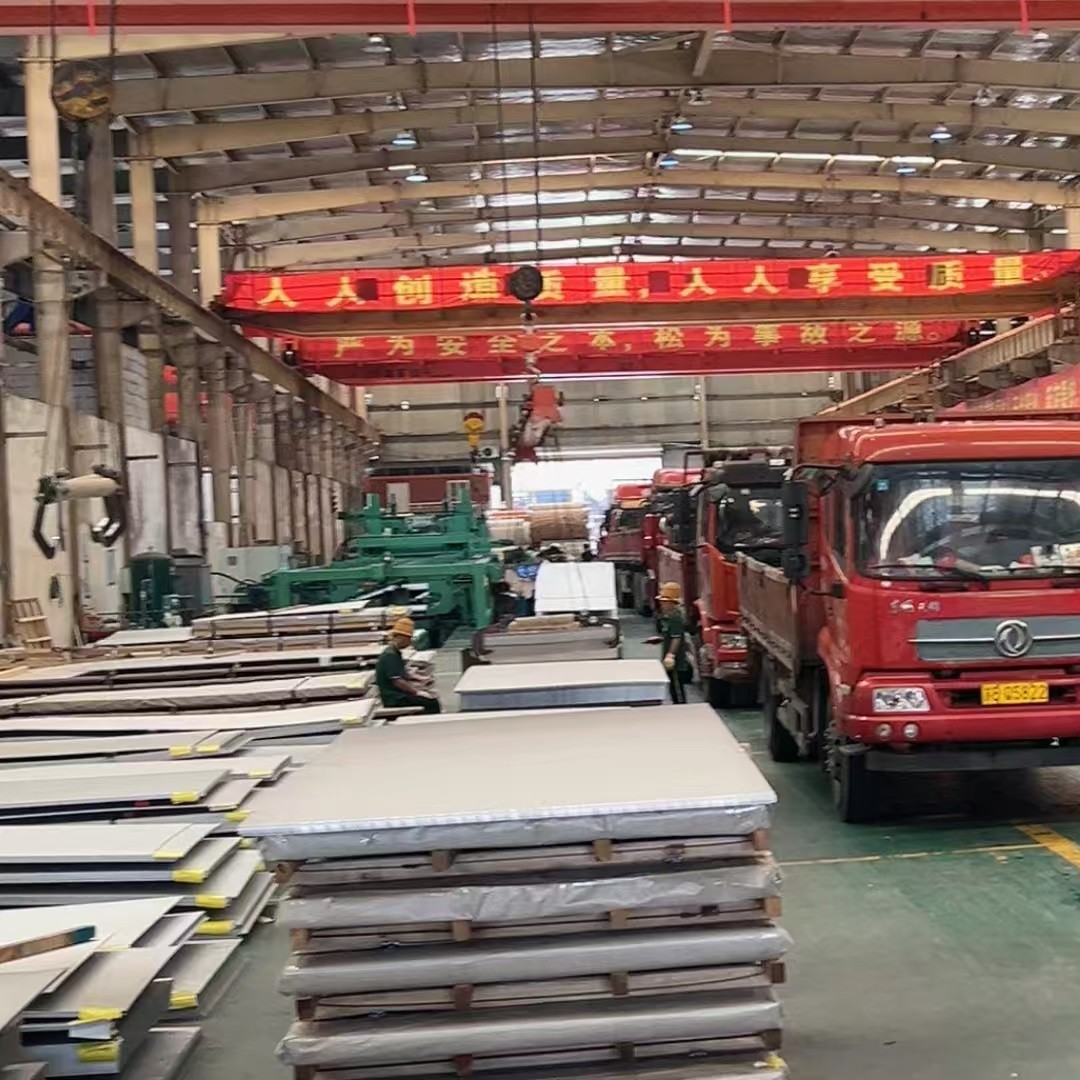

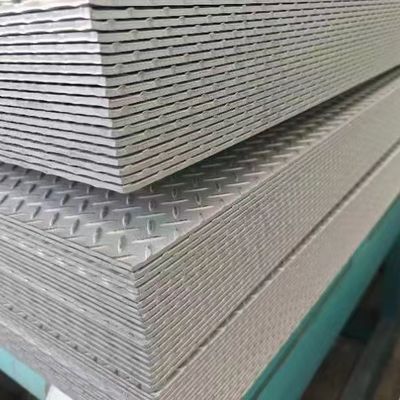

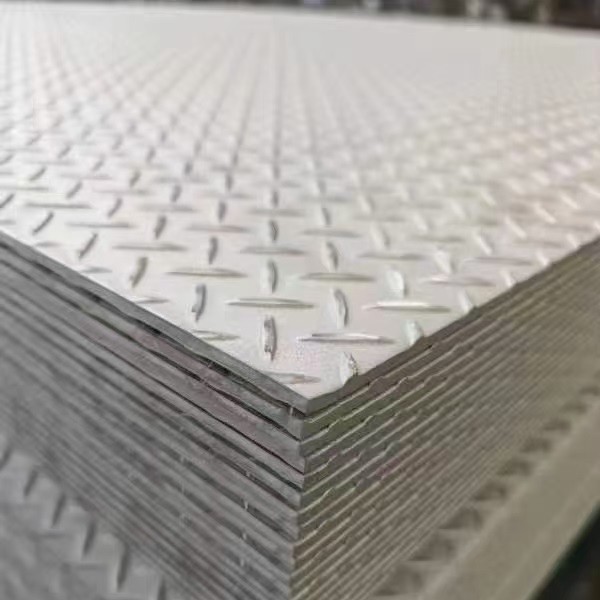

Products Show
