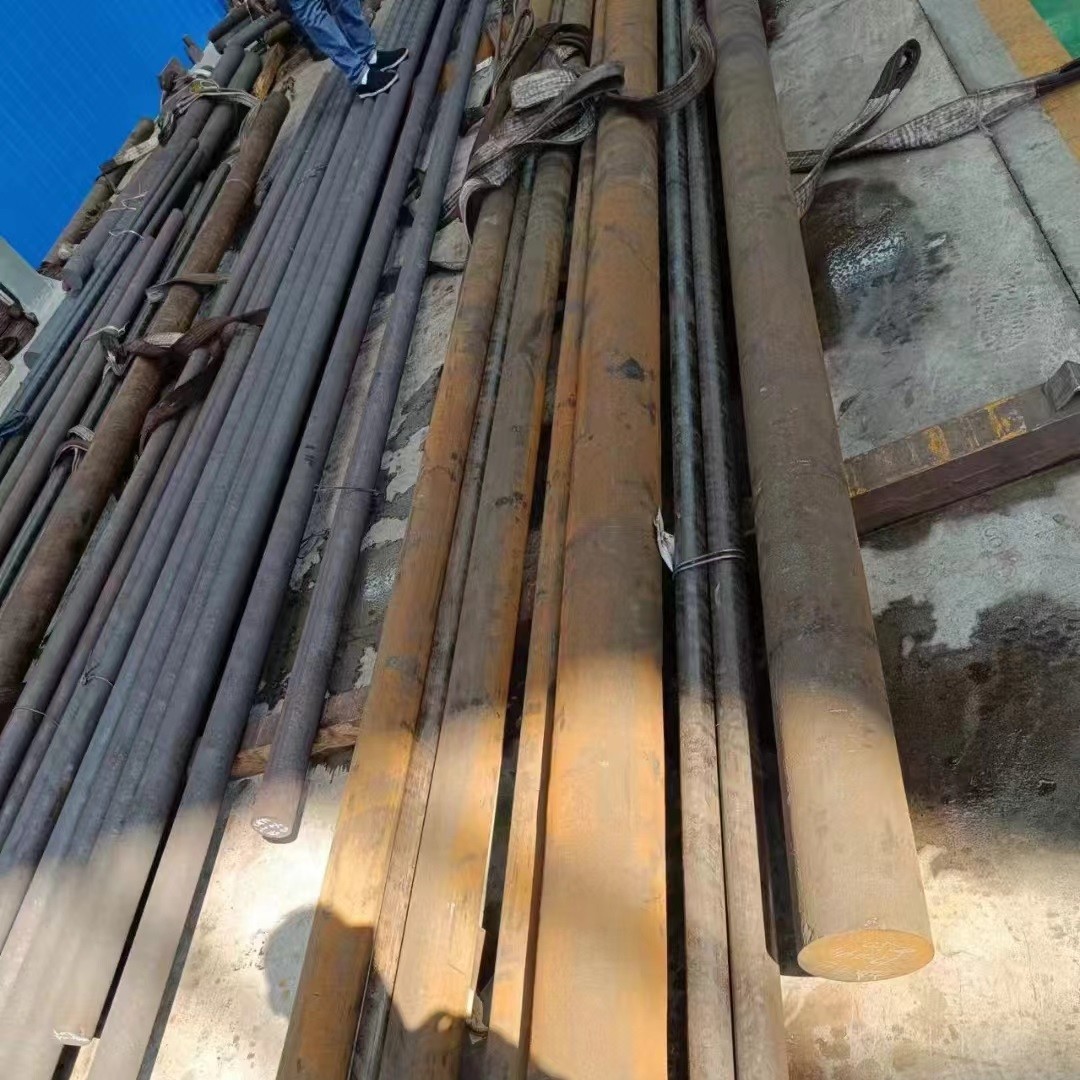

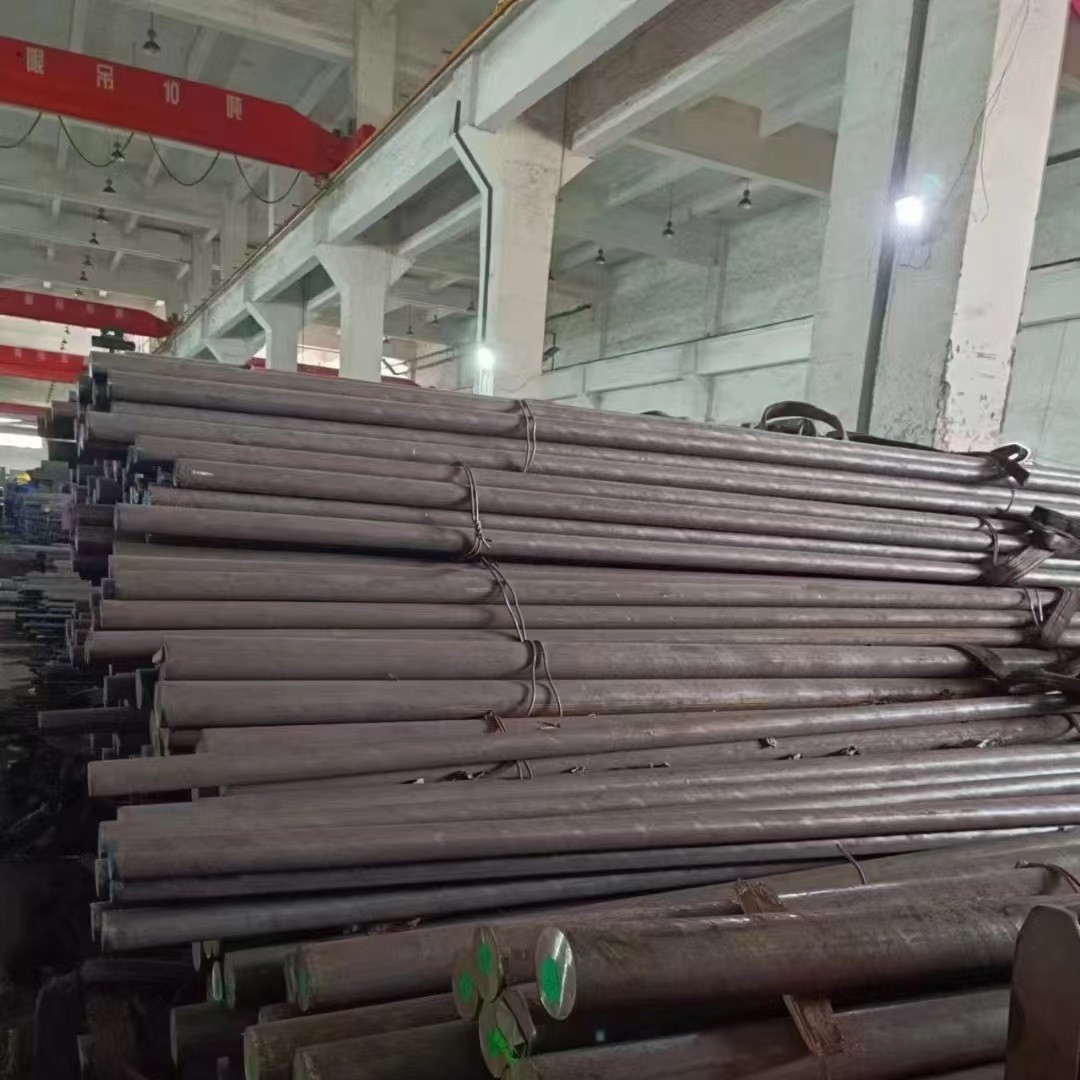

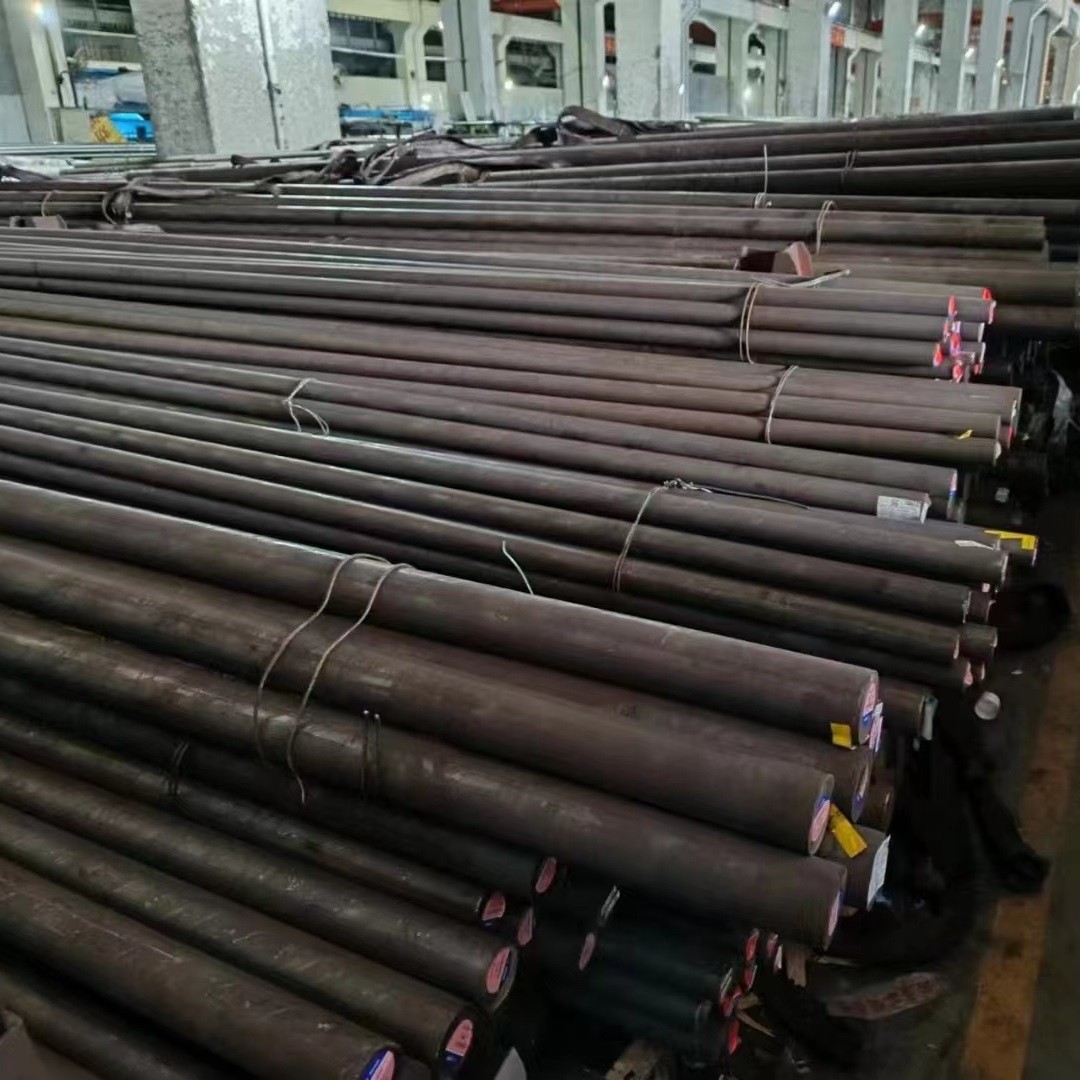

GH4169 Nickel Alloy Round Bar High Temperature Resistant Alloy GH169 Hot Rolled
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GH4169 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | GH4169 |
|---|---|---|---|
| Diameter | 6 - 300mm | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | Hot Rolled Nickel Alloy Round Bar,GH169 Nickel Alloy Round Bar,High Temperature Nickel Alloy Round Bar |
||
Product Description
GH4169 Nickel Alloy Round Bar High Temperature Resistant Alloy GH169 Hot Rolled
| Form | Nickel Alloy Bars |
| Grade | GH4169 |
| Outer Diameter | 6mm-300mm or according to customer’s requirement |
| Length | custom cutting any length as request |
| Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
| Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Other Grade |
Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
| Price Item | EXW FOB CFR CIF |
| Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
| Delivery Time | It depends on your bars order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks |
| Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
| Main Markets | Europe, North America, Middle East, Southeast Asia |
| Metal Test | High or low temperature impact test, metallographic analysis |
| Chemical Analysis | As nickel alloy 718 bars standard |
About GH4169 Alloy
GH4169 is a Ni-Cr-Fe based precipitation hardening deformation superalloy, long-term use temperature range -253°C ~ 650°C, short-term use temperature up to 800°C. The alloy has high strength below 650°C and has good fatigue, radiation, oxidation and corrosion resistance, as well as good processability, weldability and long-term structural stability. Suitable for the production of turbine discs, rings, blades, shafts, fasteners and elastic components, plate structural parts, casings, etc. in aviation, aerospace, nuclear energy and petrochemical industries. The main products are hot rolled and forged bars, cold drawn bars, plates and strips, wire materials, tubes, rings and forgings.
Alloy composition is divided into ordinary and high quality two categories, high quality GH4169 alloy carbon, niobium, sulfur and gas content control is more strict, mainly used to manufacture all kinds of rotating parts; The production process is divided into three categories: standard, high strength and direct aging, of which high strength and direct aging process is used for high-quality GH4169 alloy forgings, the hot deformation temperature is reduced in turn, the average grain size of the forgings is refined in turn, and the strength is increased in turn, which can meet the application requirements of different rotating parts in aero engines.
Chemical Composition of GH4169 Alloy
| Element | C | Cr | Ni | Co | Mo | Al | Ti | Fe | Nb |
| Standand range | ≤0. 08 | 17. 00 〜21. 00 | 50. 00〜55. 00 | ≤1.00 | 2. 80 〜3. 30 | 0. 20—0. 80 | 0. 65 〜1.15 | 余 | 4. 75〜5. 50 |
| /% Our range | 0. 02—0. 06 | 17. 00〜21. 00 | 50. 00〜55. 00 | ≤1.00 | 2. 80—3. 30 | 0. 20—0. 80 | 0. 65 〜1.15 | 余 | 5. 00〜5. 50 |
| Element | B | Mg | Mn | Si | P | S | Cu | Ca | Bi |
| Standard range | ≤0. 006 | ≤0.010 | VO. 35 | WO. 35 | WO. 015 | ≤0. 015 | WO. 300 | — | — |
| /% our range | ≤0. 006 | ≤0. 005 | VO. 35 | ≤0. 35 | ≤0.015 | ≤0. 015 | ≤0. 30 | MO. 005 | ≤0. 00003 |
Application of GH4169 Alloy
GH4169 alloy has been used in the manufacture of turbine discs, rings, casings, shafts, blades, fasteners, elastic components, gas conduits, sealing components and welded structural parts of aeroengines. Manufacture turbine rotor and other components of liquid hydrogen and liquid oxygen rocket engines; Manufacture of various elastic elements and frames for nuclear energy industry applications; Manufacture a wide range of parts for applications in the petroleum and chemical industries. The batch production and use are in good condition.
Nitrogen cooling process can be used to reduce niobium segregation effectively during vacuum consumable remelting. Using jet forming process to produce ring parts can reduce production cost and shorten production cycle; The use of superplastic forming process can expand the production range of products.
