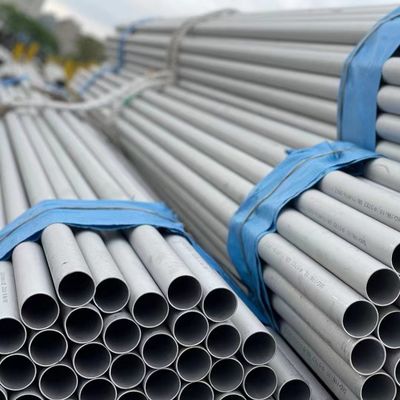

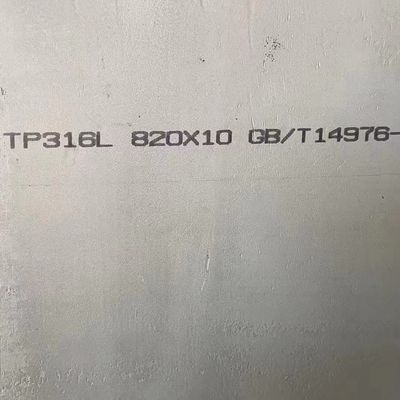

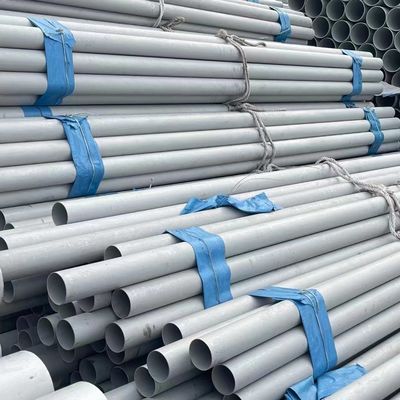

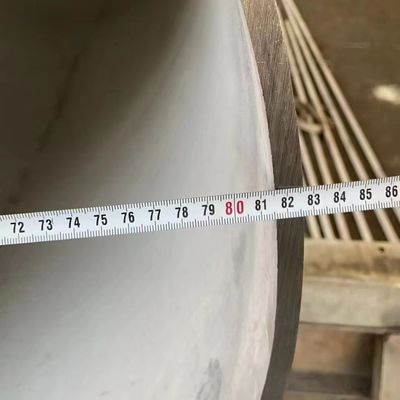

Large Diameter TP316L Stainless Steel Pipe Tube DN200 - DN800 EN 1.4404 SS Tube
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | TP316L |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | TP316L |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | DN200 Stainless Steel Pipe,EN 1.4404 Stainless Steel Pipe,DN800 Stainless Steel Pipe |
||
Product Description
Hot Rolled Pickled Finishing SS Pipe ASTM A312 A213 TP316L Stainless Steel Pipe Tube
| Product Name | Stainless Steel Pipe Ss Pipe |
| Fabrication Standard | ASTM A213/269/312/789 |
| Material Grade | TP304 TP316 TP310S SS32750 TP321 TP347L 2507 S32205 254SMo 904L.etc |
| Out Diameter | 1/8" - 24" |
| Wall Thickness | 1.25mm - 80mm |
| Length | <= 18 Mtr |
| Surface | anealling and pickles surface, polishing |
| Package | by piece, in bundles, with external pvc wrapped, wood crated |
| Minimum Order Quantiy | 1 Metric Tons |
| Our Advantage | 1.regular sizes in stock over 2000 tons for immediate delivery |
| 2.small quantity with factory rate | |
| 3.quality certificate as per EN10204 3.1b issued by manufacturer | |
| 4.expert technical and export/import document consultant and support | |
| 5.on-time response by email, skype, website and online messages |
ASTM A312 TP 316l Welded Pipe Physical Properties
| Grade | Thermal Conductivity (W/m.K) | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| at 1000C | at 5000C | 0-1000C | 0-3150C | 0-5380C | |||||
| ASTM A312 TP316L | 16.3 | 21.5 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 500 | 740 |
ASME SA312 Grade 316L EFW Pipes Chemical Composition
Looking for ASTM A312 TP316L Stainless Steel Pipe material for High temperature applications? ASME Sa312 TP 316l Pipe available in 3/4"-24" size range
| Grade | Carbon | Sulfur | Manganese | Phosphorus | Silicon | Nickel | Chromium | Molybdenum |
| ASTM A312 TP316L | 0.035 | 0.03 | 2 | 0.045 | 1 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
ASME SA312 Grade 316L Seamless Pipe Mechanical Properties
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | º F(º C) Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| ASTM A312 TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
Equivalent of ASTM A312 TP316L Stainless Steel Pipe
| Grade | Unified Numbering System | Old British | Euronorm | Swedish SS | Japanese Industrial Standards | ||
| British Standards | European Standards | No | Name | ||||
| ASTM A312 TP316L | S31603 | 304S11 | 58E | 1.4436 | X3CrNiMo17-13-3 | 2348 | SUS 316L |
ASME SA312 TP 316L Pipe Dimension Tolerance
| Nominal wall | Wall Thickness | Outer Diameter Size | Length | Outside Diameter |
| 0.065 (1.65) | +/-10% | 2-1/2 (63.5) | +1/8 (3.18)/-0 | +/-0.010 (0.25) |
| 0.065 (1.65) | +/-10% | 3/4 (19.1) | +1/8 (3.18)/-0 | +/-0.005 (0.13) |
| 0.065 (1.65) | +/-10% | 1 (25.4) | +1/8 (3.18)/-0 | +/-0.005 (0.13) |
| 0.083 (2.11) | +/-10% | 4 (101.6) | +1/8 (3.18)/-0 | +/-0.015 (0.38) |
| 0.065 (1.65) | +/-10% | 1/2 (12.7) | +1/8 (3.18)/-0 | +/-0.005 (0.13) |
| 0.065 (1.65) | +/-10% | 1-1/2 (38.1) | +1/8 (3.18)/-0 | +/-0.008 (0.20) |
| 0.065 (1.65) | +/-10% | 2 (50.8) | +1/8 (3.18)/-0 | +/-0.008 (0.20) |
| 0.065 (1.65) | +/-10% | 3 (76.2) | +1/8 (3.18)/-0 | +/-0.010 (0.25) |
| 0.109 (2.77) | +/-10% | 6 (152.4) | +3/16 (4.76)/-0 | +/-0.030 (0.76) |
| 0.109 (2.77) | +/-10% | 8 (203.2) | +3/16 (4.76)/-0 | +/-0.030 (0.76) |
Pressure Rating of ASTM A312 TP316L Cold Draw Seamless Pipes
| Outer Diameter in Inch | Wall Thickness in inches | Minimum Tensile Strength (PSI) | Working Pressure | Minimum Yield Strength (PSI) | Theoretical Burst Pressure | Theoretical Yield Point | Collapse Pressure |
|---|---|---|---|---|---|---|---|
| 0.250 | 0.020 | 75,000 | 3,571 | 30,000 | 14,286 | 5,714 | 4,416 |
| 0.250 | 0.028 | 75,000 | 5,412 | 30,000 | 21,649 | 8,660 | 5,967 |
| 0.250 | 0.035 | 75,000 | 7,292 | 30,000 | 29,167 | 11,667 | 7,224 |
| 0.250 | 0.049 | 75,000 | 12,089 | 30,000 | 48,355 | 19,342 | 9,455 |
| 0.250 | 0.065 | 75,000 | 20,313 | 30,000 | 81,250 | 32,500 | 11,544 |
| 0.375 | 0.020 | 75,000 | 2,239 | 30,000 | 8,955 | 3,582 | 3,029 |
| 0.375 | 0.028 | 75,000 | 3,292 | 30,000 | 13,166 | 5,266 | 4,145 |
| 0.375 | 0.035 | 75,000 | 4,303 | 30,000 | 17,213 | 6,885 | 5,077 |
| 0.375 | 0.049 | 75,000 | 6,634 | 30,000 | 26,534 | 10,614 | 6,816 |
| 0.375 | 0.065 | 75,000 | 9,949 | 30,000 | 39,796 | 15,918 | 8,597 |
| 0.500 | 0.020 | 75,000 | 1,630 | 30,000 | 6,522 | 2,609 | 2,304 |
| 0.500 | 0.028 | 75,000 | 2,365 | 30,000 | 9,459 | 3,784 | 3,172 |
| 0.500 | 0.035 | 75,000 | 3,052 | 30,000 | 12,209 | 4,884 | 3,906 |
| 0.500 | 0.049 | 75,000 | 4,571 | 30,000 | 18,284 | 7,313 | 5,304 |
| 0.500 | 0.065 | 75,000 | 6,588 | 30,000 | 26,351 | 10,541 | 6,786 |
| 0.500 | 0.083 | 75,000 | 9,319 | 30,000 | 37,275 | 14,910 | 8,307 |
| 0.625 | 0.020 | 75,000 | 1,282 | 30,000 | 5,128 | 2,051 | 1,859 |
| 0.625 | 0.028 | 75,000 | 1,845 | 30,000 | 7,381 | 2,953 | 2,568 |
| 0.625 | 0.035 | 75,000 | 2,365 | 30,000 | 9,459 | 3,784 | 3,172 |
| 0.625 | 0.049 | 75,000 | 3,487 | 30,000 | 13,947 | 5,579 | 4,335 |
| 0.625 | 0.065 | 75,000 | 4,924 | 30,000 | 19,697 | 7,879 | 5,591 |
| 0.625 | 0.083 | 75,000 | 6,781 | 30,000 | 27,124 | 10,850 | 6,910 |
| 0.625 | 0.095 | 75,000 | 8,190 | 30,000 | 32,759 | 13,103 | 7,734 |
| 0.625 | 0.109 | 75,000 | 10,043 | 30,000 | 40,172 | 16,069 | 8,639 |
| 0.750 | 0.028 | 75,000 | 1,513 | 30,000 | 6,052 | 2,421 | 2,156 |
| 0.750 | 0.035 | 75,000 | 1,930 | 30,000 | 7,721 | 3,088 | 2,669 |
| 0.750 | 0.049 | 75,000 | 2,818 | 30,000 | 11,273 | 4,509 | 3,664 |
| 0.750 | 0.065 | 75,000 | 3,931 | 30,000 | 15,726 | 6,290 | 4,749 |
| 0.750 | 0.083 | 75,000 | 5,330 | 30,000 | 21,318 | 8,527 | 5,905 |
| 0.750 | 0.095 | 75,000 | 6,362 | 30,000 | 25,446 | 10,179 | 6,637 |
| 0.750 | 0.109 | 75,000 | 7,683 | 30,000 | 30,733 | 12,293 | 7,453 |
| 0.750 | 0.120 | 75,000 | 8,824 | 30,000 | 35,294 | 14,118 | 8,064 |
| 0.875 | 0.020 | 75,000 | 898 | 30,000 | 3,593 | 1,437 | 1,340 |
| 0.875 | 0.028 | 75,000 | 1,282 | 30,000 | 5,128 | 2,051 | 1,859 |
| 0.875 | 0.035 | 75,000 | 1,630 | 30,000 | 6,522 | 2,609 | 2,304 |
| 0.875 | 0.049 | 75,000 | 2,365 | 30,000 | 9,459 | 3,784 | 3,172 |
| 0.875 | 0.065 | 75,000 | 3,272 | 30,000 | 13,087 | 5,235 | 4,126 |
| 0.875 | 0.083 | 75,000 | 4,390 | 30,000 | 17,560 | 7,024 | 5,152 |
| 0.875 | 0.095 | 75,000 | 5,201 | 30,000 | 20,803 | 8,321 | 5,807 |
| 0.875 | 0.109 | 75,000 | 6,221 | 30,000 | 24,886 | 9,954 | 6,543 |
| 0.875 | 0.120 | 75,000 | 7,087 | 30,000 | 28,346 | 11,339 | 7,100 |
| 1.000 | 0.028 | 75,000 | 1,112 | 30,000 | 4,449 | 1,780 | 1,633 |
| 1.000 | 0.035 | 75,000 | 1,411 | 30,000 | 5,645 | 2,258 | 2,027 |
| 1.000 | 0.049 | 75,000 | 2,037 | 30,000 | 8,149 | 3,259 | 2,796 |
| 1.000 | 0.065 | 75,000 | 2,802 | 30,000 | 11,207 | 4,483 | 3,647 |
| 1.000 | 0.083 | 75,000 | 3,732 | 30,000 | 14,928 | 5,971 | 4,567 |
| 1.000 | 0.095 | 75,000 | 4,398 | 30,000 | 17,593 | 7,037 | 5,159 |
| 1.000 | 0.109 | 75,000 | 5,227 | 30,000 | 20,908 | 8,363 | 5,827 |
| 1.000 | 0.120 | 75,000 | 5,921 | 30,000 | 23,684 | 9,474 | 6,336 |
| 1.000 | 0.134 | 75,000 | 6,865 | 30,000 | 27,459 | 10,984 | 6,963 |
| 1.250 | 0.035 | 75,000 | 1,112 | 30,000 | 4,449 | 1,780 | 1,633 |
| 1.250 | 0.049 | 75,000 | 1,595 | 30,000 | 6,380 | 2,552 | 2,260 |
| 1.250 | 0.065 | 75,000 | 2,176 | 30,000 | 8,705 | 3,482 | 2,958 |
| 1.250 | 0.083 | 75,000 | 2,871 | 30,000 | 11,485 | 4,594 | 3,719 |
| 1.250 | 0.095 | 75,000 | 3,361 | 30,000 | 13,443 | 5,377 | 4,213 |
| 1.250 | 0.109 | 75,000 | 3,961 | 30,000 | 15,843 | 6,337 | 4,776 |
| 1.250 | 0.120 | 75,000 | 4,455 | 30,000 | 17,822 | 7,129 | 5,207 |
| 1.250 | 0.134 | 75,000 | 5,117 | 30,000 | 20,468 | 8,187 | 5,742 |
| 1.500 | 0.035 | 75,000 | 918 | 30,000 | 3,671 | 1,469 | 1,367 |
| 1.500 | 0.049 | 75,000 | 1,311 | 30,000 | 5,243 | 2,097 | 1,896 |
| 1.500 | 0.065 | 75,000 | 1,779 | 30,000 | 7,117 | 2,847 | 2,487 |
| 1.500 | 0.083 | 75,000 | 2,333 | 30,000 | 9,333 | 3,733 | 3,136 |
| 1.500 | 0.095 | 75,000 | 2,719 | 30,000 | 10,878 | 4,351 | 3,559 |
| 1.500 | 0.109 | 75,000 | 3,188 | 30,000 | 12,754 | 5,101 | 4,043 |
| 1.500 | 0.120 | 75,000 | 3,571 | 30,000 | 14,286 | 5,714 | 4,416 |
| 1.500 | 0.134 | 75,000 | 4,079 | 30,000 | 16,315 | 6,526 | 4,881 |
| 1.500 | 0.148 | 75,000 | 4,610 | 30,000 | 18,439 | 7,375 | 5,336 |
| 1.750 | 0.035 | 75,000 | 781 | 30,000 | 3,125 | 1,250 | 1,176 |
| 1.750 | 0.049 | 75,000 | 966 | 30,000 | 3,864 | 1,546 | 1,434 |
| 1.750 | 0.065 | 75,000 | 1,505 | 30,000 | 6,019 | 2,407 | 2,146 |
| 1.750 | 0.083 | 75,000 | 1,965 | 30,000 | 7,860 | 3,144 | 2,711 |
| 1.750 | 0.095 | 75,000 | 2,284 | 30,000 | 9,135 | 3,654 | 3,080 |
| 1.750 | 0.109 | 75,000 | 2,668 | 30,000 | 10,672 | 4,270 | 3,504 |
| 1.750 | 0.120 | 75,000 | 2,980 | 30,000 | 11,921 | 4,768 | 3,832 |
| 1.750 | 0.134 | 75,000 | 3,391 | 30,000 | 13,563 | 5,425 | 4,242 |
| 1.750 | 0.148 | 75,000 | 3,817 | 30,000 | 15,268 | 6,107 | 4,645 |
| 1.750 | 0.165 | 75,000 | 4,357 | 30,000 | 17,430 | 6,972 | 5,124 |
| 2.000 | 0.035 | 75,000 | 680 | 30,000 | 2,720 | 1,088 | 1,032 |
| 2.000 | 0.049 | 75,000 | 966 | 30,000 | 3,864 | 1,546 | 1,434 |
| 2.000 | 0.065 | 75,000 | 1,303 | 30,000 | 5,214 | 2,086 | 1,887 |
| 2.000 | 0.083 | 75,000 | 1,697 | 30,000 | 6,788 | 2,715 | 2,387 |
| 2.000 | 0.095 | 75,000 | 1,968 | 30,000 | 7,873 | 3,149 | 2,715 |
| 2.000 | 0.109 | 75,000 | 2,294 | 30,000 | 9,175 | 3,670 | 3,092 |
| 2.000 | 0.120 | 75,000 | 2,557 | 30,000 | 10,227 | 4,091 | 3,384 |
| 2.000 | 0.134 | 75,000 | 2,901 | 30,000 | 11,605 | 4,642 | 3,751 |
| 2.000 | 0.148 | 75,000 | 3,257 | 30,000 | 13,028 | 5,211 | 4,111 |
| 2.000 | 0.165 | 75,000 | 3,705 | 30,000 | 14,820 | 5,928 | 4,542 |
