Hot Rolled Steel Round Bar / Alloy Steel Bar OD10 - 450mm Steel Rod
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Steel |
| Minimum Order Quantity | 1 Ton |
| Price | 600-885USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 450mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | Hot Rolled Alloy Steel Round Bar,OD10 450mm Steel Round Bar |
||
Product Description

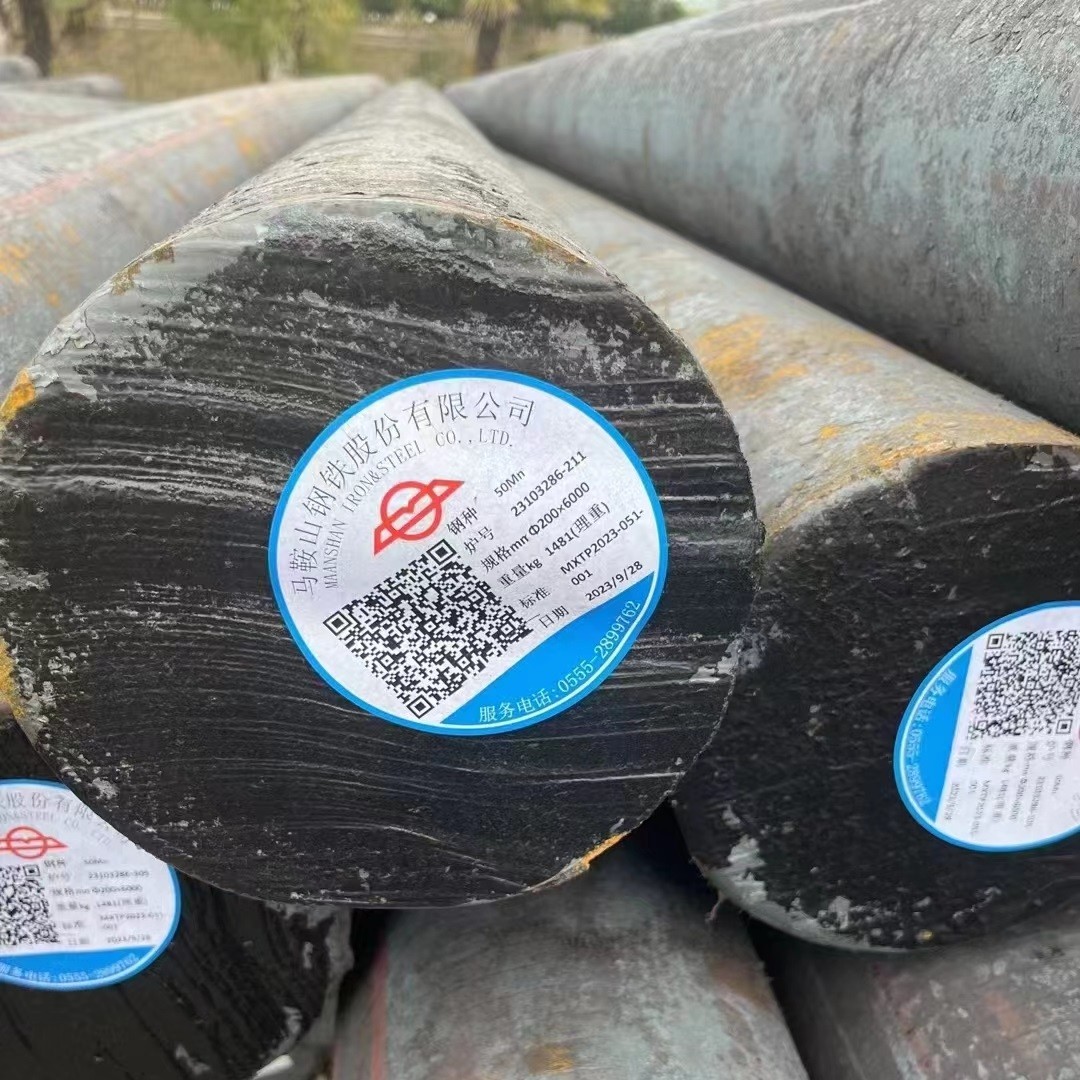

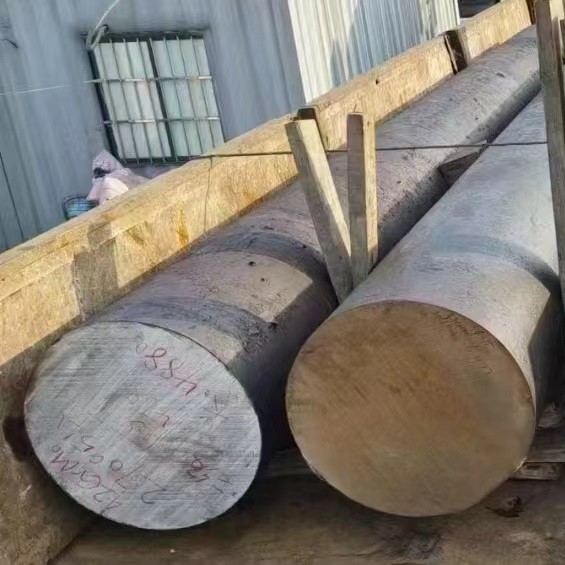

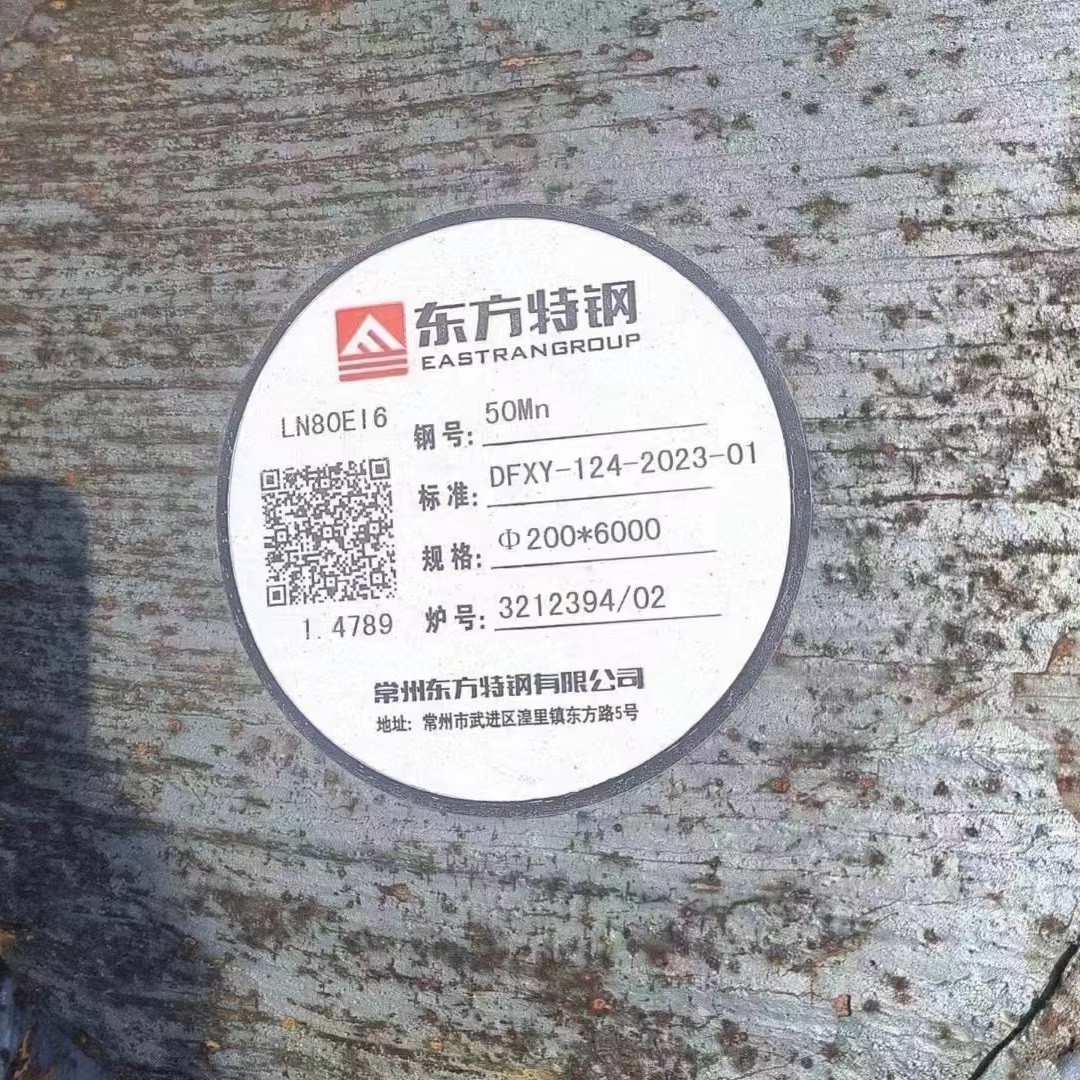

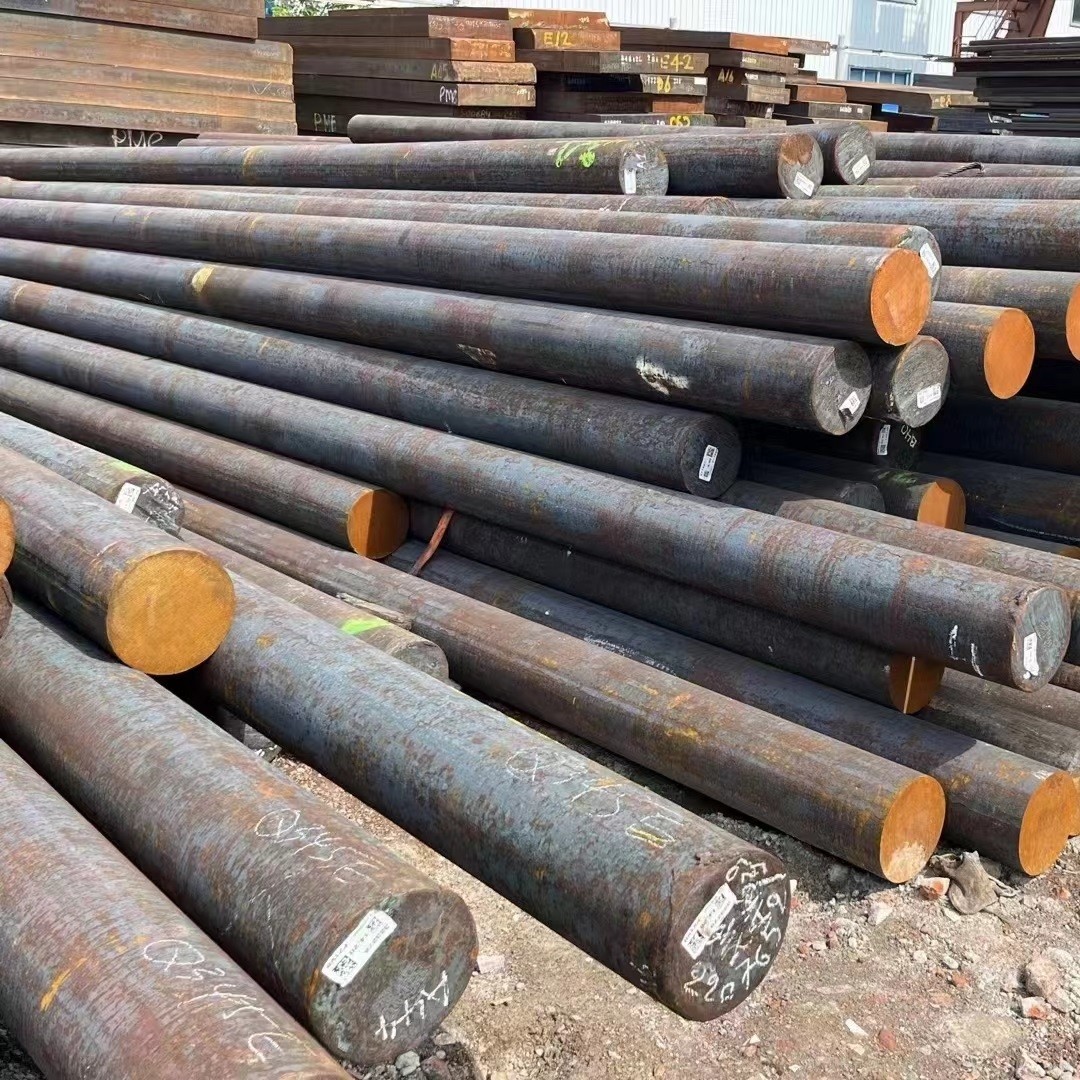

Hot Rolled Steel Round Bar / Alloy Steel Bar OD10 - 450mm Steel Rod
Products Specification
| Products Name |
Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Manufacturing Process for Round Bars
The round bars are made from ingots and are processed after giving required reduction ratio and discarding hot top and bottom for homogeneity. They are either processed by hot rolling or hot forging. These bars are further heat treated by
- Annealing
- Normalizing
- Stress Relieving
- Quenching and Tempering
- Spheroidizing Annealing
They are also offered in bright condition by
- Peeling and Reeling (for upto 120mm for rolled)
- Cold drawing (for upto 65mm)
- Proof machining (greater than 120mm)
- Finish CNC machining
They are also offered in
- Cut to length
- Multiple lengths
Quality Check of Round Bars
Following checks are conducted in round bars and reported in the TEST CERTIFICATE as per customer requirement
- Surface inspection (Magnetic Particle Inspection) is carried out of each bar end to end
- Positive Material Identification using XRF to certify in process chemistry of each bar
- 100%-dimensional verification using calibrated Vernier’s and Go No-Go gauges
- Step down testing
- Upset forging test
- NMIR (Nonmetallic inclusion rating)
- Macrostructure testing
- Microstructure phase analysis
- Grain Size
- Ultrasonic Testing for internal defects
- Radioactivity test
- Gas analysis (O, N, H)
Application and End-Use
Various companies use our steel round bars for making final products in industries such as Oil and Gas, Power, Mining, Engineering Goods, Fasteners, Railways, Defence, Load cells, Toolings, etc
Minimum Order Quantity for Round Bars
Our batch size is a minimum of 5MT, so for common grades, we can do two nearby sizes in a total of 8.5MT, and in case of special grades, we require a single size minimum of 8.5MT.
Steel Round Bar in Different Grades and International Specifications
We are manufacturing bars in various grades and exporting them worldwide. We are a leading exporter of economic and best quality bars to the Czech Republic, UK, Israel, etc.
We manufacture the following popularly used grades:
- EN19, EN24, EN25, EN26, EN30, EN31, EN36C, EN39, EN 40, EN41B, EN42, EN9, EN14A, EN15, EN16, EN18, EN47, EN100, EN351, EN353, EN354, EN355, C22E, C25E, C30, C35E, C45, CK45, C50, C55, C60, S45C, S235J2, S275J2, S355J2, ST52.3, C35E, C45R, 35B2, 28Mn6, 46Cr2, 34Cr4, 41Cr4, 20Mn5, 42CrMo4, 50CrMo4, 30CrNiMo8, 34CrNiMo6, 36CrNiMo4, 36NiCrMo16, 51CrV4 27MnCrB5, 32CrB4, 25CrMo4, 20MnCr5, 16MnCr5, 16MnCrS5,17CrNiMO6, 18CrNiMo7, 20MnB4, 23MnB4, 23MnB3, 34CrMo4V, SS410, SS416, SS420, SS431, SCM420, SCM440, 13Ni13Cr3, 15Ni16Cr5, 36Si7, 40Cr4, 15Ni5Cr4Mo1, 15Ni7Cr4Mo2, 16Ni8Cr6Mo2, 36Si7, 37C15, 35Mn6Mo3, 40Ni6Cr4Mo3, 40Ni10Cr3Mo6, 55Si7, 50Cr4V2, 25Cr13Mo6, 10C8S10, 14Cr14S14, 25C12S14, 40C10S18, 11C10S25, 40C15C12,
- SAE 1010, SAE1025, SAE1030, SAE 1035, SAE 1040, SAE 1117, SAE1541H, SAE4130, SAE4135, SAE4140, SAE4145, SAE4145H, SAE 4330, SAE 4340, SAE 4820, SAE5160, SAE8620, SAE 8630, SAE8640, SAE52100, SAE9310, AISI1010, AISI1025, AISI1030, AISI 1035, AISI 1040, AISI 1117, AISI1541H, AISI 4130, AISI4135, AISI4140, AISI4145, AISI4145H, AISI 4330, AISI 4340, AISI4820, AISI 5160, AISI 8620, AISI 8630, AISI 8640, AISI 9310
- BS970 080A15, 080M15, 070M20, 080A30, 080M30, 080M40, 080A42, 080A47, 080M50, 070M55, 150M19, 150M36, 045A10, 045M10, 080M15, 210M15, 635M15, 637M17, 655M13, 665M17, 805M17, 805M20, 815M17, 820M17, 822M17, 835M15, 530M40, 605M36, 606M36, 708M40, 709M40, 722M24, 817M40, 826M31, 826M40, 945M38, 410S21, 416S21, 416S29, 420S29, 420S37, 431S29
- EN 10088-3 X12Cr13, X20Cr13, X30Cr13, X17CrNi16-2
- ASTM A105, ASTM A182 F5, ASTM A182 F9, ASTM A182 F11, ASTM A182 F12, ASTM A182 F22, ASTM A182 F91, ASTM A182 F92, ASTM A350 LF2, ASTM B16, ASTM A193 B7, ASTM A193 B16, ASTM A266 Grade 1-2-3 and 4, ASTM A29 all grades, ASTM A540 B21, ASTM A540 B22, ASTM A540 B23, ASTM A540 B24, ASTM A540 B24V
- X22CrMoV121, 21CrMov57, 40CrMoV4-6, 27NiCrMoV15-6, 26 NiCrMo 14-6, 20CrMoVTiB4-10, X19CrMoNbVN11-1, X10CrMoVNb9-1
- DIN 1.2714/DB6, DIN1.2343/AISI H11, Din 1.2344/AISI H13
- GOST 4543-71 33XC, 38XC, 40XC, 45XH, 30XH3A, 12X2H4A, 20X2H4A, 20X2H4MA, 18X2H4MA, 30XGCA, 40ХН2МА, 40Х2Н2MA, 30ХН2МА
