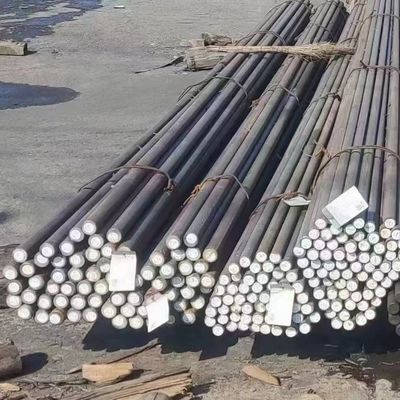

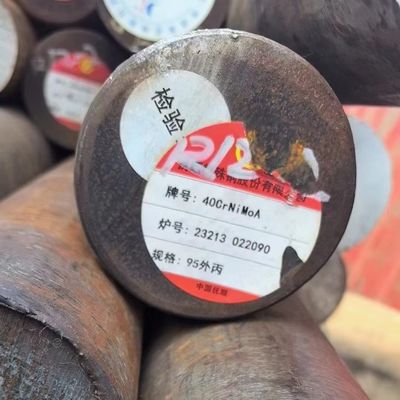

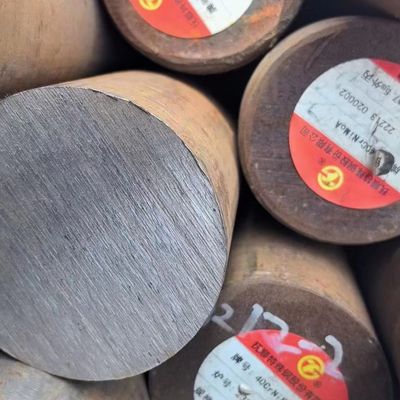

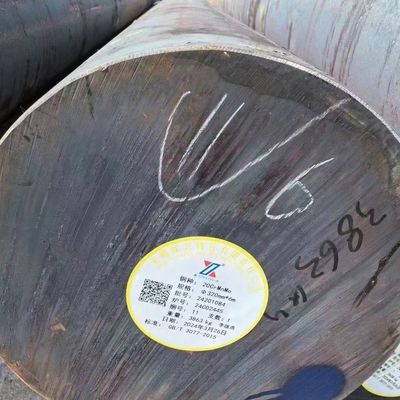

40CrNiMoA Alloy Steel Round Bar Custom Cutting Any Length Hot Rolled And Forged Round Bars
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 40CrNiMoA |
| Minimum Order Quantity | 1 Ton |
| Price | 600-885USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 350mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | Hot Rolled Steel Round Bar,Forged Steel Round Bar,Custom Cutting Steel Round Bar |
||
Product Description
40CrNiMoA Alloy Steel Round Bar Custom Cutting Any Length Hot Rolled and Forged Round Bars
Products Specification
| Products Name |
40CrNiMoASteel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
40CrNiMoA Steel
40CrNiMoA steel is a Chinese alloy steel, has high strength, toughness and good hardenability, and has anti-overheating stability, but has high white point sensitivity, temper brittleness and poor weldability. Preheating is required before welding, and stress relief treatment is required after welding.
Properties and Applications of 40CrNiMoA Alloy Steel
40CrNiMoA steel is used after quenching and tempering, and is used to manufacture important parts requiring good plasticity, high strength and large size. For example, heavy-duty shafts in heavy-duty machines, steam turbine shafts with diameters greater than 250 mm, blades, transmissions, fasteners, crankshafts, gears, etc., can also be used for rotor shafts and blades operating at temperatures exceeding 400 °C.
40CrNiMo, 40CrNiMoA Steel Chemical Composition
| Standards | GB | AISI | JIS |
| Material | 40CrNiMoA | 4340 | SNCM439(SNCM8) |
| C | 0.37~0.44 | 0.38~0.43 | 0.36~0.43 |
| Si | 0.17~0.37 | 0.15~0.35 | 0.15~0.35 |
| Mn | 0.50~0.80 | 0.60~0.80 | 0.60~0.90 |
| P | ≤0.025 | ≤0.035 | ≤0.030 |
| S | ≤0.025 | ≤0.040 | ≤0.030 |
| Cr | 0.60~0.90 | 0.70~0.90 | 0.60~1.00 |
| Ni | 1.25~1.65 | 1.65~2.00 | 1.60~2.00 |
| Mo | 0.15~0.25 | 0.20~0.30 | 0.15~0.30 |
40CrNiMoA Alloy Steel Mechanical Properties
- Yield strength: ≥ 835 MPa
- Tensile strength: ≥ 980 MPa
- Elongation: ≥12%
- Rate of reduction in area: ≥55%
- Impact absorbing energy: ≥ 78 J
- Material Brinell Hardness: ≤ 269 (Annealed or high temperature tempered steel rod)
- Sample size: 25mm
Heat treatment specification
- First quenching heating temperature: 850 °C (Quenchant– oil)
- Tempering heating temperature: 600 °C (Quenchant– water, oil)
Equal Grade of 40CrNiMoA Alloy
- Germany: 34CrNiMo6
- United States: 4340
- Japan: SNCM439 (SNCM8)
- United Kingdom: 817M40
- Italy: 40NiCrMo7
