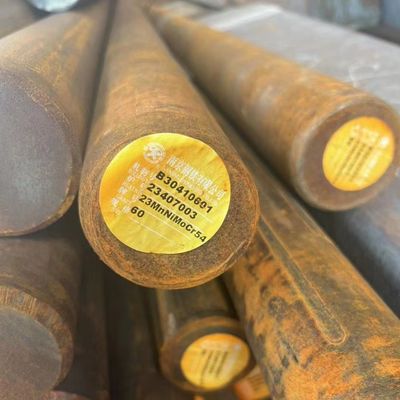

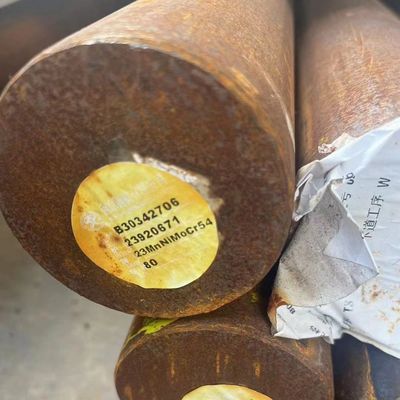

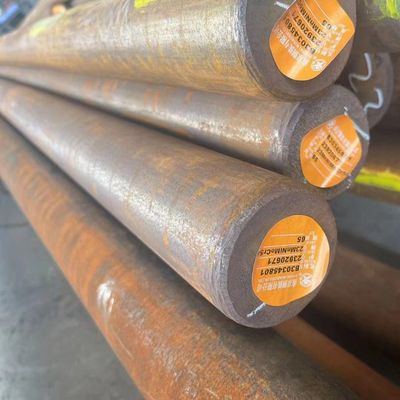

Alloy 23MnNiMoCr54 Round Bar GB Standard Steel Round Bar Hot Rolled 10 - 300mm Diameter
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Alloy 23MnNiMoCr54 |
| Minimum Order Quantity | 1 Ton |
| Price | 600-885USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 350mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | GB Hot Rolled Steel Round Bar,GB Standard Steel Round Bar,23MnNiMoCr54 Steel Round Bar |
||
Product Description
Alloy 23MnNiMoCr54 Round Bar GB Standard Steel Round Bar Hot Rolled 10 - 300mm Diameter
Products Specification
| Products Name |
Alloy 23MnNiMoCr54 Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our 23MnNiMoCr54 Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
23MnNiMoCr54 steel
23MnNiMoCr54 steel is based on low carbon steel, by adding Mn, Ni, Mo, Cr, Al and other alloy elements, through the solid solution strengthening, grain boundary strengthening and second phase particle strengthening of these elements, to improve the strength, plasticity and toughness of the steel, at the same time by controlling the harmful elements s, P in the steel to improve the fatigue life of the chain.
- MATERIAL TECHNICAL DATA SHEET - Grade 23MnNiCrMo5-4
- MATERIAL TYPE - hot rolled bar, square bar
- MATERIAL STANDARDS - DIN 17115
- MELTING PROCESS - Consumable electrode remelted steel
- H S CODE For Customs - 7228 4000 / 7228 5000 / 7228 6000
- OFFICIAL TEST REPORT - issued by TUV - SGS - BV
CHEMICAL COMPOSITIONS (mass weight - %)
Carbon, C (％): 0.20 ~ 0.26
Silicon, Si (％): ≤ 0.25
Manganese, Mn (％): 1.10 ~ 1.40
Phosphorus, P (％)≤: 0.020
Sulfur, S (％)≤: 0.015
Chromium, Cr (%): 0.40 ~ 0.60
Molybdenum, Mo (%): 0.50 ~ 0.60
Nickel, Ni (%): 0.90 ~ 1.10
Copper, Cu (%): ≤ 0.20
Nitrogen, N (%): ≤ 0.012
Nitrogen, N (%): ≤ 0.012
MECHANICAL PROPERTIES UNDER ROOM TEMP.
Mechanical property ≥|σs/MPa: 1130
Mechanical property ≥|σb/MPa: 1020
Mechanical property ≥|δ5(%): 10.0
Mechanical property ≥|AkU /J: 60.0
Mechanical property ≥|δ5(%): 10.0
Mechanical property ≥|AkU /J: 60.0
TYPICAL APPLICATIONS
Alloy structural steels are widely used in the filed of ship, vehicle, airplane, guided missile, weapons, railway, bridges, pressure vessel, machine tools, mechanical components with a bigger sectional size and so on.
Power generation – turbine fasteners – boiler support rods, Process plant – fasteners.
Mechanical gears, gear shaft, main axis, valve rod.
Mechanical parts - connecting rod, bolt and nut, Multidiameter shaft, Pressure vessel.
Alloy structural steels are widely used in the filed of ship, vehicle, airplane, guided missile, weapons, railway, bridges, pressure vessel, machine tools, mechanical components with a bigger sectional size and so on.
Power generation – turbine fasteners – boiler support rods, Process plant – fasteners.
Mechanical gears, gear shaft, main axis, valve rod.
Mechanical parts - connecting rod, bolt and nut, Multidiameter shaft, Pressure vessel.
FORMS & DIMENSIONS
Round bar / Wire rod (Diameter): 5.5mm to 550mm
Square bar / Flat bar: 3mm to 800mm
Length: Fixed length or random length or based on the customer's special requirement.
Heavy/middle plate via hot rolled: T60 - 400mm X W50 - 1000mm X L1000 - 12000mm
Forging piece: stepped shafts, other different shapes based on OEM.
Round bar / Wire rod (Diameter): 5.5mm to 550mm
Square bar / Flat bar: 3mm to 800mm
Length: Fixed length or random length or based on the customer's special requirement.
Heavy/middle plate via hot rolled: T60 - 400mm X W50 - 1000mm X L1000 - 12000mm
Forging piece: stepped shafts, other different shapes based on OEM.
