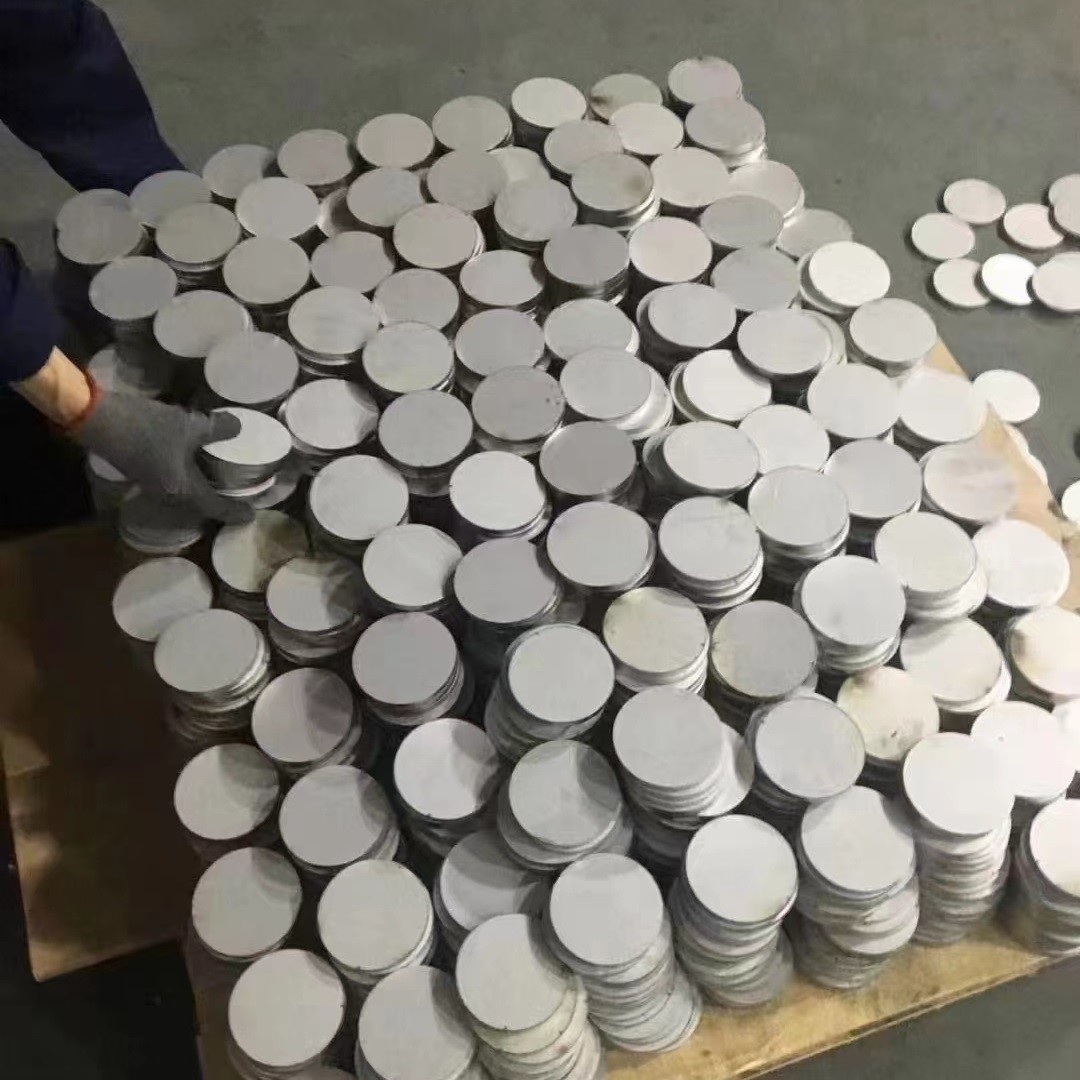

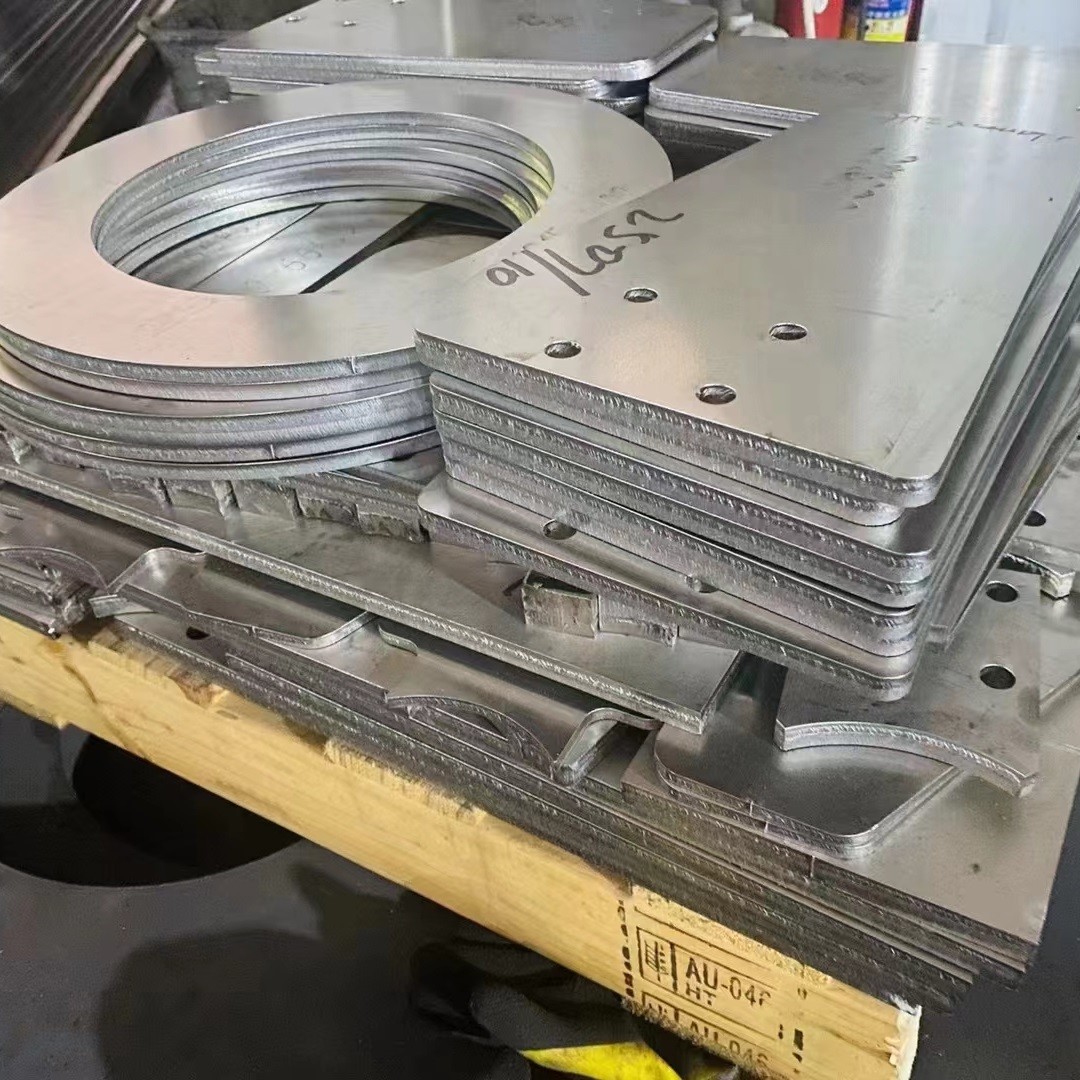

904L Stainless Steel Plate Cutting Round Plate / Square Plate / Ring Plate Laser Cutting
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 200Series 300 Series 400 Series Duplex Stainless Steel |
| Minimum Order Quantity | 400 kgs |
| Price | 2200 -3220 USD/Ton |
| Packaging Details | wooden pallets + waterproof paper |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plates | Grade | 200Series 300 Series 400 Series Duplex Stainless Steel |
|---|---|---|---|
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm | Thickness | 1.0 - 30.0mm |
| Brand | TISCO BAOSTEEL POSCO LISCO | Loading Port | Shanghai Port |
| MOQ | 200 Kgs | Packing | Wooden Pallets + Waterproof Paper |
| Highlight | Laser Cutting Stainless Steel Plate,Cutting Round Stainless Steel Plate,904L Square Stainless Steel Plate |
||
Product Description
904L Stainless Steel Plate Cutting Round Plate / Square Plate / Ring Plate Laser Cutting
More Informations of our Products
|
Material
|
200 300 400 Series stainless steel
|
|
Grade
|
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
|
|
Standard
|
AiSi ASTM JIS DIN EN BS
|
|
Tech
|
cold rolled / hot rolled
|
|
Thickness
|
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer’s request: 16-150mm Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 As per customer’s request: 4.0/5.0/6.0 |
|
Width&Length
|
1000mm-6000mm, or as per customer’s request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft) Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
|
Place of Origin
|
China
|
|
Processing Service
|
Bending, Welding, Recoiling, Punching, Cutting
|
|
Tolerance
|
±1%
|
|
Surface Treatment
|
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
|
|
Payment
|
T/T terms, 30% pre-payment, 70% balance see B/L copy
|
|
Delivery Time
|
5-15 days for ordinary orders (standard orders ≦50 ton); specified orders needs final confirmation as per customer’s request
|
ASTM SAE AISI 904L Stainless Steel (UNS N08904)
AISI 904L stainless steel (UNS N08904) is a high alloy austenitic stainless steel. Compared with 316L, SS904L has lower carbon (C) content, higher chromium (Cr) content, and approximatively twice the nickel (Ni) and molybdenum (Mo) content of 316L, which makes it have higher high temperature oxidation resistance, pitting resistance, and resistance to reducing acid (eg, sulfuric acid). Nitrogen (N) can reduce the rate of chromium carbide precipitation, thereby reducing the sensitivity of sensitization, it also improve the resistance to pitting and crevice corrosion caused by chlorides. Especially its addition of copper (Cu) makes it useful for all concentrations of sulfuric acid.
Chemical Composition
The following data sheet gives SS 904L stainless steel chemical composition.
| Chemical Composition, % | |||||||||||
| UNS | Type | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo | N, ≤ | Cu |
| UNS S08904 | 904L | 0.02 | 1.00 | 2.00 | 0.045 | 0.030 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 0.10 | 1.0-2.0 |
Mechanical Properties
The following table 904L stainless steel (SS904L) mechanical properties such as yield strength, tensile strength, elongation and hardness.
| AISI ASTM 904L Steel Mechanical Properties | ||||
| AISI Type | Tensile Strength, MPa (ksi), ≥ | 0.2% Yield Strength, MPa (ksi), ≥ | Elongation in 50 mm (2 in.), %, ≥ | Rockwell Hardness (HRBW), ≤ |
| 904L (UNS N08904) | 490 (71) | 220 (31) | 35 | – |
| 490 (71) | 220 (31) | 35 | 90 | |
Applications
904L stainless steel (SS904L) is used in petroleum, chemical, fertilizer, marine development towers, tanks, pipes and tubes and heat exchangers. watch manufacturers.
About Our Cutting Service
Our cutting platform has plasma cutting, water cutting, laser cutting, flame cutting, sawing machine, cutting plate equipment from Germany, Japan, the United States, Sweden, etc. While expanding the processing scope, extending the processing field, and improving the processing accuracy, we realize nesting processing, multi-means cutting, and intensive production to meet the diversified processing needs of customers, comprehensively improve the production and processing capacity, and help customers save product costs.
| Laser Cutting Machine | Plasmas Cutting Machine | ||
| Max.Length | 28,000mm | Max.Length | 25,000mm |
| Max.Width | 4,100mm | Max.Width | 4,500mm |
| Max.Thickness | 40mm | Max.Thickness | 100mm |
| Flame Cutting Machine | Water-jet Cutting | ||
| Max.Length | 24,000mm |
Max.Length |
12,000mm |
| Max.Width | 8,000mm |
Max.Width |
4,010mm |
| Max.Thickness | 500mm |
Max.Thickness |
200mm |
