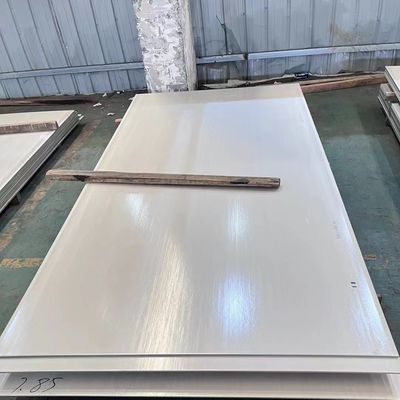

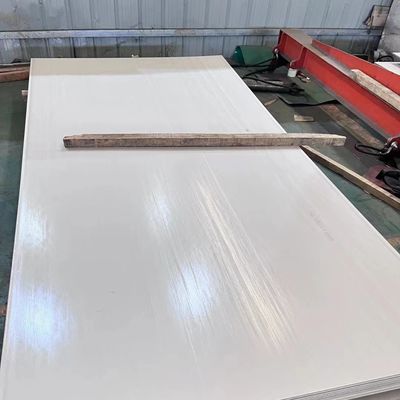

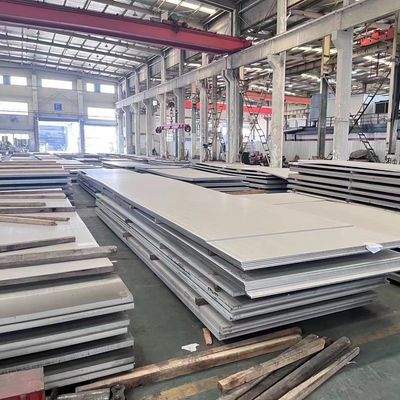

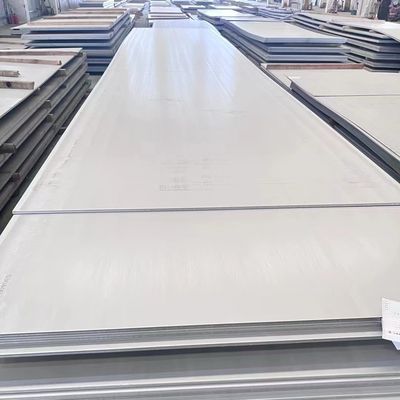

UNS S31609 Stainless Steel Plate 316H SS Plate 3.0 - 30.0mm Hot Rolled from TISCO
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 316H |
| Minimum Order Quantity | 400 kgs |
| Price | 4500 -5120 USD/Ton |
| Packaging Details | wooden pallets + waterproof paper |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plates | Grade | 316H |
|---|---|---|---|
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm | Thickness | 0.6- 30.0mm |
| Brand | TISCO BAOSTEEL POSCO LISCO | Loading Port | Shanghai Port |
| MOQ | 200 Kgs | Packing | Wooden Pallets + Waterproof Paper |
| Highlight | 3mm Hot Rolled Stainless Steel Plate,30.0mm Stainless Steel Plate,TISCO Stainless Steel Plate |
||
Product Description
UNS S31609 Stainless Steel Plate 316H SS Plate 3.0 - 30.0mm Hot Rolled from TISCO
More Informations of our Products
| Item | Stainless Steel Plates / Stainless Steel Sheets |
| Main Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L,316H, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
| Standard | ASTM GB JIS EN DIN BS |
| Thickness | 0.4mm-40mm |
| Stock Thickness | 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm,12 - 40mm |
| Width | 1000mm 1219mm 1500mm or cutting any size as request |
| Standard size | 1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
| Package | Standard export package |
Size of our 316H Stainless Steel Plates In Stock
| Cold Rolled 316H Stainless Steel Sheets | ||||
| 0.4*1219*2438mm | 0.5*1219*2438mm | 0.6*1219*2438mm | 0.8*1219*2438mm | 1.0*1219*2438mm |
| 1.2*1219*2438mm | 1.5*1219*2438mm | 2.0*1219*2438mm | 2.5*1219*2438mm | 3.0*1219*2438mm |
| 0.6*1500*3000mm | 0.8*1500*3000mm | 1.0*1500*3000mm | 1.2*1500*3000mm | 1.5*1500*3000mm |
| 2.0*1500*3000mm | 2.5*1500*3000mm | 3.0*1500*3000mm | ||
| Hot Rolled 316H Stainless Steel Plates | ||||
| 3.0*1500*6000mm | 4.01500*6000mm | 5.01500*6000mm | 6.01500*6000mm | 8.01500*6000mm |
| 10.01500*6000mm | 12.01500*6000mm | 14.01500*6000mm | 16.01500*6000mm | 20.01500*6000mm |
| 24.01500*6000mm | 25.01500*6000mm | 28.01500*6000mm | 30.01500*6000mm | 35.01500*6000mm |
316H Stainless Steel Composition
UNS S31609 is composed of molybdenum-bearing austenitic stainless steel developed for elevated-temperature applications. It has excellent corrosion resistance and creep strength. The addition of molybdenum provides greater corrosion resistance against chlorides and other industrial solvents, making it an ideal material for Inconel sheets used to foster a e and secure environment in construction sites as well as various industrial settings. Its mechanical properties make it highly capable of handling high temperatures, thus making it suitable not just for Inconel sheets but also automotive, pressure vessels, nuclear power plants, heating, and cooling systems, engine exhausts manifolds, etc.
Chemical Composition of Type 316H Stainless Steel
The chemical composition of Type 316H Stainless Steel is provided in the table below.
| UNS NO | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| S31609 | 316H | 0.04/0.10 | 0.75 | 2.00 | 0.045 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/14.00 | - |
Mechanical Properties of Type 316H Stainless Steel
| Yield Strength .2% Offset |
Ultimate Tensile Strength |
Elongation in 2 in. |
Hardness | ||
|---|---|---|---|---|---|
| psi (min.) | (MPa) | psi (min.) | (MPa) | % | |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
316H Stainless Steel Application
Due to its superior corrosion resistance, 316H SS is ideal for use in marine environments or any situation where exposure to saltwater or other corrosive elements is likely. It’sIt’s also often used in medical equipment due to its resistance to bacterial growth and corrosion-resistance properties. Additionally, due to its strength and durability, it’s commonly used in construction projects such as bridges, buildings, and other infrastructure projects. Finally, its superior malleability makes it perfect for DIY projects like custom kitchen sinks or outdoor furniture.
Benefits of using Type 316H Stainless Steel
Benefits of using Grade 316H stainless steel include:
- Increased carbon content heat resistant qualities
- Greater tensile yield strength
- Greater short and long term creep strength
316H Stainless Steel Products We can Supply
- 316H Stainless Steel Sheets
- 316H Stainless Steel Plate
- 316H Stainless Steel Coil
- 316H Stainless Steel Round Bar
- 316H Stainless Steel Angle Bar
- 316H Stainless Steel Channel Bar
- 316H Stainless Steel Seamless Pipe
- 316H Stainless Steel Welded Pipe
- 316H Stainless Steel Wire
FAQ
Q:What are your company's main products?
A:Our main products are stainless steel plate/sheet,coil round/square pipe,bar,channel etc
Q:How do you control quality?
A:Mill test certification is supplied with shipment,third party inspection is avaliable.
Q:What are the advantages of your company?
A:We have many professionals,technical personnel,more competitive prices and best after-sales service than other stainless steel companies.
Q:How many coutries you already exported?
A:Exported to more than 50 countries mainly from America,Russia,UK,Kuwait,Egypt,Turkey,Jordan,India,etc
Q:Can you provide sample?
A:Small sample in store and can provide the sample for free.Customized samples will take about 5-7days
