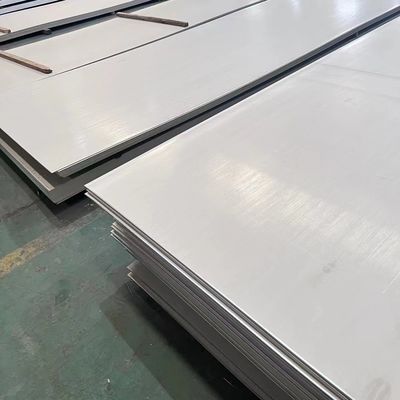

High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate

  • High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate
  • High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate
  • High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate
  • High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number 316
Minimum Order Quantity 400 kgs
Price 4500 -5120 USD/Ton
Packaging Details wooden pallets + waterproof paper
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 10 Ton per week
Product Details
Products Stainless Steel Plates Grade 316
Standard Size 1000*2000mm 1219*2438mm 1500*6000mm Thickness 0.6- 30.0mm
Brand TISCO BAOSTEEL POSCO LISCO Loading Port Shanghai Port
MOQ 200 Kgs Packing Wooden Pallets + Waterproof Paper
Highlight

S31600 Stainless Steel Plate

,

16.0mm Stainless Steel Plate

,

316 Stainless Steel Plate 3mm
Leave a Message
Product Description

High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate



More Informations of our Products



Item Stainless Steel Plates / Stainless Steel Sheets
Main Grades 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Standard ASTM GB JIS EN DIN BS
Thickness 0.4mm-40mm
Stock Thickness 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm,12 - 40mm
Width 1000mm 1219mm 1500mm or cutting any size as request
Standard size 1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm
Finish 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package Standard export package



Introduce of 316 Stainless Steel Plate



Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). Grade 316H, with its higher carbon content has application at elevated temperatures, as does stabilised grade 316Ti.

The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Key Properties

These properties are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.

Chemical Composition of 316 Stainless Steel Plate

Table 1. Composition ranges for 316 grade of stainless steels.

Grade   C Mn Si P S Cr Mo Ni N
316 Min - - - 0 - 16.0 2.00 10.0 -
Max 0.08 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10
316L Min - - - - - 16.0 2.00 10.0 -
Max 0.03 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10
316H Min 0.04 0.04 0 - - 16.0 2.00 10.0 -
max 0.10 0.10 0.75 0.045 0.03 18.0 3.00 14.0 -



Mechanical Properties of 316 Stainless Steel Plate

Table 2. Mechanical properties of 316 grade stainless steels.

Grade Tensile Str (MPa) min Yield Str 0.2% Proof (MPa) min Elong (% in 50 mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316 515 205 40 95 217
316L 485 170 40 95 217
316H 515 205 40 95 217



Note: 316H also has a requirement for a grain size of ASTM no. 7 or coarser.

Physical Properties of 316 Stainless Steel Plate

Table 3. Typical physical properties for 316 grade stainless steels.

Grade Density(kg/m3) Elastic Modulus (GPa) Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100 °C (J/kg.K) Elec Resistivity (nΩ.m)
0-100 °C 0-315 °C 0-538 °C At 100 °C At 500 °C
316/L/H 8000 193 15.9 16.2 17.5 16.3 21.5 500 740



Grade Specification Comparison

Table 4. Grade specifications for 316 grade stainless steels.

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316
316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L
316H S31609 316S51 - - - - -



High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate 0High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate 1High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate 2High Carbon 316 Stainless Steel Plate UNS S31600 Thickness 3.0 - 16.0mm SS Plate 3
