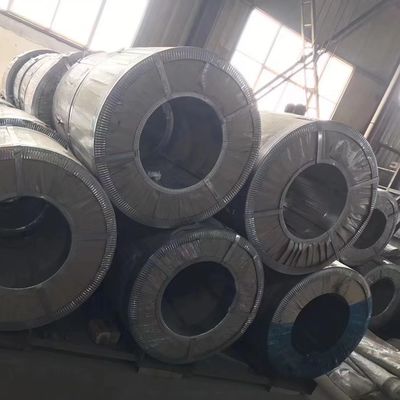

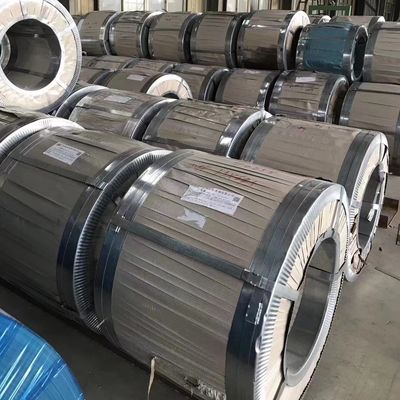

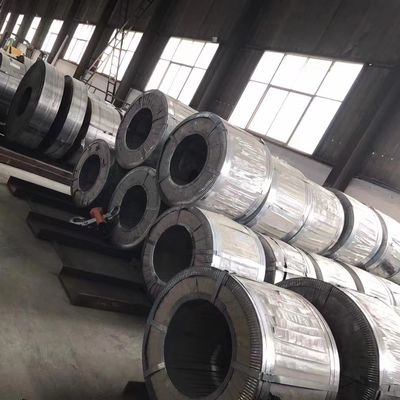

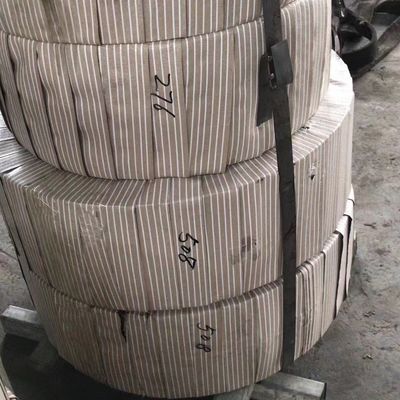

Grade 65Mn Spring Steel Strip Thickness 0.3 - 3.0mm Within 1250mm Custom Cutting

Grade 65Mn Spring Steel Strip Thickness 0.3 - 3.0mm Within 1250mm Custom Cutting

Specification of our products

Heat treatment Related

• Annealing of 65Mn Spring Steel

At first Slowly heated to 730 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. Then 65Mn tool steel will get MAX 250 HB (Brinell hardness).

• Hardening of 65Mn Spring Steel

At the beginning, 65Mn steels should be heated uniformly to 830-860°C (1526-1580°F) until completely heated through. After about 30 min per 25 mm of ruling section is to be provided and then the steels should be immediately quenched in oil. Tempering of 65Mn Spring Steel

Tempering of 65Mn steels is performed at 540°C, Soak well at the selected temperature and soak for at least one hour per 25mm of total thickness. Hardness values at different temperatures after tempering

Mechanical Properties of 65Mn Steel Strip

The mechanical properties of 65Mn Spring Steels are outlined in the following table.

Applications of 65Mn Steel Strip

65Mn steel, after heat treatment and cold drawing hardening, high strength, it has a certain toughness and plasticity; In the same surface hardening case, completely and the fatigue limit and alloy spring. But hardenability poor, mainly for the smaller size of the spring, such as regulating speed regulating spring, spring load, general machinery in the round, square spiral spring or pull wire for small mechanical spring.

Products and Size range of our 65Mn Steel Products

• Steel round bar: Diameter Ø 2mm – 3000mm
• Steel plate: Thickness 2mm – 3000mm x Width 100mm – 3500mm
• Steel Hexagonal bar: Hex 5mm – 105mm
• Others 65Mn have not specified size, pls contact our experienced sales team.

Grade Specification of our steel strip
