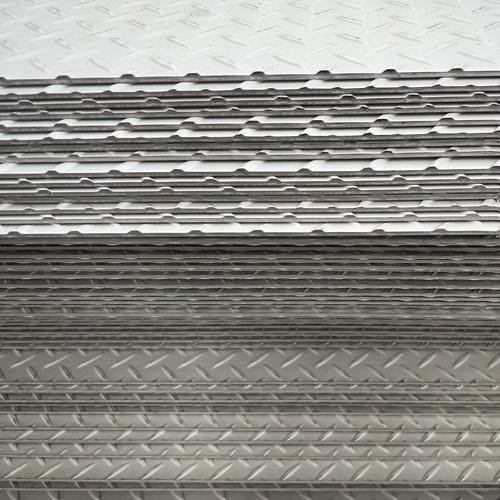

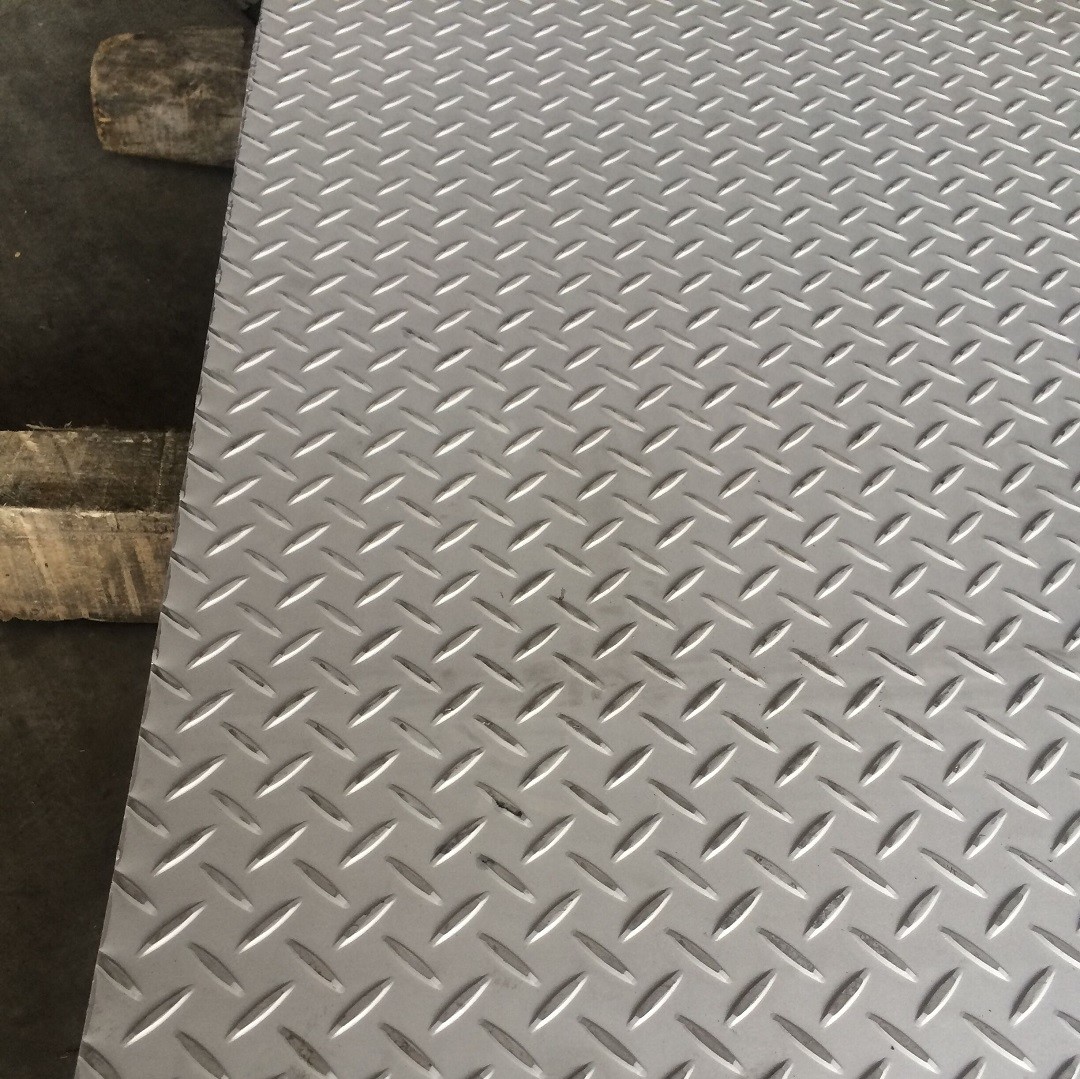

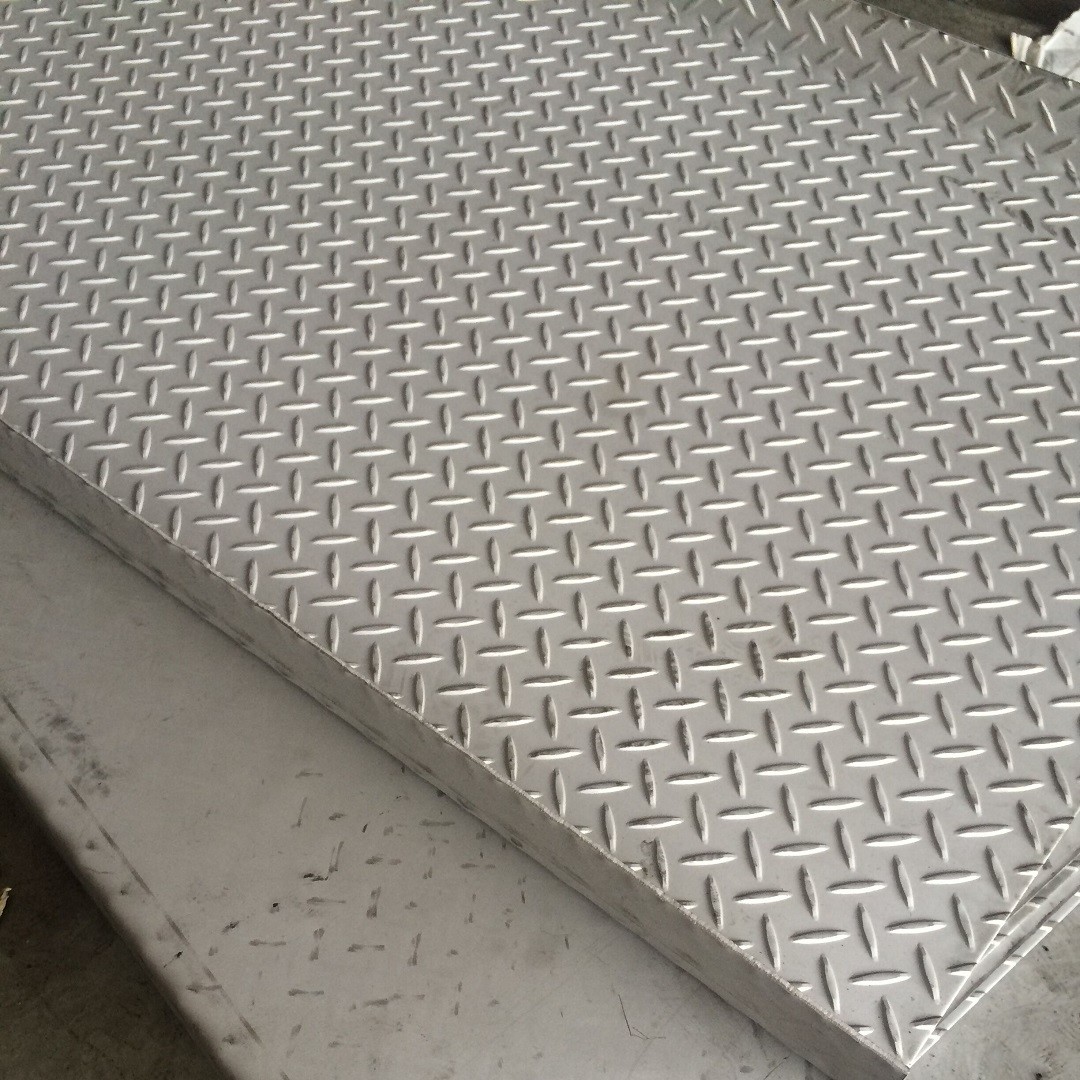

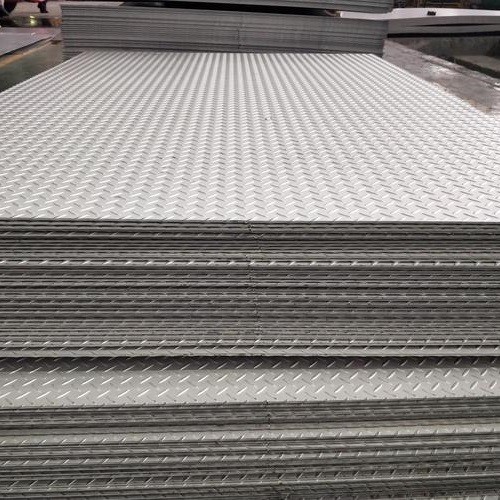

Stainless Steel Checker Plate ASTM EN DIN AISI304 AISI316L AISI321 SS Patterns Plate

Stainless Steel Checker Plate ASTM EN DIN AISI304 AISI316L AISI321 SS Patterns Plate

• Stainless steel 304 hot rolled checkered plate, size : 4.5 mm × 1250 × 2500 mm.
• Marine grade 316 checker plate with thickness 2.3 mm.
• SS 304L checker plate, size: 3 m long × 1.5 m wide × 6 mm thick with checker.
• SS 304L checker plate, size: 5 m long × 1.7 m wide × 6 mm thick without checker.
• 304L checker plate 6 mm thickness × 1.5 m × 3 m long.
• Stainless steel checkered plate, sheet size: 2500 × 1200 × 8 mm thickness.
• Stainless steel checkered plate, sheet size: 2500 × 1200 × 6 mm thickness.
• Steel plate thickness: 3/16", sheet size: 72" × 288".
• Steel checkered plate size: 10/12" × 1500 mm × 6000 mm.
• Stainless steel 316 checkered plates size 8 mm × 1250 mm × 2500 mm.
• Stainless steel checkered plate size 1200 × 2400 mm × 2 mm thickness.
• SS 400 checkered plate size 4.5 mm × 1219 mm × 2438 mm.
• Stainless steel checkered plate size 1219 × 2438 × 6 mm.
• SS 304 or SS 304L checker plate size 4' × 8' × 5 mm thickness.
• SS 316L checkered plate size: 4' × 8' × 10 mm thickness.
• Stainless steel checker plate 316 HR size 1200 × 2400 × 3.50 mm.
• SS 304 checker plate: 4' × 8' × 3.0 mm thickness.
• Stainless steel 316 checkered plate 1219 × 2438 × 6 mm thick.
• Material 304, checker plate size: 3 mm × 2000 mm × 6000 mm.
• Material 304, checker plate size: 5 mm × 2000 mm × 6000 mm
• Stainless steel checkered plates: 1500 mm × 6000 mm × 10 mm thickness.
• Stainless steel 316 checker plate with size 1200 × 2400 mm × 3 mm thickness.
• Stainless steel 316 size 1200 × 2400 mm × thickness 6 mm.
• 201 grade stainless steel checked plate with raised checker, size 3.0 mm thick × 4' × 8'.
• SS 304L checkered plate, 3 mm plate thickness and 5 mm raised web thickness. Checkered plate size: 1220 × 2440 mm.
• SS 304L checkered plate, 3 mm plate thickness and 5 mm raised web thickness. Checkered plate size: 1500 × 3000 mm.
• Stainless steel 304L checker plate size 4 mm thickness × 1000 mm × 2000 mm.
• AISI 304 stainless steel checker plate, thickness 2 mm, sheet size 1250 × 2500 mm.
• Stainless steel checkered plate thick 1 mm to 6 mm and size 1250 mm × 2500 mm.
• Stainless steel checkered plate 304L, sheet dimensions: 1 × 2 m, thickness: 5 or 6 mm.
• Stainless checker sheet for an outside floor measuring 500 × 500 mm × 3.2 mm thick.
• Stainless steel checkered plates size: 10 × 1500 mm × 6000 mm (10 mm plane surface and with checker of 2 mm total thickness of plate is 12 mm).
• Stainless steel checkered plate, 316 grade, size 1220 × 2440 × 5 mm thick or 6 mm thickness.
• Stainless steel checker plate size: 890 mm (+10 mm turn up each side) × 700 mm × 5 mm thick, counter sunk holes both top and bottom size: 3 × 9 mm.
• Satin stainless steel 316 checker plate, with rounded edges to use as door kick plates in a fire station. Sizes of the sheets are 990 mm × 830 mm.
• Stainless steel checkered plate, grade 316L, size: 2.72 mm × 1500 × 1700 mm. Finish with PVC main side back is 2B slit edge.
• Stainless steel 304 floor checker plate, standard ASTM A793, type flat back and cold rolled, plate size: 3 × 2000 × 6000 mm and 5 × 2000 × 6000.
• Stainless steel embossed checker plate for cover the floors of factory features ety and easy cleaning and can also avoid slip and trips. Plate size 2.3 thick × 1219 mm × 6096 mm.
• SS 316L checkered plate.
  • Checkered plate size: 1680 mm × 1300 mm × 10 mm thickness.
  • Checkered plate size: 2075 mm × 1445 mm × 10 mm thickness.
  • Checkered plate size: 880 mm × 980 mm × 10 mm thickness.
  • Checkered plate size: 990 mm × 990 mm × 12 mm thickness.
• Stainless steel checkered sheet.
  • Sheet size: 8' × 4' × 1.5 mm.
  • Sheet size: 10' × 4' × 1.5 mm.
  • Sheet size:10' × 5' × 1.5 mm.
• Stainless steel 304 checkered plate.
  • Checker plate size: 3 mm thick × 1500 mm × 650 mm.
  • Checker plate size: 4 mm thick × 1500 mm × 2650 mm.
  • Checker plate size: 3 mm thick × 1500 mm × 3000 mm.
  • Checker plate size: 4 mm thick × 1500 mm × 3000 mm.

Feature of Stainless Steel Checker Plate

• High-temperature resistance.
• Corrosion resistance.
• Alkaline resistance.
• Anti-rust.
• Anti-skid.
• Durable and long life.
• Minimum maintenance.

Application of Stainless Chequer Plate

• Because of its surface rib bar, the non-slip effect can be used as the floor, factory escalator, working platform pedals, ship deck, car floor, and so on. The beautiful appearance of the stainless steel tread plate, non-slip, strengthens the performance, saving steel, and many other advantages, in transportation, construction, decoration, equipment around the floor, machinery, shipbuilding, and other fields have a wide range of applications. In general, with the use of squares on the mechanical properties of the board, mechanical performance is not high, so the quality of the main pattern is the pattern into flower rate, pattern height, and pattern height difference. Currently available on the market from the thickness of 1.0-6mm ranging from the width of the common1219 1250,1500 mm.
• Stainless checker plate steel is used in the workshop, large equipment, or ship walkways and stair pedals, and the surface of the diamond-shaped or lenticular pattern of steel. The size of the plate is based on the basic thickness (excluding the thickness of the rib).
• Pattern board height not less than 0.2 times the thickness of the substrate; intact pattern, the pattern allows a height of not more than half of the thickness tolerance of the local slight burr.
