AISI304 AISI316L Stainless Steel Checkered Plate Anti-slip Stainless Steel Sheet
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 316L 2205 321.etc |
| Minimum Order Quantity | 1 Ton |
| Price | 2250 - 3150 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Checkered Plate | Grade | 201 304 316L.etc |
|---|---|---|---|
| Thickness | 1.0 - 8.0mm | Standard | ASTM EN GB |
| Width | 1000mm 1219mm 1500mm | Surface | 2B NO.1 |
| Brand | TISCO BAOSTEEL | MOQ | 1 Ton |
| Highlight | ASTM stainless steel checker plate,304 stainless steel checker plate,316l stainless checker plate |
||
Product Description
AISI304 AISI316L Stainless Steel Checkered Plate Anti-slip Stainless Steel Sheet
Stainless Steel Chequered Plate is one type of finishes available in stainless steel plates. Stainless steel is one of the most used materials for pipes, plates, sheets and coils in the world. There are different grades, specifications and dimensions. Navstar Steel is a leading manufacturer and supplier of the Stainless Steel Chequered Plate in all different grades and dimensions. There are ASTM, JIS and AISI standard plates. The material grades range as 304, 304L, 301, 201, 310S, 309S, 316L, 321, 410, 420, 430 and so on.
Stainless Steel Chequer Sheet Specification Chart
| Specifications | ASTM A240 / ASME SA240 |
| Item | Stainless Steel Checkered Plates |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface | the surface and finish of ss Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hair line, sand blast, Brush, etching, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Manufacturer | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
| Thickness | 0.3~10.0mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Grade | ASTM /ASME SA 240 gr. Tp 304 , 304l, 304h, 309s, 309h, 310s, 310h, 316, 316l, 316h, 316, 317l ,321, 321h, 347, 347 h, 409, 410s, 420, 430, 904l chequered Plate |
Chemical Composition of Our Stainless Steel Checkered Plate
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Chequered 304 Plates | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — | — |
| Stainless Steel Chequered 304L Sheets | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max | — |
| Stainless Steel Chequered 304H Coil | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max | — |
| Stainless Steel Chequered 316 Foil | Min | - | - | - | 0 | - | 16.0 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316L Plates | Min | - | - | - | - | - | 16.0 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316H Sheet | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | - |
Stainless Steel Chequer Plate Mechanical Strength
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
Specification of Stainless Steel Checkered Plate
- The Grades of Stainless Steel Checker Plate Steel:201, 202, 304, 304L, 316L, 310S, 410, 410S, 430,316 stainless steel diamond plate, etc.
- The surface finish of stainless chequer plate:1 for hot rolled stainless steel chequer plate, 2B for cold rolled checker plate steel, No.4, BA, HL, MIRROR, etc.
- Type: Diamond pattern, Lentil pattern, 5 bars pattern, T pattern, etc.
- Stainless Chequer Plate Thickness:3mm – 3mm for Cold Roll, 3mm – 10mm checker plate steel/12.5mm for Hot Roll.Can be customized according to customer requirements.
- Width:10mm – 600mm for strip ; 600-2000mm for sheet.Can be customized according to customer requirements.
- Length:2000mm – 6000mm, Can be customized according to customer requirements.

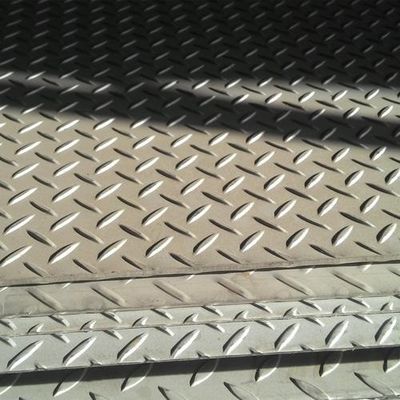

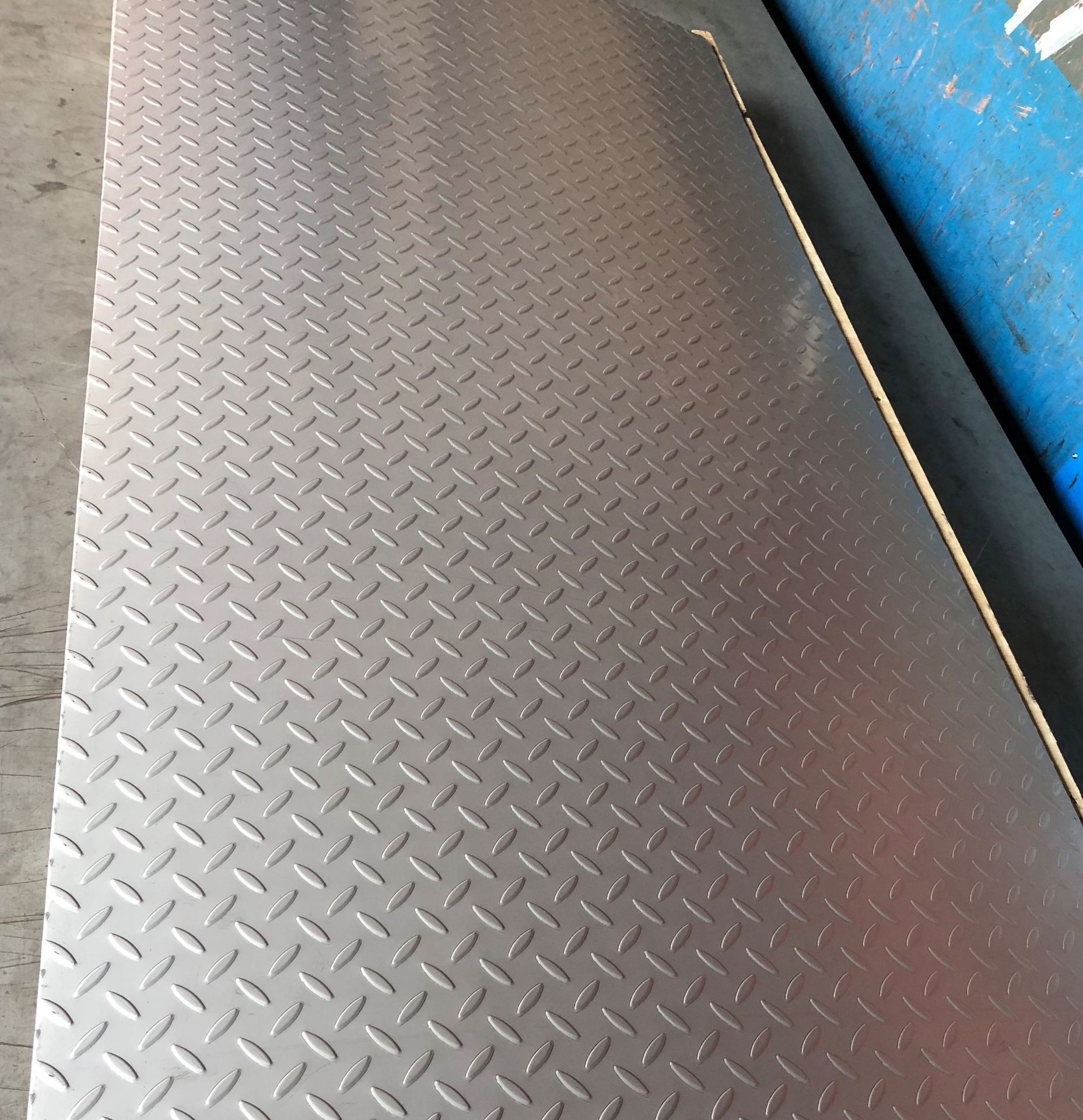

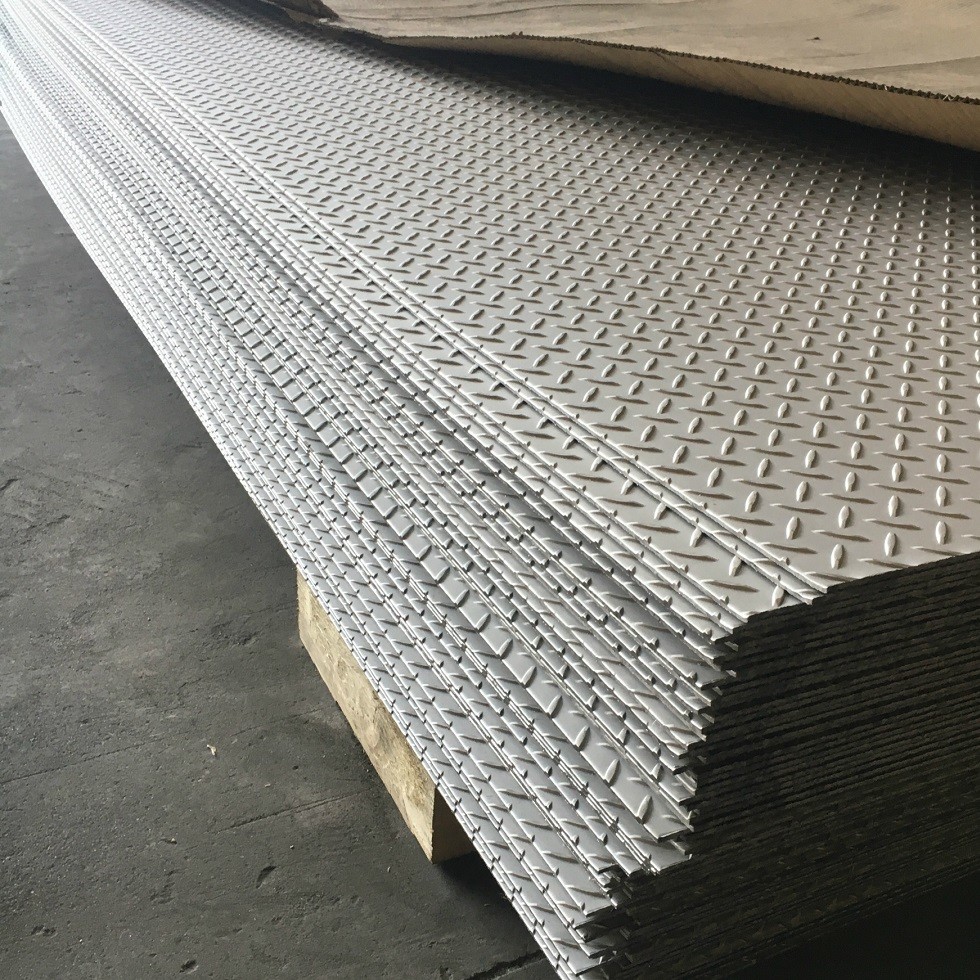

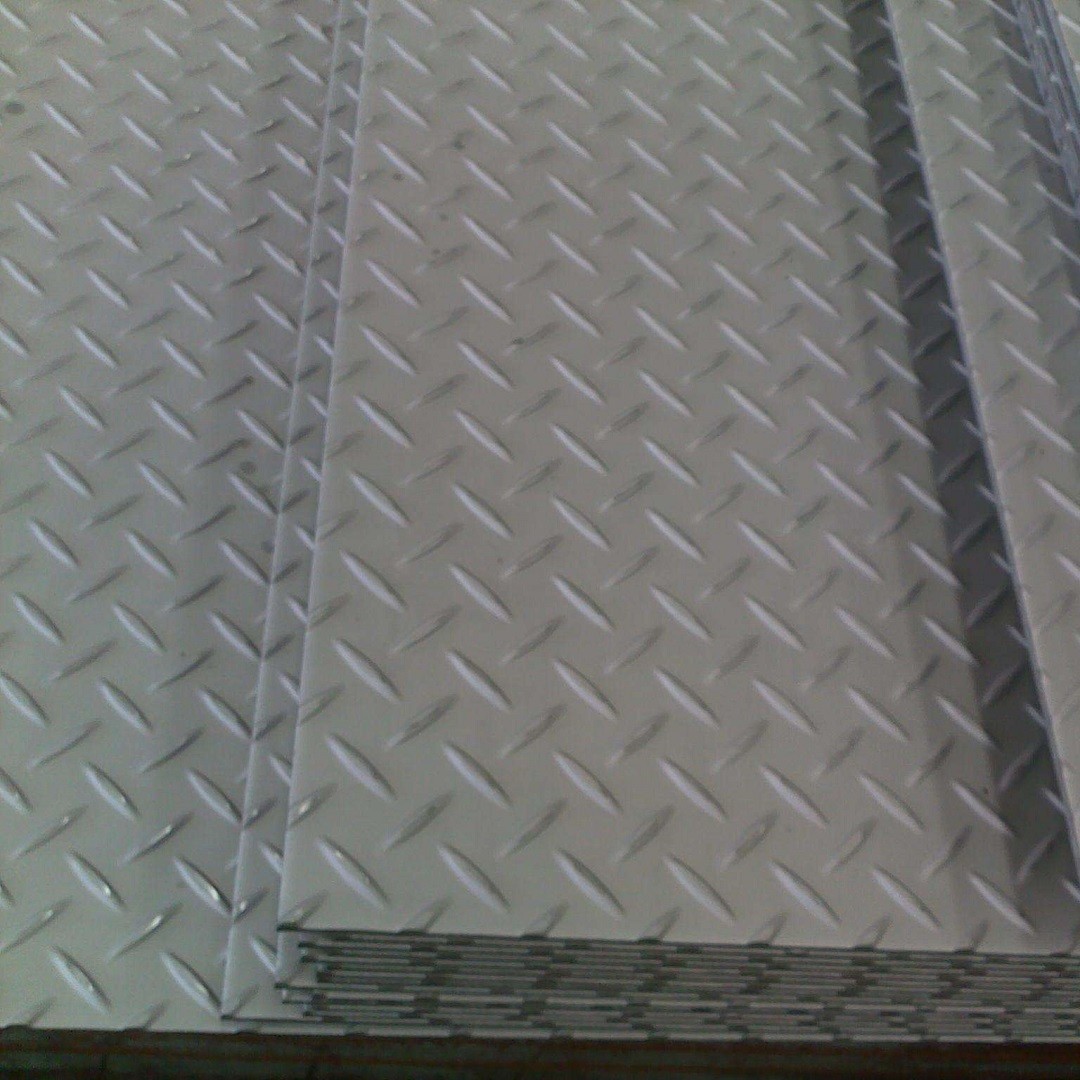

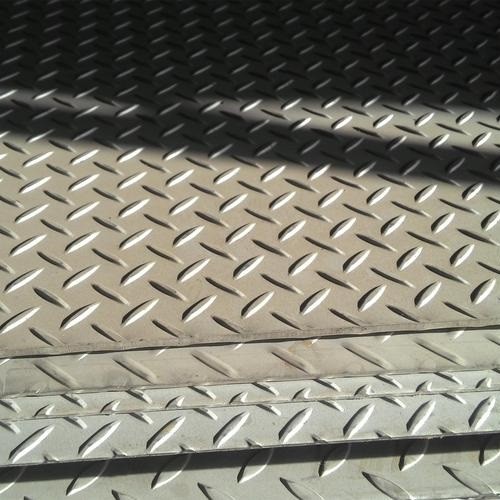

Products Show
