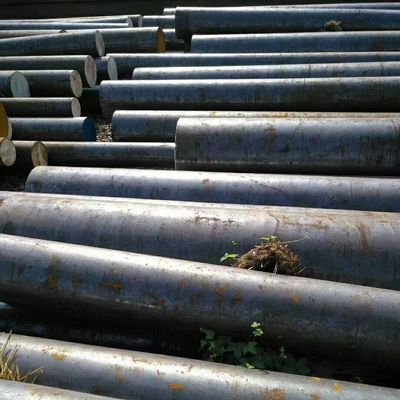

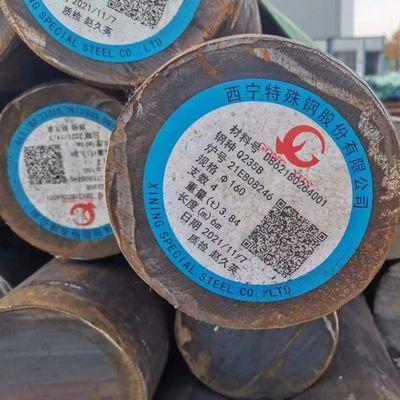

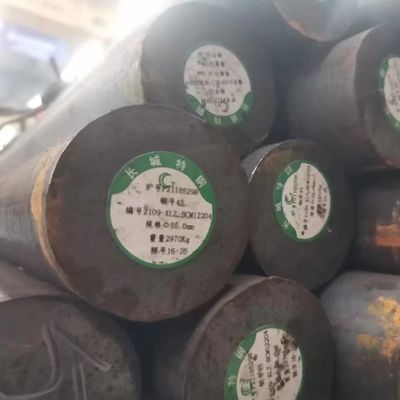

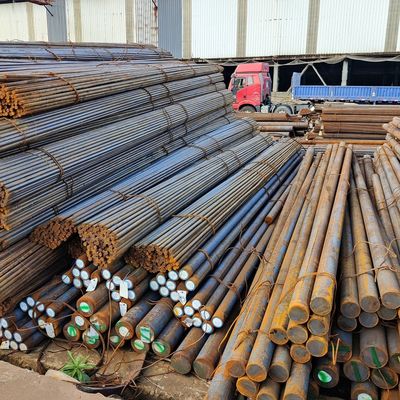

EN 1.7131 Steel 16MnCr5 Alloy Steel Round Bar ASTM EN DIN Standard With EN 10204-3.1 Certificate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | EN 1.7131 / 16MnCr5 |
| Minimum Order Quantity | 1 Ton |
| Price | 618-877USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 350mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | din steel round bar,hot rolled steel round bar,hot rolled mild steel round bar |
||
Product Description
EN 1.7131 Steel 16MnCr5 Alloy Steel Round Bar ASTM EN DIN Standard With EN 10204-3.1 Certificate
Products Specification
| Products Name |
1.7131 16MnCr5 Alloy Steel Round Bar |
| Diameter | 10 - 320mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our 1.7131/16MnCr5 Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
Other Alloy Steel Round Bar We Can Supply:
40CrNiMoA,4340,40CrNi2Mo,34CrNiMo6,17CrNiMo6,20CrNiMoA,8620H,35CrMo,Ⅴ40,20CrMnMo,20MnCr5,30CrNiMo8,18CrNiMo7
EN 1.7131 Steel 16MnCr5 Material
EN 1.7131 steel (16MnCr5 material) is an European standard carburized steel (case hardening steel) with good hardenability and machinability. For larger cross-section parts, high surface hardness and wear resistance can be obtained after heat treatment, and low-temperature impact toughness is also high. For specification and datasheet, please see the tables below.
16MnCr5 steel is generally used after carburizing and quenching, and is mainly used for manufacturing gears, worms, sealing bushings and other components.
The following tables show material 16MnCr5 datasheet and specification including chemical composition, mechanical properties, etc.
(DIN EN 1.7131 Material) 16MnCr5 Steel Chemical Composition
The following table shows chemical composition of 16MnCr5 material (1.7131 steel).
| Chemical Composition % | |||||||
| Standard | Steel Name (Steel Number) | C | Si ≤ | Mn | P ≤ | S | Cr |
| EN 10084 | 16MnCr5 (1.7131) | 0.14-0.19 | 0.40 | 1.00-1.30 | 0.025 | ≤ 0.035 | 0.80-1.10 |
| EN 10084 | 16MnCrS5 (1.7139) | 0.14-0.19 | 0.40 | 1.00-1.30 | 0.025 | 0.020-0.040 | 0.80-1.10 |
Mechanical Properties of 1.7131 Steel (16MnCr5 Material)
1.7131 material, 16MnCr5 steel Brinell hardness
- Soft annealed: ≤ 207 HBW
- Treated to hardness: 156-207 HBW
- Treated to ferrite-pearlite structure and hardness: 140-187 HBW
- Normalized: 138-187 HBW
EN 1.7131, 16MnCr5 Tensile strength (after hardening and tempering at 200 °C)
- Dia. ≤ 16mm: Min. 1000 MPa
- 16 < Dia. ≤ 40mm: Min. 800 Mpa
- 40 < Dia. ≤ 100mm: Min. 600 Mpa
Heat Treatment Specification of 16MnCr5 (1.7131 Steel)
- End quench test Austenitizing temperature: 870℃ (30-35 minutes)
- Carburizing temperature: 880-980 ℃
- Core-hardening temperature: 860-900 ℃
- Case-hardening temperature: 780-820 ℃
- Tempering: 150 – 200 ℃ (≥ 1 hour)
Equivalent Grade
EN 1.7131 material (16MnCr5 steel) equivalent to ISO, US ASTM AISI SAE, Japanese JIS and Chinese GB standard. (For reference)
| 16MnCr5 steel equivalent | |||||||||||||||
| European | ISO | USA | Japan | China | |||||||||||
| Standard | Grade (Steel Number) | Standard | Grade | Standard | Grade (a) | Standard | Grade (b) | Standard | Grade | ||||||
| EN 10084 | 16MnCr5 (1.7131) | ISO 683-11 | 16MnCr5 | AISI SAE; ASTM A29/A29M |
5115 | JIS G4053 | SCr415 | GB/T 5216 | 16CrMnH | ||||||
