EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting

  • EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
  • EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
  • EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
  • EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number 34CrAlMo5-10 / 1.8507
Minimum Order Quantity 1 Ton
Price 600-851 USD/Ton
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 20Ton per week
Product Details
Products Name Alloy Steel Round Bar Diameter 10 - 350mm
Length 6m Tech Hot Rolled
Service Cutting MOQ 1 Ton
Loading Port Shanghai Port Standard ASTM EN GB
Highlight

din steel round bar

,

hot rolled steel round bar

,

hot rolled mild steel round bar
Leave a Message
Product Description



EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting

Products Specification



Products Name  34CrAlMo5-10 / 1.8507Alloy Steel Round Bar
Diameter 10 - 300mm
Length 6m or custom cutting any length as request
Type Hot Rolled
Brand BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc
MOQ 1 Ton
Loading Port Shanghai Port
Packing packing by steel wire rope
Deliver time 5 - 7 days  for stock materials
Other Grade

Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov,

15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo,

40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo
Standard ASTM GB EN DIN
Application Structure and Industrial



Regular Standard Size of our Round Bar in Stock



Standard Diameter 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300



Chemical composition of 34CrAloMo5-10 Alloy Steel



  C Si Mn Ni Cr Mo S P Al
min 0.30   0.50   1.0 0.15     0.80
max 0.37 0.40 0.80   1.30 0.25 0.025 0.030 1.20



Mechanical properties of 34CrAlMo5-10, 1.8507 according to EN 10085

  • Annealed condition +A - Hardness: <248 HB
  • Heat-treated condition +QT - dimensions 16 - 70mm
    • Tensile strength, Rm: 800 - 1000 MPa
    • Yield strength, Re: >600 MPa
    • Elongation, A: >14%
    • Impact resistance, KV: >35J
  • Surface hardness after nitriding - HV1: 950

Heat Treatment Processing



34CrAlMo5-10, 1.8507

  • Softening annealing at 650 - 750℃
  • Hardening in water or oil at 870 - 930℃
  • Tempering at 580 - 700℃
  • Nitriding at 480 - 570℃



34CrAlMo5-10 Alloy Steel Products We can Produce



Steel Grade Speci
  • Processing range(mm)
  • 34CrAlMo5-10
 Round Bar
  • Φ1 to Φ2000
  • 34CrAlMo5-10
  • Square-shape steel/Flate bar
  • 10 to 1000
  • 34CrAlMo5-10
  • Steel Plate/Sheet
  • 0.4 to 80(T)*10 to 1500(W)*Long
  • 34CrAlMo5-10
  • Forging
  • Pipe/tube/slugs/donuts/cubes/other shapes
  • 34CrAlMo5-10
  • Tubings
  • OD: Φ10-406; WT: 1-35 mm
  • 34CrAlMo5-10
  • Steel coils and strip
  • THK:0.3mm Width: within 1500mm

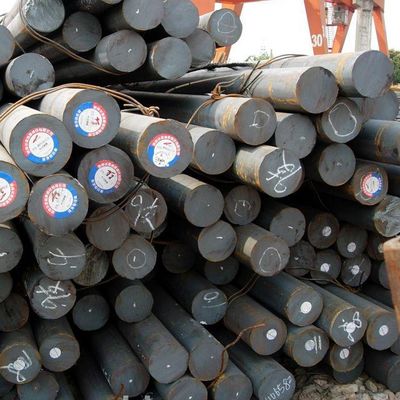

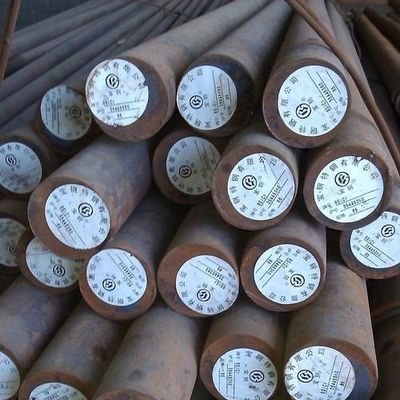

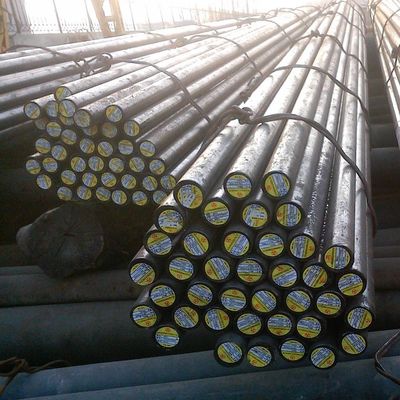

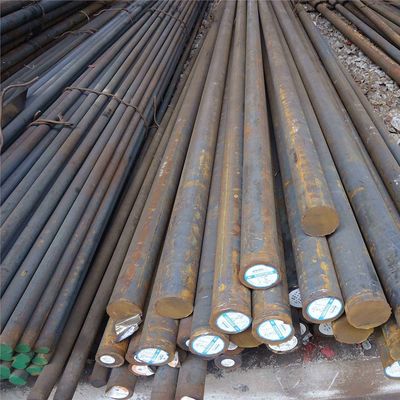

Products Picture



EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting 0EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting 1EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting 2EN 1.8507 (34CrAlMo5-10) Nitriding Steel Round Bar Diameter 10 - 300mm Custom Cutting 3
