Europe Standard 1.4404 / 316L / S31603 Stainless Steel Plate 0.6 - 80.0mm Thickness from TISCO
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 1.4404 / 316L / S31603 |
| Minimum Order Quantity | 500 kgs |
| Price | 2200 -3200 USD/Ton |
| Packaging Details | wooden pallets + waterproof paper |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | 1.4404 / 316L / S31603 |
|---|---|---|---|
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm | Thickness | 0.4 - 40.0mm |
| Brand | TISCO BAOSTEEL POSCO LISCO | Loading Port | Shanghai Port |
| MOQ | 500 Kgs | Packing | Wooden Pallets + Waterproof Paper |
| Highlight | acid resisting hot rolled steel plates,2mm hot rolled stainless steel plate,3mm cold rolled stainless steel sheet |
||
Product Description
Europe Standard 1.4404 / 316L / S31603 Stainless Steel Plate 0.6 - 80.0mm Thickness from TISCO
| Products | Stainless Steel Plate |
| Thickness | 0.4 - 40.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 409L 410 420 430 431 434 436L 439 441 443 444 2205 2507 904L 600 625 800 825 718 253MA 254SMO.etc |
| Service | Laser Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |
| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |
1.4404 is an acid-resisting austenitic stainless steel with 17% Cr, 12% Ni and 2,0% Mo. Due to its Mo content, this material has a significantly improved corrosion resistance compared to stainless steels. 1.4404 is resistant to reducing action of organic and inorganic acids as well as against halogen-containing media. Furthermore, this steel is less susceptible to pitting. The low carbon content also improves the resistance to intergranular corrosion and allows use at higher temperatures up to 450 ° C in continuous operation. 1.4404 can be cold worked and weld excellent. This material is mainly used in the chemical, textile and paper industries, and is often used in apparatus, in sanitary industry and in pipe fabrication.
Dimensional range
Coils, Sheets
- Thickness: from 0.40 to 14 mm
- Width: up to 2,000 mm
Precision Strip
- Thickness: from 0.06 to 2.5 mm
- Width: from 3 to 700 mm
Precision Sheet
- Thickness: from 0.20 to 2.5 mm
- Width: from 40 to 670 mm
Discs
- Thickness: from 0.38 to 2.50 mm
- Diameter: from 15 to 1000 mm
Tubes
- Thickness: from 0.80 to 2.50 mm
- Diameter: from 8 to 80 mm
Flat Bars
- Thickness: from 2 to 20 mm
- Width: from 10 to 300 mm
Heavy Plates
- Thickness: from 9 to 50.8 mm
- Width: from 1,000 to 1,500 mm
Grade Specification of 1.4404 Stainless Steel
| Material Designation | 1.4404 |
| AISI/SAE | 316L |
| EN Material Short Name | X2CrNiMo 17-12-2 |
| UNS | S 31603 |
| Norm | 10088-2 |
Main fields of application of 1.4404
This material is mainly used in the chemical, textile and paper industries, and is often used in apparatus, in sanitary industry and in pipe fabrication.
Chemical composition of 1.4404
| C | Si | Mn | P | S | Cr | Mo | Ni | N |
| ≤ % | ≤ % | ≤ % | ≤ % | ≤ % | % | % | % | ≤ % |
| 0,03 | 1,0 | 2,0 | 0,045 | 0,015 | 16,5-18,5 | 2,0-2,5 | 10,0-13,0 | 0,11 |
Our Service
Applications of 1.4404 Stainless Steel
- Food industry equipment: tanks, tubes, pumps
- Naval engineering
- Road transport: IMO tanks, swap bodies, trailers
- Building industry: architectural components, roofing, façades
- Water industry
- Chemical and pharmaceutical industry
- Oil & Gas industry
- Paper industry

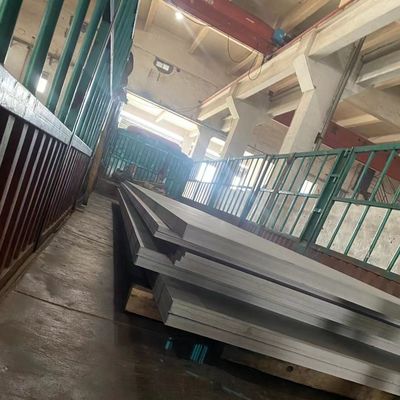

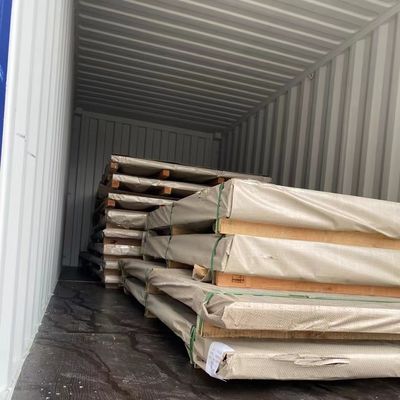

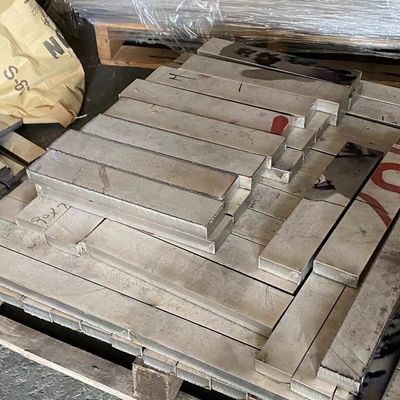

Products Show
