H900 H1025 H1150 Heat Treatment 17-4PH / 630 Stainless Steel Bar Round Black Steel Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 309S 310S 2205 17-4PH 2507 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round Bar | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316LMod 309S 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description
H900 H1025 H1150 Heat Treatment 17-4PH / 630 Stainless Steel Bar Round Black Steel Bar
More Specification of 17-4PH Stainless Steel Bar
| Products | 17-4ph Stainless Steel Bar |
| Diameter | 6 - 300mm |
| Standard | ASTM A276 |
| Length | 6000mm or cutting any length as request |
| Type | Hot rolled/ cold drawn / forged |
| Surface | Black , bright |
| MOQ | 500 kgs |
| Service | cutting , heat treatment (solid solution , aging) |
| Other grade |
201 202 303 303Se 304 304L 309S 310S 316L 316Ti 316LN 316LMod 317L 317LN 321 347 410 420 416 430F 431 440A/B/C 904L 2205 2507 254SMO 654SMO 253MA.etc |
| Loading Port | Shanghai Port |
| Packing | wooden box or as request |
| Deliver time | 5 - 12 days |
About 17-4PH Stainless Steel Bar / Alloy17-4PH UNS-S17400
Also known as AISI Grade 630, stainless steel alloy grade 17-4PH is a precipitation hardening stainless steel which has extremely high strength and hardness, combined with good ductility and toughness. It has excellent corrosion resistance, approaching that of stainless steel grade 304. Designers and engineers often choose the alloy for its high strength, with corrosion resistance superior to most other high strength steels.
Typical Applications
High strength bolting and fasteners in aerospace and chemical plant applications. The alloy has been used in the petrochemical, petroleum, paper and food processing industries and has performed well. The alloy is also used for boat propeller shafts, where it is supplied as precision straightened, centreless ground shafting. It is also available as investment castings for uses such as boat fittings.
Temper Condition
Specified Minimum Mechanical Properties
ASTM A564, Bar & Shapes
| Condition | Heat Treatment | 0.2%Y/SMPa
(min) |
T/SMPa
(min) |
Elongation%(min) | Reductionof Area%(min) | HRC (min) | HB(min) | IPC(min) |
| Annealed | 1040°C +/- 15 | – | – | 38 (max) | 363 (max) | – | ||
| H900 | 480°C, 1 hr | 1170 | 1310 | 10 |
40 (<= 75mm) 35 (75 – 200mm) |
40 | 388 | – |
| H925 | 495°C, 4hrs | 1070 | 1170 | 10 | 44 | 38 | 375 | 6.8 |
| H1025 | 550°C, 4hrs | 1000 | 1070 | 12 | 45 | 35 | 331 | 20 |
| H1075 | 580°C, 4hrs | 860 | 1000 | 13 | 45 | 32 | 311 | 27 |
| H1100 | 595°C, 4hrs | 790 | 965 | 14 | 45 | 31 | 302 | 34 |
| H1150 | 620°C, 4hrs | 725 | 930 | 16 | 50 | 28 | 277 | 41 |
| H1400 |
760°C +/- 5, 2hrs 620°C +/- 5, 4hrs |
515 | 795 | 18 | 55 | 24 | 255 | 75 |
Corrosion Resistance
17-4PH has excellent corrosion resistance. It withstands corrosive attack better than any of the standard hardenable alloys and approaches the corrosion resistance of the standard austenitic stainless steel grade 304 in most media.
In rural and mild industrial atmospheres 17-4PH has excellent corrosion resistance. When exposed to sea coast atmospheres 17-4PH will slowly develop an overall light rusting and pitting. It is used successfully in salt water as boat shafting, with cathodic protection.
Physical Properties
| Property |
Range
|
Annealed
|
H900 | H1075 | H1150 |
Unit
|
|---|---|---|---|---|---|---|
|
Density
|
7,750
|
7,810
|
7,830
|
7,860
|
kg/m³
|
|
|
Specific Heat
|
23.0
|
23.0
|
–
|
–
|
W / m. °C
|
|
|
Melting Range
|
1400 – 1440
|
°C
|
||||
|
Coefficient of Thermal Expansion
|
-100 – 20°C
|
–
|
10.4
|
–
|
x 10 -6 / °C
|
|
|
20 – 200°C
|
10.8
|
10.8
|
11.7
|
12.4
|
x 10 -6 / °C | |
|
20 – 425°C
|
11.3
|
11.7
|
12.2
|
13.0
|
x 10 -6 / °C | |
|
Thermal Conductivity
|
100°C
|
18.3
|
W / m. °C
|
|||
|
500°C
|
23.0
|
W / m. °C
|
||||
|
Electrical Resistivity
|
100
|
80
|
80
|
–
|
micro-ohm . m
|
|
|
Magnetic Permeability
|
Approx 95
|
|||||
|
Modulus of Elasticity
|
||||||
|
Tension
|
–
|
200
|
–
|
201
|
GPa
|
|
|
Torsion
|
–
|
77.2
|
69.0
|
69.0
|
GPa
|
Fabrication17-4PH can be cold formed to a limited extent in the annealed condition. Severe cold working should be done in the H1150 condition to reduce the possibility of cracking. The steel should be re-aged after cold forming to restore the best combination of properties.
17-4PH is readily hot forged. During heat treatment or forging, protective atmospheres containing carbon or nitrogen should be avoided. These elements can be absorbed into the steel surface and give soft austenitic skin. If a protective atmosphere is required argon or helium is recommended.
Machinability
17-4PH can be machined in both the solution annealed condition and the precipitation hardened condition. Because the final heat treatment temperature is low, 17-4PH can be machined to final dimension in the annealed condition and then aged without significant dimensional change or scaling unless the component is large, when allowance should be made for contraction on aging.
In the annealed condition machining is only marginally different from 300 series austenitic stainless steels. In the H900 condition the machining rate is 60% of that for annealed material.
Weldability
17-4PH has excellent weldability under production conditions, with procedures similar to 300 series stainless steels. All welding methods can be applied. 17-4PH does not require pre-heat up to 100mm section.
AWS A5.4 E630 Covered Electrodes and AWS A5.9 ER630 filler metals are used for welds of matching strength. For matching corrosion resistance, grade 308 or 309 consumables may be used.
Weld metal properties approach those of the parent metal. Post weld heat treatment is required to achieve full strength. Single pass welds are precipitation hardened, multipass welds must be solution annealed first.
Heat Treatment
The material is usually supplied solution annealed. It can be heat treated to a range of combinations of strength & ductility. Please ask Austral Wright Metals for advice.
Castings
17-4PH can be cast readily by most processes. The cast equivalent to 17-4PH is CB-7Cu-1, as specified in ASTM A747. The properties are slightly inferior to those of wrought material.
Packing & Shipping Informations
| Packing Method | wooden box or ppgabs |
| Weight of package | within 2 Ton each package |
| Loading Port | Shanghai Port, Ningbo Port |
| Loading Quantity | 25 Tons each 20ft /40ft container |
| Trade Term | EXW CIF CFR FOB |
Standard Diameter of our 17-4PH Stainless Steel Bar
| Type | Diameter |
| Hot Rolled Bar | 6mm 8mm 10mm 12mm 14mm 15mm 18mm 20mm 22mm 25mm 28mm 30mm 32mm 35mm 38mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 130mm 140mm 150mm 160mm 170mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm 260mm 270mm 280mm 300mm |
| Bright Bar | 4mm 5mm 6mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 50mm 55mm 60mm or polsihing process large diameter as request |
Our Service for Stainless Steel Bar
| Cutting | We can cutting our bars into any length as request |
| Surface Process | polishing our rod into bright surface |
| Heat Treatment | Solid solution ,aging |

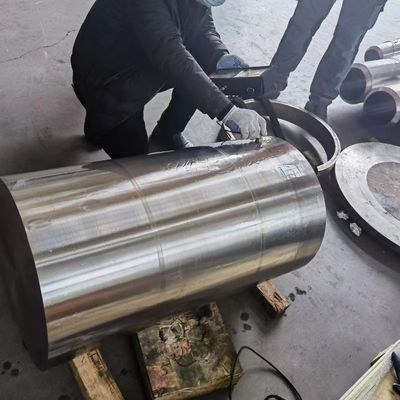

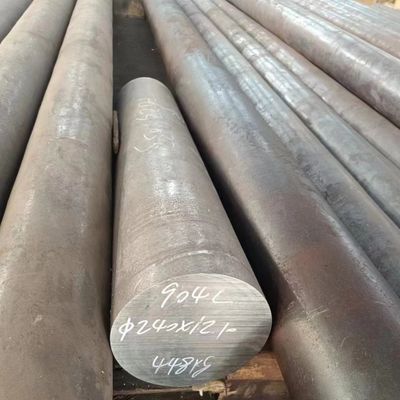

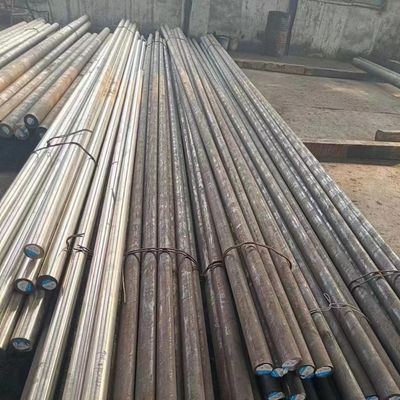

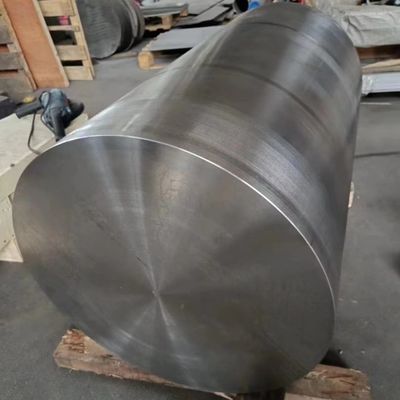

Products Picture
