DX51D+Z Galvanized Coil EN 10204-3.1 Certificate 0.3 - 3.0mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL WISCO |
| Certification | ISO |
| Model Number | DX51D SGCC |
| Minimum Order Quantity | 2 Ton |
| Price | 600-860 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Galvanized Steel Coil | Thickness | 0.3 - 3.0mm |
|---|---|---|---|
| Width | 1000mm 1250mm 1500mm Or As Request | Surface | Regular Spangle, Zero Spangle |
| Zinc Coating | Z40 - Z275 | Brand | BAOSTEEL ANSTEEL |
| Service | Cutting | Coil ID | 508mm |
| Highlight | DX51D+Z galvanized coil,0.3mm Thickness galvanized coil,3mm galvanized sheet coil |
||
Product Description

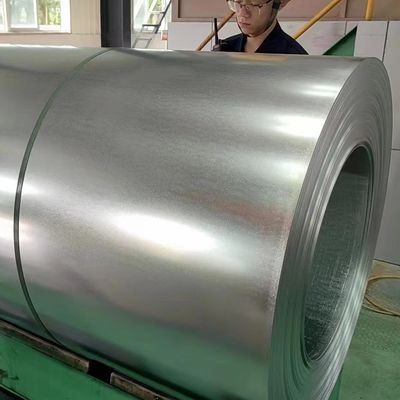

Galvanized Steel Coil DX51D+Z GI Coil with EN 10204-3.1 Certificate 0.3 - 3.0mm Thickness
Galvalume Steel Coil Available Specification
|
GALVANIZED STEEL COIL
|
|
|
Standard
|
ISO,JIS,AS EN,ASTM
|
|
Grade
|
Q195 Q235 Q345
|
|
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570
|
|
|
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
|
|
|
DX51D DX52D DX53D DX54D DX55D DX56D DX57D
|
|
|
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
|
|
|
SS230 SS250 SS275
|
|
|
Width
|
600mm to 1500mm
|
|
Thickness
|
0.125mm to 3.5mm
|
|
Zinc coating
|
40g/m2 to 275g/m2
|
|
Coil weight
|
3 tons to 6 tons
|
|
Coil ID
|
508mm or 610mm
|
|
Surface treatment
|
Unoil,Dry,Chromate Passivated, Non-chromate Passivated
|
|
Spangle
|
Regular Spangle, minimum Spangle,Large Spangle, Zero Spangle
|
|
Capacity
|
1,500,000MT/year
|
|
Delivery
|
15-25 Days
|
|
Spangle
|
Big Medium Small Zero
|
|
Zinc Coating
|
30-275g/m2
|
|
Coil Weight
|
3-8 Tons
|
A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel in areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.
Galvanized Steel Sheet & Coil Material Types
- Commercial Steel (CS Types A, B, and C)
- Forming Steel (FS Types A and B)
- Deep Drawing Steel (DDS Types A and C)
- Extra Deep Drawing Steel (EDDS)
- Structural Steel (SS) – further designated by Grades (33,37,40,50,80)
- High Strength Low Alloy Steel (HSLAS)
Galvanized Steel Size Chart
Product-Coated: Hot Dipped Galvanized | ASTM:A653 | Grade: CS-B | Surface:Min Spangle | Treatment: CT-DryG6028GA (.0217 MAX - .0157 MIN)364860G3030GA (.0187 MAX - .0127 MIN)3648***
| Coating | Thickness | Width | Width | Width |
|---|---|---|---|---|
| G90 | 10GA (.1472 MAX - .1292 MIN) | *** | 48 | 60 |
| 11GA (.1323 MAX - .1143 Min) | *** | 48 | 60 | |
| 12GA (.1174 MAX - .0994 MIN) | *** | 48 | 60 | |
| 13GA (.1014 MAX - .0854 MIN) | *** | 48 | 60 | |
| 14GA (.0865 MAX - .0705 MIN) | 36 | 48 | 60 | |
| 16GA (.0696 MAX - .0575 MIN) | 36 | 48 | 60 | |
| 18GA (.0566 MAX - .0466 MIN) | 36 | 48 | 60 | |
| 20GA (.0506 MAX - .0356 MIN) | 36 | 48 | 60 | |
| 22GA (.0436 MAX - .0296 MIN) | 36 | 48 | 60 | |
| 24GA (.0316 MAX - .0236 MIN) | 36 | 48 | 60 | |
| 26GA (.0247 MAX - .0187 MIN) | 36 | 48 | 60 |
Galvanized Steel Finishes
Additionally, the Hot Dipped Galvanized and the Galvannealed products are available in a variety of coating weights including G-90, G-60, G-40, and G-30 for the Hot Dipped Galvanized products, and A-60 and A-40 for the Galvannealed products.
At Curtis Steel, we also offer two different finishes on our 26 & 28-gauge galvanized steel sheet & coils.
Typical Galvanized Steel Sheets & Coil Applications:
- Exterior building products
- Ductwork
- HVAC products
- Flashing
- Electrical boxes and other electrical products
- Roofing
- Doors
- Sashes
- Automotive parts
- Appliances
- Commercial and residential steel framing
- Parking lots
- Truss plates
- Metal building purlins
- Any other products requiring a corrosion-resistant material
The reason why you choose us
(1): High quality Galvanized steel coil with reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing ely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Domestic Market(50.00%),South America(20.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless steel,Carbon steel,Galvanized,PPGI,PPGL
4. why should you buy from us not from other suppliers?
Our company are specialized in steel field for over more than 15 years Annual average sales of more than 600 million yuan The products are sold well in Russia,Vietnam,Kazakhstan,South Korea and South America
