303Cu Stainless Steel Round Bar Diameter 5 - 250mm AISI303CU Soft Annealing Stainless Rod
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | stainless steel round bar,stainless steel bar stock,steel round bar |
||
Product Description

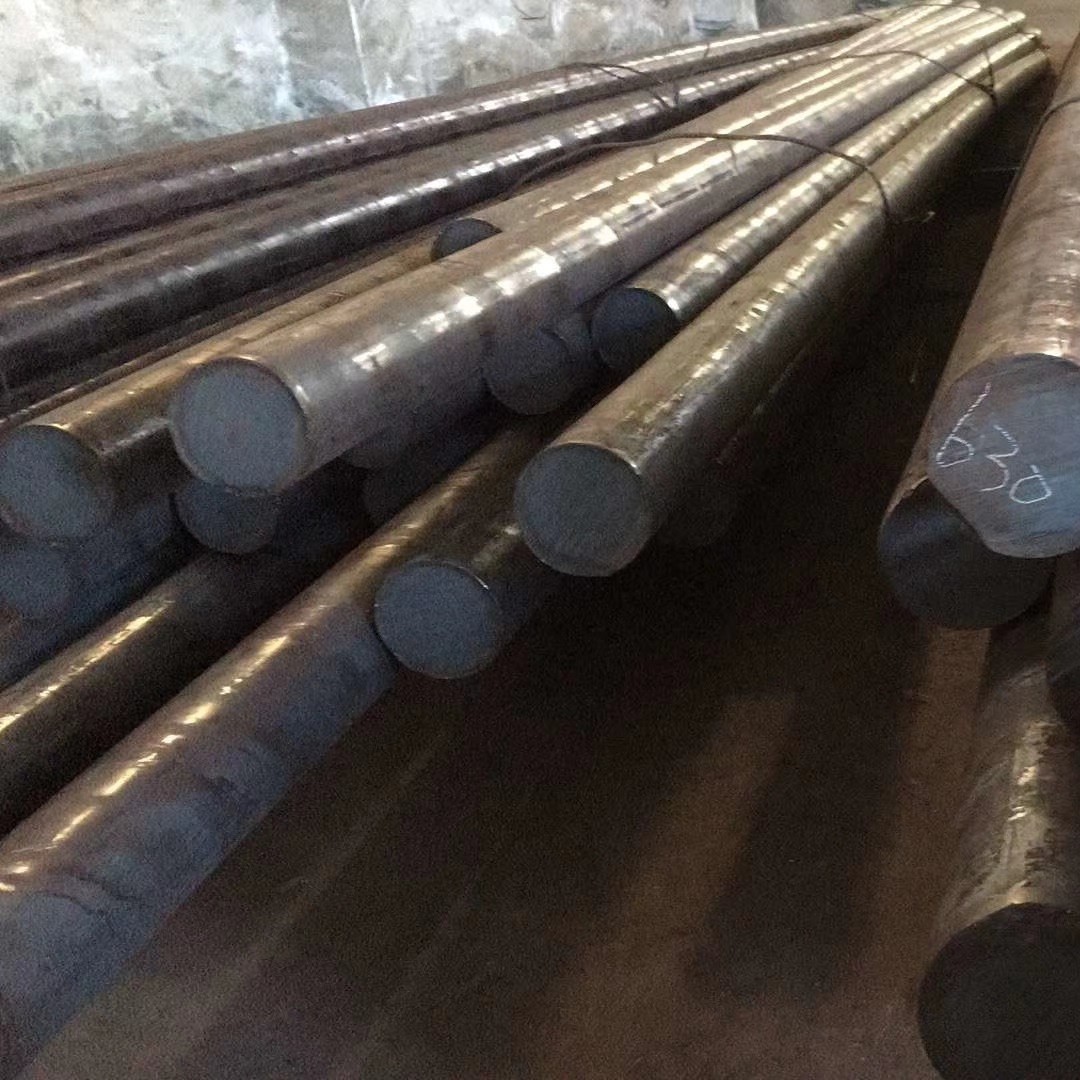

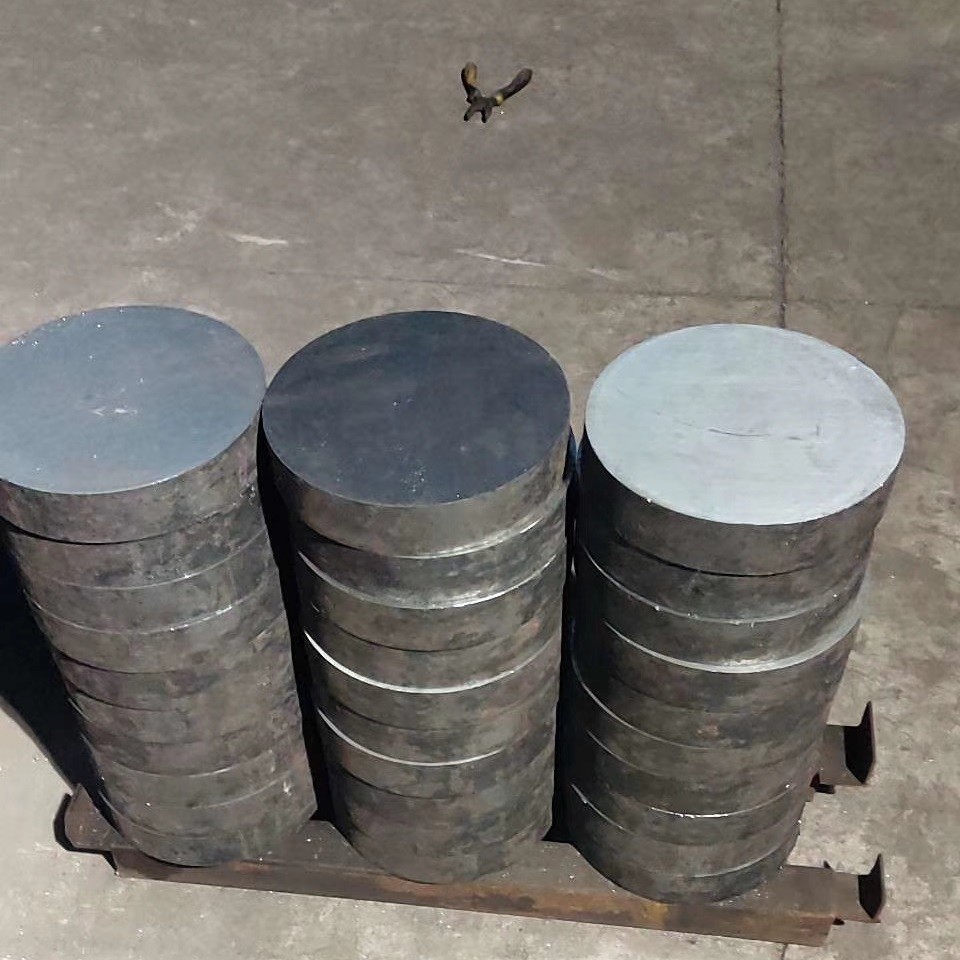

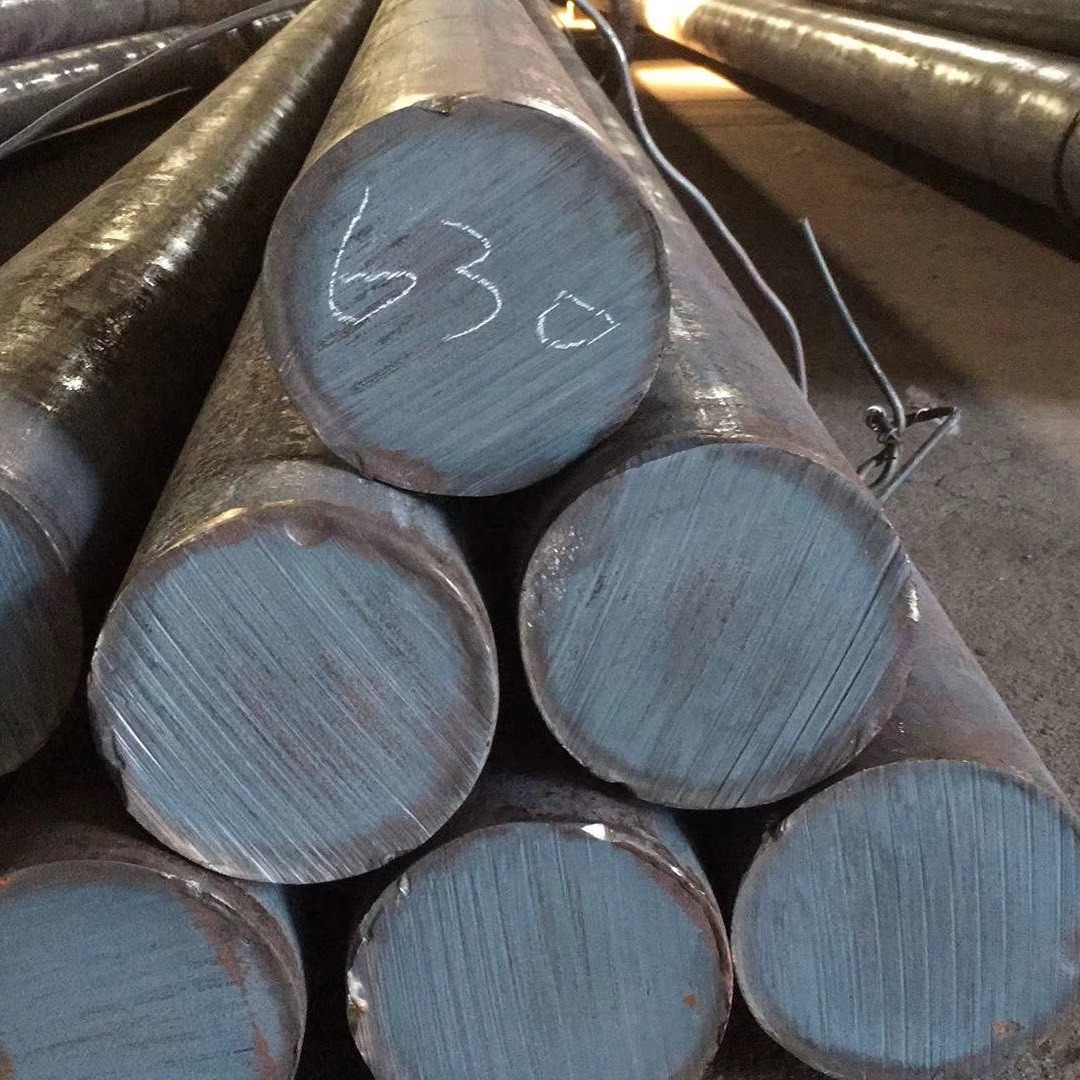

303Cu Stainless Steel Round Bar Diameter 5 - 250mm AISI303CU Soft Annealing Stainless Rod
| Products | Stainless Steel Bar |
| Grade | 303Cu |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 431 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
GENERAL PROPERTIES
Alloy 303 is a non-magnetic, austenitic stainless steel that is not hardenable by heat treatment. It is the free machining modification of the basic 18% chromium / 8% nickel stainless steel. Alloy 303 was specially designed to exhibit improved machinability while maintaining good mechanical and corrosion resistant properties Due to the presence of sulfur in the steel composition, Alloy 303 is the most readily machineable austenitic stainless steel; however, the sulfur addition does lower Alloy 303’s corrosion resistance to below that of Alloy 304. Like other austenitic grades, Alloy 303 demonstrates excellent toughness, although the sulfur does reduce this a little as well.
APPLICATIONS
Alloy 303 is frequently used in applications that require parts to be heavily machined. Some examples include:
- Nuts and bolts
- Aircraft fittings
- Gears
- Screws
- Shafts
- Electrical switchgear components
- Bushings
STANDARDS – ALLOY 303
ASTM/ASME ……………. UNS S30300
EURONORM ……………. FeMi35Cr20Cu4Mo2
DIN ………………………… 2.4660
CORROSION RESISTANCE
- Good resistance to mildly corrosive atmospheres, but significantly less than Alloy 304
- When additional sulfur is added to improve machinability, it can often slightly reduce corrosion resistance
- In most dry and mild corrosive environments, Alloy 303 is comparable to other unmodified alloys
- Should not be exposed to moist, marine environments as it is subject to rapid-pitting corrosion and a rust film will tend to form
- Like other common austenitic stainless steels, it is subject to corrosion cracking in chloride environments above 60oC
HEAT RESISTANCE
- Good oxidation resistance at temperatures up to 1700oF (927 oC)
- Continuous use at temperatures above 1400oF (760oC) is not usually recommended due to carbide precipitation which can lead to irregular scaling
- Does not have a low carbon content so it is also vulnerable to sensitisation
WELDING CHARACTERISTICS
- Not generally recommended, but may be welded with some difficulty
- May be welded with Alloy 310 electrodes
- Should be annealed after welding to re-dissolve precipitated carbides
MACHINABILITY
- High machining rates can be obtained in the annealed condition with hardness in the range of 200 to 240 Brinell
- Will work harden, therefore, it should be machined at reduced surface feet per minute and heavier feeds to prevent glazing at the tool interface.
Chemical Properties:
Mechanical Properties:
Physical Properties:
