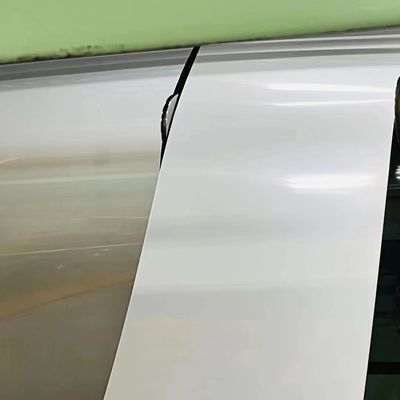

ASTM A276 Grade 303 Stainless Steel Plate AOD Annealing SS Plate UNS S30300 0.5 - 10.0mm Thickness

Product Details

Products	Stainless Steel Plate	Grade	303
Width	1500mm 1219mm 1000mm	Surface	NO.1 2B
Brand	POSCO TISCO BAOSTEEL	Standard	ASTM A240/240M
Loading Port	Shanghai Port	Thickness	0.6 - 30.0mm
Highlight	stainless plate , ss plate , custom stainless steel plates

Leave a Message

Product Description

specifications	ASTM A240 / ASME SA240, EN 10088-2
Standard	ASME, ASTM, DIN, BS, EN
Thickness	1 to 200mm
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, etching, BA,, NO.4, NO.8, Brush, NO.1, mirror, 8K, hair line, embossed, 2D, checkered, sand blast, etc
Origin	China
Technique	Cold Rolled and Hot Rolled
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc
Stainless Steel Sheet Finish	Cold rolled sheet (CR), SATIN (Met with Plastic Coated), BA NO(8), Hot rolled plate (HR), 2B, 2D
MTC	Available as per EN 10204 3.1, Mill Test Certificate
Brand Name	TISCO BAOSTEEL POSCO JISCO LISCO
Container	40ft HC: 12032m
Form	Coils, Foils, Shim Sheets, Rolls, Plain Sheets, Ring (Flange), Strip, Perforated Sheets, Blank (Circle), Chequered Plate, Flats, etc.
Price term	CFR, Ex-Work, FOB, CNF, CIF
Size	40ft GP: 12032mm x 2352mm x 2393mm
Size	20ft GP: 5898mm x 2352mm x 2393mm

Detail Size of 303 Stainless Steel Plate We have

Grade

303

Thickness

Cold rolled: 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm

Hot Rolled : 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm

Standard Size

1000*2000mm 1219*2438mm 1500*6000mm

Alloy 303 (UNS S30300) is anaustenitic stainless steel developedfor applications requiring extensivemachining operations. The alloy hasa sulfur addition which assists inbreaking up turnings while reducingdrag on the cutting tool whencompared to the machiningcharacteristics of the conventional18-8 stainless steels.The alloy is nonmagnetic in theannealed condition, but maybecome slightly magnetic as aresult of cold working. The additionof sulfur negatively impacts thecorrosion resistance of 303 makingit less resistant than 304 to mildlycorrosive environments.

Grade Specification

ASTM/ASME ……………. UNS S30300

EURONORM ……………. FeMi35Cr20Cu4Mo2

DIN ………………………… 2.4660

Chemical Properties:

%	Cr	Ni	C	Si	Mn	P	S	Mo	Fe
303	min: 17.0 max:19.0	min: 8.0 max: 10.0	0.15 max	1.00 max	2.0 max	0.20 max	0.15 min	0.75	balance

Mechanical Properties:

Grade	Tensile Strength ksi (min.)	Yield Strength 0.2% Offset ksi (min.)	Elongation - % in 50 mm (min.)	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
303	75	30	35	228

Alloy 303 is frequently used in applications that require parts to be heavily machined. Some examples include:

ASTM A276 Grade 303 Stainless Steel Plate AOD Annealing SS Plate UNS S30300 0.5 - 10.0mm Thickness 0
