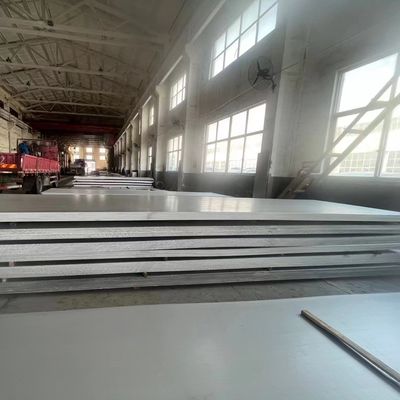

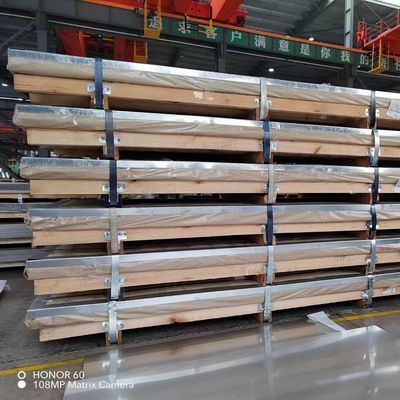

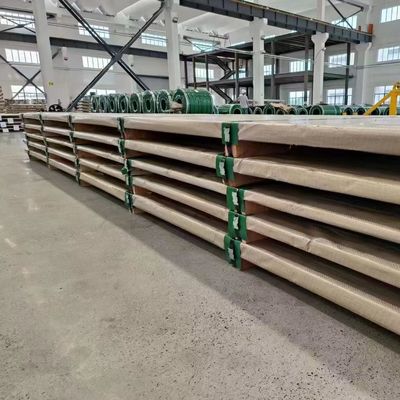

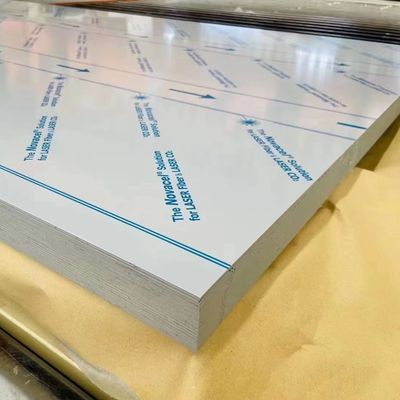

Hot Rolled Stainless Steel Plate 304L / UNS S30403 SS Plate from BAOSTEEL 5FT*20FT
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | UNS S30403 / 304L |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-6000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | UNS S30403 / 304L |
|---|---|---|---|
| Width | 1500mm 1219mm 1000mm | Surface | NO.1 2B |
| Brand | POSCO TISCO BAOSTEEL | Standard | ASTM A240/240M |
| Loading Port | Shanghai Port | Thickness | 0.6 - 30.0mm |
| Highlight | stainless plate,ss plate,custom stainless steel plates |
||
Product Description
Hot Rolled Stainless Steel Plate 304L / UNS S30403 SS Plate from BAOSTEEL 5FT*20FT
Specification of SS 304L plate
|
specifications
|
ASTM A240 / ASME SA240, EN 10088-2 |
|---|---|
|
Standard
|
ASME, ASTM, DIN, BS, EN |
|
Thickness
|
1 to 200mm |
|
Length
|
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
|
Surface
|
2B, etching, BA,, NO.4, NO.8, Brush, NO.1, mirror, 8K, hair line, embossed, 2D, checkered, sand blast, etc |
|
Origin
|
China |
|
Technique
|
Cold Rolled and Hot Rolled |
|
Width
|
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc |
|
Stainless Steel Sheet Finish
|
Cold rolled sheet (CR), SATIN (Met with Plastic Coated), BA NO(8), Hot rolled plate (HR), 2B, 2D |
|
MTC
|
Available as per EN 10204 3.1, Mill Test Certificate |
|
Brand Name
|
TISCO BAOSTEEL POSCO JISCO LISCO |
|
Container
|
40ft HC: 12032m |
|
Form
|
Coils, Foils, Shim Sheets, Rolls, Plain Sheets, Ring (Flange), Strip, Perforated Sheets, Blank (Circle), Chequered Plate, Flats, etc. |
| Price term | CFR, Ex-Work, FOB, CNF, CIF |
|
Size
|
40ft GP: 12032mm x 2352mm x 2393mm |
| 20ft GP: 5898mm x 2352mm x 2393mm |
Detail Size of 304L Stainless Steel Plate We have
| Grade | 304L / S30403 |
| Thickness |
Cold rolled: 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm Hot Rolled : 4.0mm 5.0mm 6.0mm 8.0mm 10.0mm 12.0mm 14.0mm 16.0mm 20.0mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm |
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm |
Type 304L Stainless Steel
Type 304L stainless steel is an extra-low carbon version of the 304 steel alloy. The lower carbon content in 304L minimizes deleterious or harmful carbide precipitation as a result of welding. 304L can, therefore, be used "as welded" in severe corrosion environments, and it eliminates the need for annealing.
This grade has slightly lower mechanical properties than the standard 304 grade, but is still widely used thanks to its versatility. Like Type 304 stainless steel, it's commonly used in beer-brewing and wine-making, but also for purposes beyond the food industry such as in chemical containers, mining, and construction. It is ideal for use in metal parts such as nuts and bolts that are exposed to salt water.
304 Stainless Physical Properties:
- Density: 8.03g/cm3
- Electrical resistivity: 72 microhm-cm (20C)
- Specific Heat: 500 J/kg °K (0-100°C)
- Thermal conductivity: 16.3 W/m-k (100°C)
- Modulus of Elasticity (MPa): 193 x 103 in tension
- Melting Range: 2550-2650°F (1399-1454°C)
Type 304 and 304L Stainless Steel Composition:
| Element | Type 304 (%) | Type 304L (%) |
| Carbon | 0.08 max. | 0.03 max. |
| Manganese | 2.00 max. | 2.00 max. |
| Phosphorus | 0.045 max. | 0.045 max. |
| Sulfur | 0.03 max. | 0.03 max. |
| Silicon | 0.75 max. | 0.75 max. |
| Chromium | 18.00-20.00 | 18.00-20.00 |
| Nickel | 8.00-10.50 | 8.00-12.00 |
| Nitrogen | 0.10 max. | 0.10 max. |
| Iron | Balance | Balance |
Application of 304L Stainless Steel Plate
Alloy 304L Stainless Steel is used in a wide variety of home and commercial applications, including:
- Food processing equipment, particularly in beer brewing, milk processing, and wine making
- Kitchen benches, sinks, troughs, equipment, and appliances
- Architectural trim and molding
- Automotive and aerospace structural use
- Construction material in large buildings
- Chemical containers, including for transport
- Heat exchangers
- Nuts, bolts, screws, and other fasteners in the marine environment
- Dyeing industry
- Woven or welded screens for mining, quarrying & water filtration
