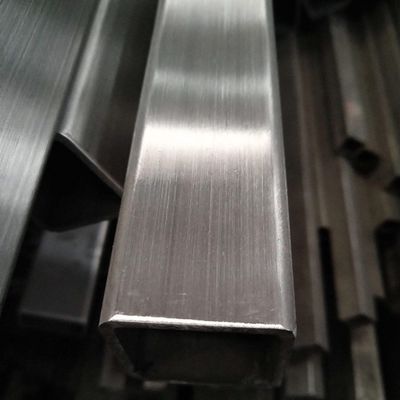

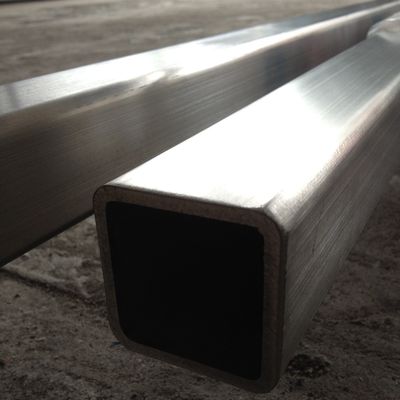

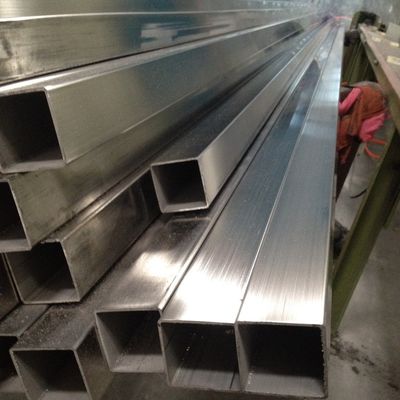

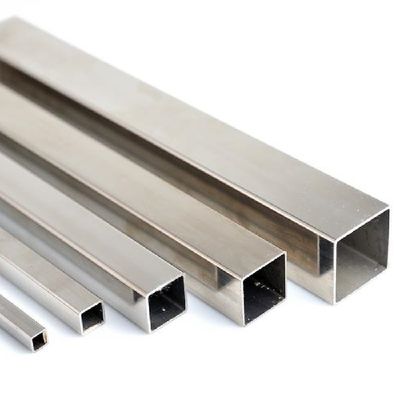

ASTM A554 Hairline Finish Stainless Steel Square Pipe Tube for Handrail and Food Grade 304 316L 400# 600# 800# Polished
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sauqre Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or As Request |
| Diameter | 5*5 - 400*400mm Custom As Request | Wall Thickness | 0.4 - 16.0mm |
| Type | Welded Pipe | Service | Cutting |
| Other Shape | Square, Rectangle,Round | ||
| Highlight | Handrail Stainless Steel Square Pipe |
||
Product Description
ASTM 554 Hairline Finish Stainless Steel Square Pipe Tube for Handrail and Food Grade 304 316L 400# 600# 800# Polished
316 Stainless Steel Welded Tubes
The most used material grade for this specification of pipes is the ASTM A554 304 Tube. Since 304 is a cost effective material, it is used the most to producing these pipes. The ASTM A554 Tube Dimensions can change from schedule to schedule. The wall thicknesses change with the pipe’s nominal sizes and in this specification, the wall thickness can range up to 51mm. The Stainless Steel Welded Tube ASTM A554 is good to be used with welded applications. The A554 Stainless Steel Tube can come in different grades of ASTM A554 Tubing such as the ASTM A554 Tp304 , the ASTM A554 Tp409, the ASTM A554 Type 316, or the ASTM A554 Mt304. Each of them has specific characteristics. For example, the ASTM A554 Grade Mt 316l has molybdenum in its composition with lower carbon content which makes it much corrosion resistant and stronger. Our ASTM A554 Stainless Steel Tubing is very competitive in pricing and quality. Please contact us for further details.
A554 Tubing Specification
Select your size and length in of A554 Grade Mt 316L Rectangular Tube
| Grades | ASTM A554 MT304/ MT304L/ MT316L / MT309S / MT310 / MT310S / MT308 / MT202 / MT321 / MT347 / MT430. |
| Size Range | ½" to 8" Dia |
| Wall Thickness | 0.049" to 0.375" |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition (Welded) | Cold reduced and annealing, Annealed and Pickled (AP), cold reduced |
| Surface Finish | Polished 180 grit, polished 320 grit, Mill finish |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Value Added Services |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Tolerance |
|
| Test Certificate |
|
| Packing | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
| Port | Shanghai, China |
ASTM A554 grade mt304/ 304L sizes and weight (Square Shape)
| GAUGE | 18 | 16 | 14 | 11 | 7 | 1/4 | 3/8 |
|---|---|---|---|---|---|---|---|
| INCHES | 0.049 | 0.065 | 0.083 | 0.120 | 0.180 | 0.250 | 0.375 |
| 1/2 | 0.30 | 0.39 | |||||
| 5/8 | 0.38 | 0.40 | |||||
| 3/4 | 0.50 | 65.00 | 0.81 | 1.13 | |||
| 1 | 0.63 | 0.83 | 1.03 | 1.45 | 2.17 | ||
| 1-1/4 | 0.82 | 1.08 | 1.37 | 1.93 | 2.99 | ||
| 1-1/2 | 0.97 | 1.27 | 1.61 | 2.26 | 3.63 | 4.41 | |
| 1-3/4 | 1.13 | 1.49 | 1.88 | 2.66 | 3.75 | ||
| 2 | 1.30 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 2-1/2 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 3 | 3.29 | 4.97 | 6.90 | 9.35 | |||
| 3-1/2 | 5.67 | 8.06 | 10.89 | ||||
| 4 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 5 | 8.02 | 11.90 | 16.35 | 23.53 | |||
| 6 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 8 | 26.03 | 38.55 |
ASTM A554 Rectangular Tube Size Chart
GAUGE |
18 | 16 | 14 | 11 | 7 | 1/4 | 3/8 |
|---|---|---|---|---|---|---|---|
INCHES |
0.049 | 0.065 | 0.083 | 0.120 | 0.180 | 0.250 | 0.375 |
| 1/2 x 3/4 | 0.38 | 0.05 | |||||
| 1/2 x 1 | 0.50 | 0.65 | 0.82 | 1.13 | |||
| 1/2 x 1-1/2 | 0.63 | 0.83 | 1.03 | 1.45 | |||
| 1/2 x 2 | 0.82 | 1.08 | 1.37 | 1.93 | 2.09 | ||
| 3/4 x 1 | 0.56 | 0.74 | 0.92 | 1.29 | |||
| 3/4 x 1-1/4 | 0.63 | 0.83 | 1.03 | 1.45 | 2.17 | ||
| 3/4 x 1-1/2 | 0.99 | 1.25 | 1.77 | ||||
| 3/4 x 2 | 0.89 | 1.17 | 1.48 | 2.09 | |||
| 1 x 1-1/4 | 0.99 | 1.25 | 1.77 | ||||
| 1 x 1-1/2 | 0.82 | 1.08 | 1.37 | 1.93 | |||
| 1 x 2 | 0.97 | 1.27 | 1.51 | 2.26 | 3.63 | ||
| 1 x 2-1/2 | 1.49 | 1.88 | 2.66 | ||||
| 1 x 3 | 1.30 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 1 x 4 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 1-1/2 x 2 | 1.49 | 1.88 | 2.66 | ||||
| 1-1/2 x 2-1/2 | 1.30 | 1.69 | 2.14 | 3.06 | 4.46 | 6.01 | |
| 1-1/2 x 3 | 1.93 | 2.45 | 3.48 | 5.28 | |||
| 1-1/2 x 4 | 1.81 | 2.38 | 3.03 | 4.33 | 5.30 | 7.58 | |
| 2 x 3 | 2.72 | 3.88 | 5.68 | 7.67 | |||
| 2 x 4 | 3.29 | 4.97 | 6.90 | 9.35 | 13.64 | ||
| 2 x 5 | 5.67 | 8.06 | 10.89 | ||||
| 2 x 6 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 2 x 8 | 8.02 | 11.90 | 16.35 | 23.53 | |||
| 2 x 10 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 3 x 4 | 5.67 | 8.06 | 10.89 | ||||
| 3 x 5 | 6.26 | 9.27 | 12.68 | 18.52 | |||
| 3 x 6 | 7.22 | 10.52 | 13.80 | 21.03 | |||
| 4 x 6 | 8.02 | 11.90 | 16.35 | 23.35 | |||
| 4 x 8 | 9.46 | 14.07 | 18.77 | 28.53 | |||
| 4 x 10 | 22.71 | 33.54 | |||||
| 4 x 12 | 26.03 | 38.55 | |||||
| 6 x 8 | 22.51 | 33.35 | |||||
| 6 x 10 | 26.27 | 38.91 |
