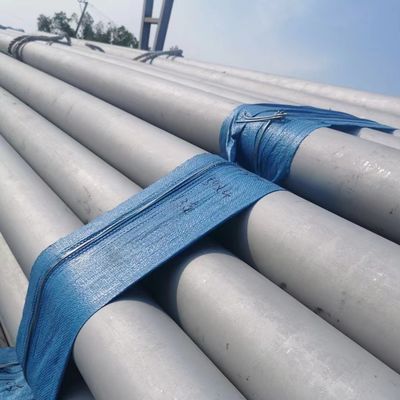

ASTM B163 Nickel Alloy Seamless Tube Pipe UNS N07718 Inconel 718 In 6m Cutting
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS N07718 / Inconel 718 / 2.4668 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Pipe | Grade | UNS N07718 / Inconel 718 / 2.4668 |
|---|---|---|---|
| Diameter | OD6 - 1020mm | Length | 6m Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Thickness | 0.5 - 40.0mm |
| Highlight | Nickel Alloy Seamless Tube Pipe,UNS N07718 Nickel Tube |
||
Product Description
ASTM B163 UNS N07718 Inconel 718 Seamless Tube Pipe in 6m length Customs Cutting Any Length
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy Pipe |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
|
Grade |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
|
Hastelloy B/UNS N10001, Hastelloy B-2/UNS N10665/DIN W. Nr. 2.4617, Hastelloy C, Hastelloy C-4/UNS N06455/DIN W. Nr. 2.4610, Hastelloy C22/UNS N06022/DIN W. Nr. 2.4602, Hastelloy C276/UNS N10276/DIN W. Nr. 2.4819, Hastelloy X/UNS N06002/DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725, Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60 | |
| Nimonic: Nimonic 75/80A/90/A263 | |
|
Specification |
Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
|
Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
Nickel Alloy 718, frequently called Inconel® 718, is a precipitation hardenable corrosion and heat-resistant nickel alloy available in bars, forgings, sheets and plates. AMS 5662 and AMS 5663 limit sizes 10” and less between parallel sides with maximum cross-section area of 78 in2 for bars and finished forgings. It is a multiple melted alloy including VIM and/or VAR processes.
Alloy 718 (UNS N07718, 2.4668) is a high-strength, corrosion-resistant nickel chromium alloy. The additions of Nb, Ti and Al form a series of precipitates with Ni during the controlled solution annealing and ageing process steps, resulting in a significant increase in strength and hardness of this alloy compared with alternative nickel alloys. It can be supplied in a variety of different strength levels or conditions, depending upon the extent of the ageing heat treatment. The most common strength level is a yield strength greater than 120ksi, although a 150ksi variant has also been developed.
The alloy is widely used in the Oil and Gas and chemical production industries on account of its high strength and resistance to chlorides, stress corrosion and sulphide stress cracking. Applications include valve trim, pump shafts and down-hole components. Alloy 718 is also used in jet engine and high-speed airframe parts such as wheels, spacers and buckets plus high-temperature bolts and fasteners, although more commonly supplied against the AMS 5662/AMS5663 aerospace standards rather than API 6CRA for this application.
Inconel is a trademark of Special Metal Inc, covering a family of nickel-chromium alloys.
| Chemical Composition Limits | ||||||||||||||||
| Weight % | C | Mn | P | S | Si | Cr | Ni | Mo | Cb | Ta | Ti | Al | Co | B | Cu | Fe |
| Alloy 718 AMS 5662 |
0.08 | 0.35 | 0.015 | 0.015 | 0.35 | 17-21 | 50-55 | 2.8-3.30 | 4.75-5.50 | 0.05 | 0.65-1.15 | 0.20-0.80 | 1.00 | 0.006 | 0.30 | Rem |
Typical Mechanical Properties
There are two main types of solution annealed and aging treatments:
1)
Solution Treatment (AMS 5662 Bar / AMS 5596 Sheet): 1725°F - 1850°F + Air Cool.
Heat Treatment (AMS 5663 Bar) : 1325°F for 8 hrs, cooling 100°F/hr to 1150°F, hold at 1150°F for 8hrs min, + Air Cool .
This treatment gives the highest room temperature tensile and yield strengths as well as producing the highest fatigue strength. It is the optimum heat treatment for Alloy 718 where a combination of rupture life, notch rupture life and rupture ductility is required.
2)
Alternative Solution Treatment (AMS 5664 Bar / AMS 5597 Sheet): 1900°F - 1950°F + Air Cool
Heat Treatment: 1400°F for 10hrs, furnace cool to 1200°F, hold at 1200°F for a total aging time of 20 hrs + Air Cool.
This is the prefered treatment in tensile-limited applications as it produces the best transverse ductility in heavy sections, impact strength and low temperature notch tensile strength. However, this treatment has a tendency to produce notch brittleness in stress rupture.
Specifications
UNS N07718
Werkstoff Nr 2.4668
AMS 5596 Sheet, Strip and Plate
AMS 5597 Sheet, Strip and Plate
AMS 5589 Seamless Tube
AMS 5590 Seamless Tube
AMS 5662 Bars, Forgings and Rings
AMS 5663 Bars, Forgings and Rings
AMS 5664 Bars, Forgings and Rings
AMS 5832 Welding Wire
ASTM B637 Forgings
ASTM B670 Plate, Sheet and Strip
AFNOR NC 19 Fe Nb,
MSRR 7115 and MSRR 7116
Inconel 718 (trademark)
FMC Spec M40110, M40118, M40125, M40902, M40908, M40909, M40910
NACE MR-0175/ISO 15156
