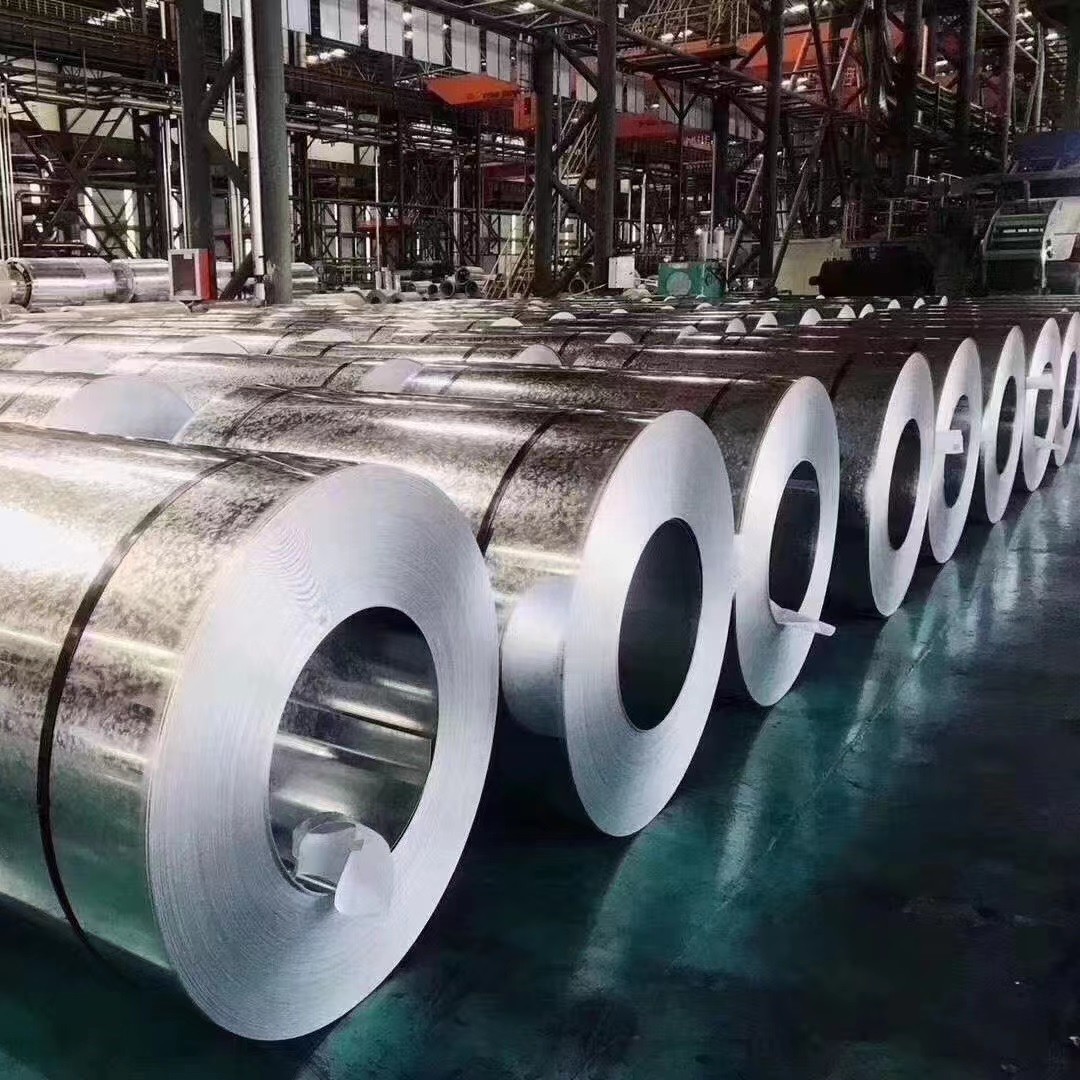

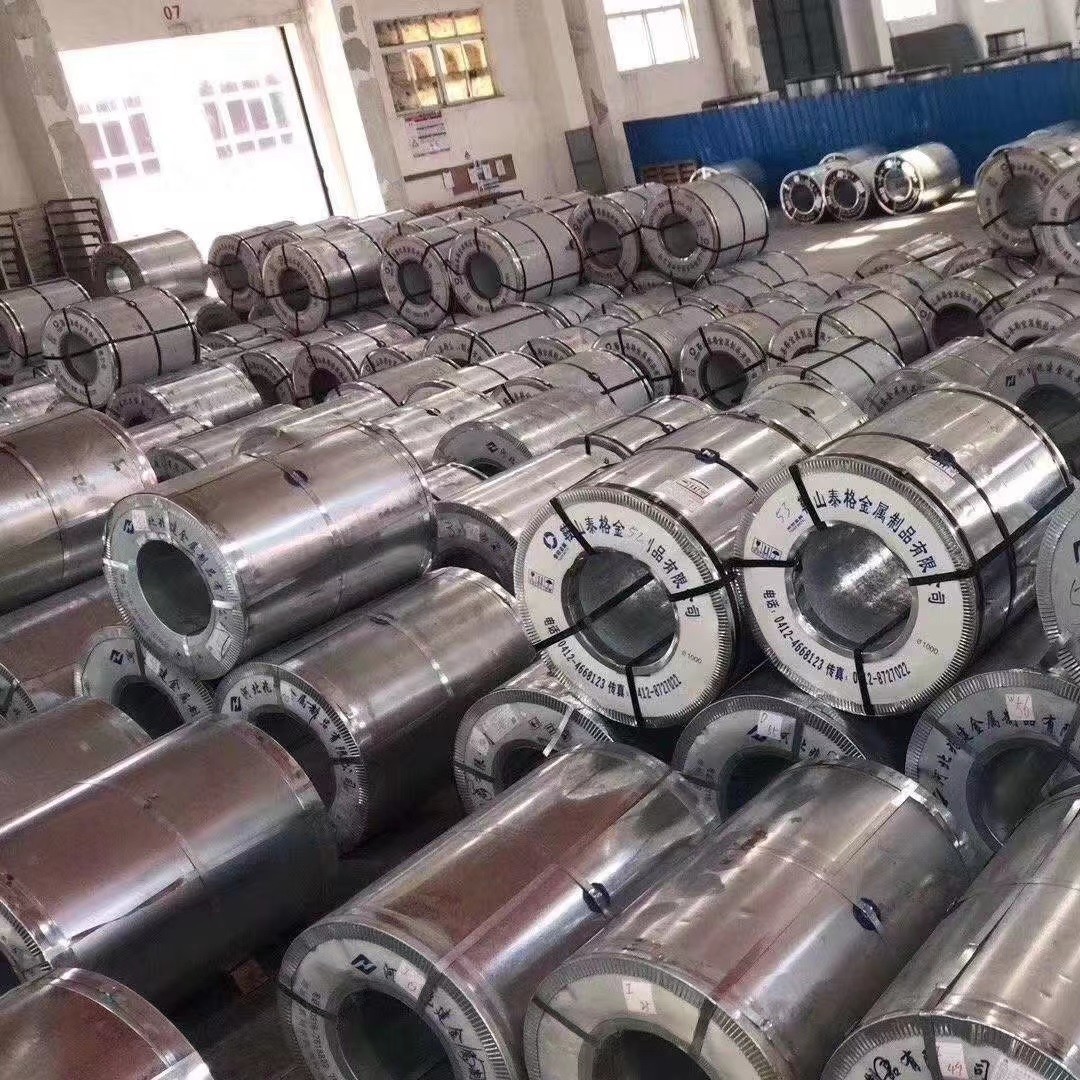

0.6 - 3.0mm Galvanized Steel Coil Sheet Matt Z275 G90
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL WISCO |
| Certification | ISO |
| Model Number | DX51D SGCC |
| Minimum Order Quantity | 2 Ton |
| Price | 600-850 USD/Ton |

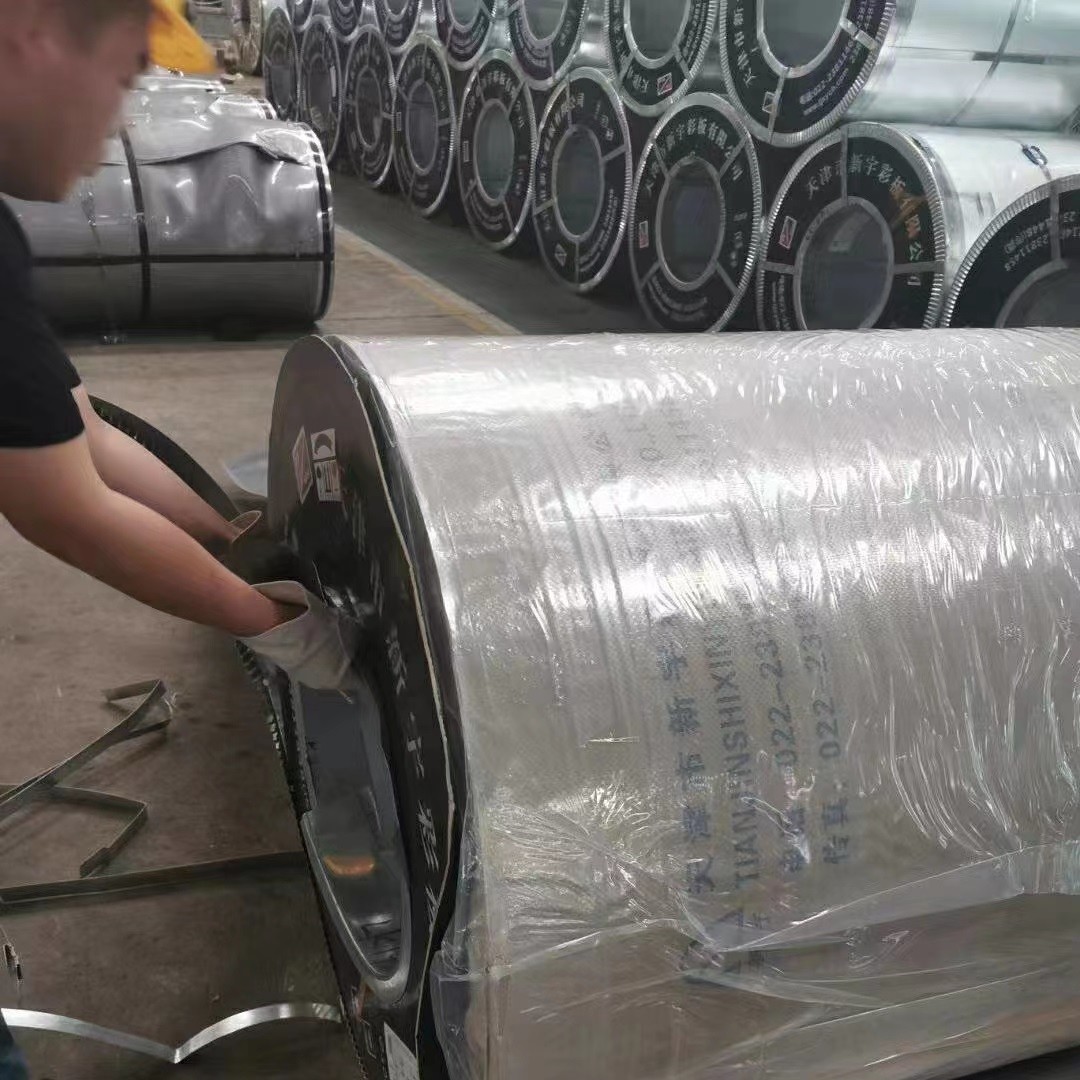

| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Galvanized Steel Coil | Thickness | 0.3 - 3.0mm |
|---|---|---|---|
| Width | 1000mm 1250mm 1500mm Or As Request | Surface | Regular Spangle, Zero Spangle |
| Zinc Coating | Z40 - Z275 | Brand | BAOSTEEL ANSTEEL |
| Service | Cutting | Coil ID | 508mm |
| Highlight | Matt Galvanized Steel Coil Sheets,Z275 Galvanized Steel Coil Sheet,3.0mm Galvanized Steel Coil Sheet |
||
Product Description
Thickness 0.6 - 3.0mm Thickness Z275 Galvanized Steel Coil & Sheet G90 Steel Coil
| Material | SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 |
| SGHC SGH340 SGH400 SGH440 SGH490 SGH540 | |
| DX51D DX52D DX53D DX54D DX55D DX56D DX57D | |
| S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD | |
| SS230 SS250 SS275 | |
| Thickness | 0.12 - 3.5 mm |
| Width | 600 mm to 1500 mm |
| Zinc coating | 40 - 275 g / m2 |
| Coil Internal Diameter | 508 / 610 MM |
| Coil Weight | 3 - 5 Tons |
| Annual Output Quantity | 1,500,000 MT |
| Hardness | Soft hard (60), medium hard (HRB60-85) , full hard (HRB85-95) |

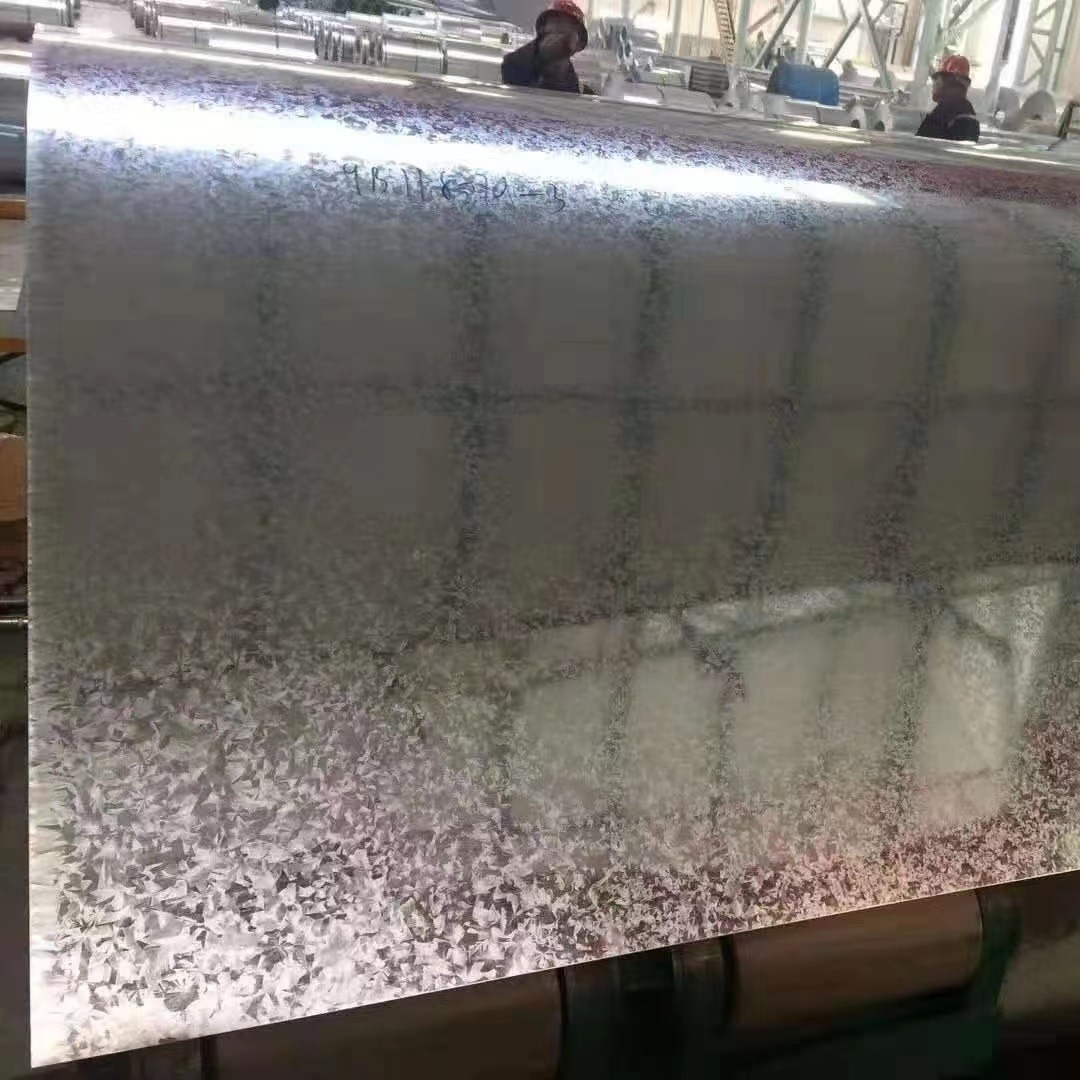

| Surface structure | Norma, Matt, PVC film, wood grain, Flower Grained, embossed, etc |
| Color chart | RAL color number |
What is a Z275 galvanized steel coil?
Galvanized steel coil Z275 is a carbon steel sheet coated with zinc on both sides. This is produced through a metal coating process that passes cold rolled coils through a bath filled with molten zinc.
This continuous hot dipping or also referred to as electro-galvanizing is the primary process that these carbon steel sheets have to go through to produce coil and galvanized sheets.
The process is made up of an application of zinc through electrolytic disposition. After the sheet is subjected to this, a layer of zinc adheres to the base metal via an iron and zinc bonding layer.
A zinc coating is a well-known and effective way of adding a layer of protection against bare steel from the natural elements that cause corrosion. Not only will zinc play the role of a barrier between the environment and the steel, but it will also allow itself to decompose first to protect the steel underneath and promote its longevity.
What does Z275 mean?
Z275 refers to the coated steel sheet’s coating weight designation.
Today, the ASTM standard dictates and defines the type of coating for these products. For instance, the most common ASTM standard on the market today is A653A or A653M; this covers all hot-dip galvanized merchandise.
The standard’s number indicates the weight of zinc applied on the surface of the steel sheet.
Aside from the ASTM standard, there is also the SI Metric system. Both systems are similar, except that the SI system converts the inch and pound weight into ounces per square foot (oz/ft2) to the SI standard of the mass in grams per square meter (g/m2).
Here is a sample conversion directly associated with Z275:
1 oz/ft2 is equal to 305.15 g/m2
And to convert from ASTM standard to SI system, you need to multiply by 305.15
So if the ASTM weight designation is G90 (0.90 oz/ft2) , it will become Z275 (275 g/m2) in STI.
Z275 will directly be translated to a steel product with a Zinc coating, and the 275 as the weight of zinc applied on the surface of the steel.
