SCH5 SCH10 304 Stainless Steel Pipe ERW Welded Stainless Pipe OD10 - 406mm for Structure
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 321 310S 314 2205 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Welded Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | Random Length Of 6m |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Welded Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | SCH5 304 Stainless Steel Pipe,Structure 304 Stainless Steel Pipe,ERW Welded 304 Stainless Steel Pipe |
||
Product Description
SCH5 SCH10 304 Stainless Steel Pipe ERW Welded Stainless Pipe OD10 - 406mm for Structure
Stainless Steel Welded Pipe
| Product: | Stainless steel welded pipe, stainless steel erw pipe, stainless steel efw pipe |
| Application: | In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry |
|
Size:
|
OD: 2" - 48" |
| WT: 5S, 10S, STD, XH, 40, 80, 100, 120, 160, XXH | |
| LENGTH: Single Random, Double Random, Cut Length max to 23m | |
| Standard | ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778 |
| Grades | 201, 304/304L, 316/316L, 317/317L, 347/347H, 321/321H, 904L |
| Surface | Annealed, Pickling, Polished |

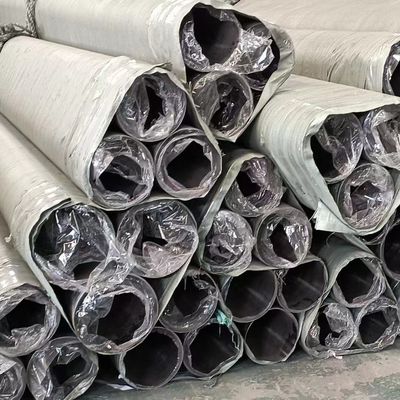

| Packing |
Waterproof Paper Wrapped, Packed in Wooden Cabins |
stainless steel welded pipe is corrosion resistant and this type of material is extremely durable in harsh conditions. This type of pipe is popular in industrial applications in the following industries:
Chemical, Food and beverage,Marine,Mining,Oil and gas,Pharmaceutical,Petrochemical,Power generation,Renewable energy.
| Product | Stainless Steel Welded Pipe |
| Size | Outside Diameter: 2" - 48" |
| Wall Thickness: 5S, 10S, STD, XH, 40, 80, 100, 120, 160, XXH | |
| Standard | ASTMA312/A1016/A269/A268/A789/A632/A250/A270/A358/A688/A814/A409 |
| EN10216/EN10297/JIS G3448/G3459/G3463 | |
| Grades | 200 series:201,202.204Cu. |
|
300series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310, 310S,316,316L,321. |
|
| 400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C. | |
| Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc. | |
| Application | In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts |
Specification
|
Outside Diameter NPS |
Outside Diameter (mm) | Nominal Wall Thickness (mm) | ||||||||
| ASME B36.19M | ASME B36.10M | |||||||||
| SCH 5S | SCH 10S | SCH 40S | SCH 80S | SCH 5 | SCH 10 | SCH 20 | STD | XS | ||
| 1/4 | 13.72 | — | 1.65 | 2.24 | 3.02 | 1.65 | — | 2.24 | 3.02 | |
| 3/8 | 17.15 | — | 1.65 | 2.31 | 3.2 | 1.65 | — | 2.31 | 3.2 | |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 | 3.73 | 1.65 | 2.11 | — | 2.77 | 3.73 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 | 3.91 | 1.65 | 2.11 | — | 2.87 | 3.91 |
| 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | 1.65 | 2.77 | — | 3.38 | 4.55 |
| 1 1/4 | 42.16 | 1.65 | 2.77 | 3.56 | 4.85 | 1.65 | 2.77 | — | 3.56 | 4.85 |
| 1 1/2 | 48.26 | 1.65 | 2.77 | 3.68 | 5.08 | 1.65 | 2.77 | — | 3.68 | 5.08 |
| 2 | 60.33 | 1.65 | 2.77 | 3.91 | 5.54 | 1.65 | 2.77 | — | 3.91 | 5.54 |
| 2 1/2 | 73.03 | 2.11 | 3.05 | 5.16 | 7.01 | 2.11 | 3.05 | — | 5.16 | 7.01 |
| 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | 2.11 | 3.05 | — | 5.49 | 7.62 |
| 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | 2.11 | 3.05 | — | 5.74 | 8.08 |
| 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | 2.11 | 3.05 | — | 6.02 | 8.56 |
| 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | 2.77 | 3.4 | — | 6.55 | 9.53 |
| 6 | 168.28 | 2.77 | 3.4 | 7.11 | 10.97 | 2.77 | 3.4 | — | 7.11 | 10.97 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 | 12.7 | 2.77 | 3.76 | 6.35 | 8.18 | 12.7 |
| 10 | 273.05 | 3.4 | 4.19 | 9.27 | 12.7 | 3.4 | 4.19 | 6.35 | 9.27 | 12.7 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 | 12.7 | 3.96 | 4.57 | 6.35 | 9.53 | 12.7 |
| 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.7 | 3.96 | 6.35 | 7.92 | 9.53 | 12.7 |
| 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 4.19 | 6.35 | 7.92 | 9.53 | 12.7 |
| 18 | 457.2 | 4.19 | 4.78 | 9.53 | 12.7 | 4.19 | 6.35 | 7.92 | 9.53 | 12.7 |
| 20 | 508 | 4.78 | 5.54 | 9.53 | 12.7 | 4.78 | 6.35 | 9.53 | 9.53 | 12.7 |
| 22 | 558.8 | 4.78 | 5.54 | 4.78 | 6.35 | 9.53 | 9.53 | 12.7 | ||
| 24 | 609.6 | 5.54 | 6.35 | 9.53 | 12.7 | 5.54 | 6.35 | 9.53 | 9.53 | 12.7 |
| 26 | 660.4 | — | — | — | — | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 28 | 711.2 | — | — | — | — | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 30 | 762 | 6.35 | 7.92 | — | 6.35 | — | 7.92 | 12.7 | 9.53 | 12.7 |
| 32 | 812.8 | Thinkness: 8.63-30mm | ||||||||
Welded Stainless Steel Pipe Tolerances
| Welded Stainless Steel Pipe Tolerances | ||
| NPS Designator | Permissible Variations in Outside Diameter | |
| Over In. | Under In. | |
| 1/8 to 1-1/2, inch | 1/64 (0.015) | 1/32 (0.031) |
| Over 1-1/2 to 4, inch | 1/32 (0.031) | 1/32 (0.031) |
| Over 4 to 8, inch | 1/16 (0.062) | 1/32 (0.031) |
| Over 8 to 18, inch | 3/23 (0.093) | 1/32 (0.031) |
