304 Stainless Steel Checkered Plate 3.0mm - 8.0mm Hot Rolled
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 304 |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Checkered Plate | Grade | 201 304 316L.etc |
|---|---|---|---|
| Thickness | 3.0- 8.0mm | Standard | ASTM EN GB |
| Width | 1000mm 1219mm 1500mm | Surface | 2B NO.1 |
| Brand | TISCO BAOSTEEL | MOQ | 1 Ton |
| Highlight | Checkered 304 Stainless Steel Plate 3.0mm,Checkered Stainless Steel Plate Hot Rolled,8.0mm Checkered Stainless Steel Plate |
||
Product Description

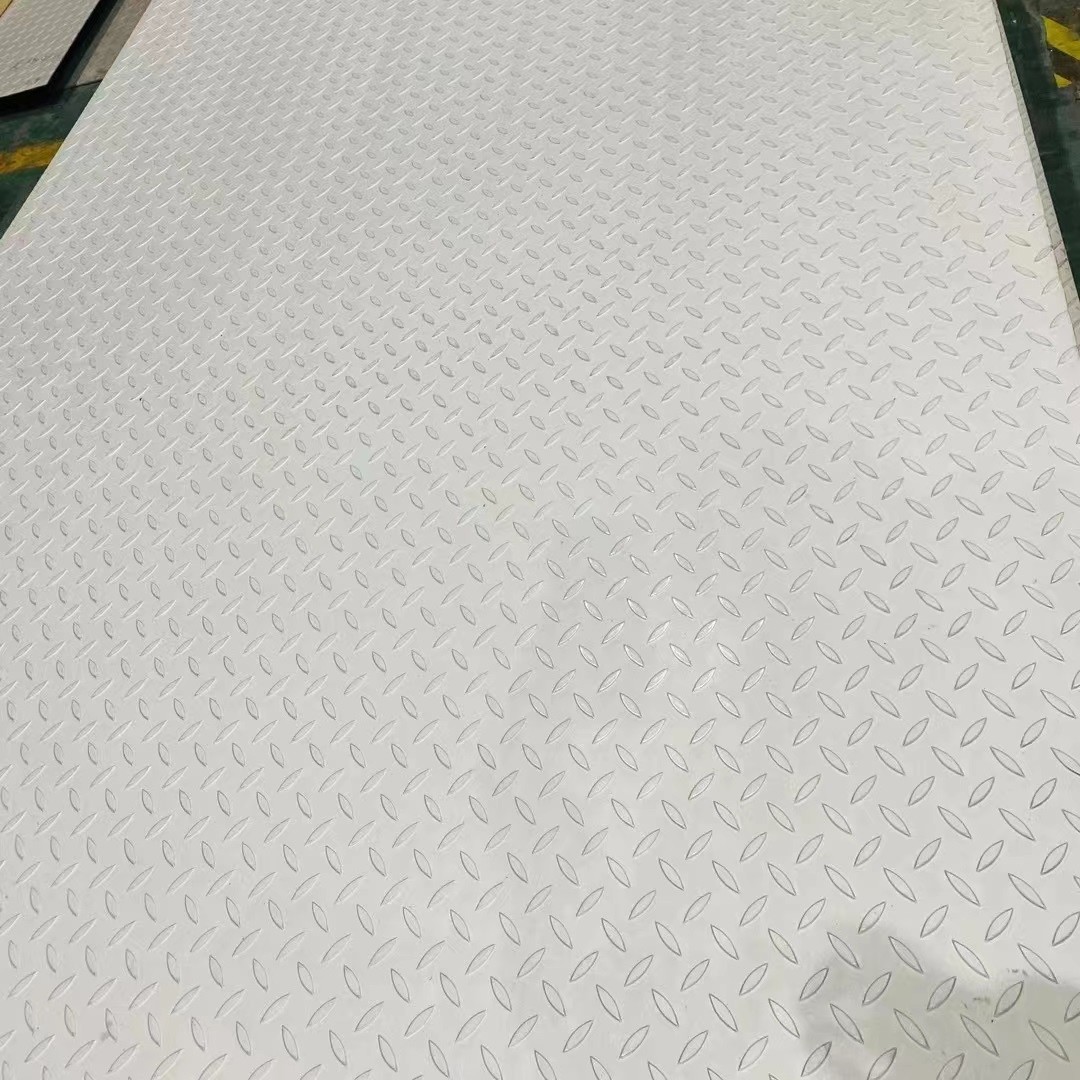

304 Stainless Steel Checkered Plate Thickness 3.0mm - 8.0mm Checkered Plate Hot Rolled
- 304 stainless steel chequered plate SUS304 checked plate
- Stainless steel Panels sizes
- Material : 201,304 ,430,316,410,etc
- Thickness:0.3-10MM
Standard Size:
- 1219×2438mm (4FT×8FT)
- 1219×3048mm (4FT×10FT)
- 1000×2000mm
- 1250x2500mm
- 1500x3000mm
Surface finish:hairline HL stainless steel,no.4 stainless steel,mirror stainless steel ,color stainless steel
Diamond plate stainless steel features:
- Resistant to extremely high temperature;
- Available in any corrosion resistance and alkaline resistance.
- Never rust even exposed to water.
- Skid resistance.
- Very rigid surface can stand heavy wear and tear.

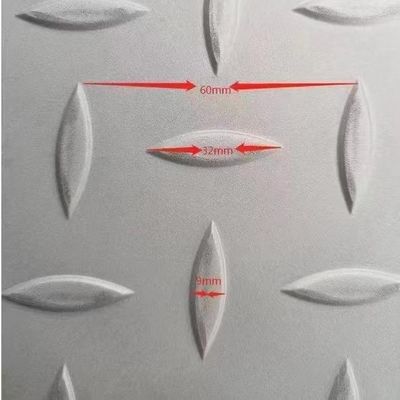

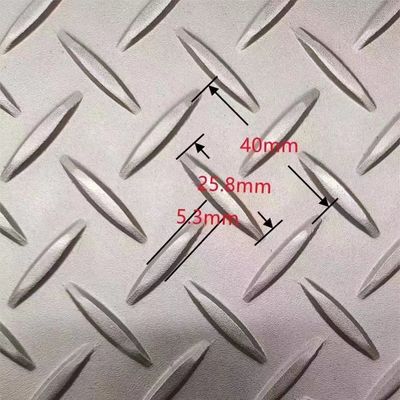

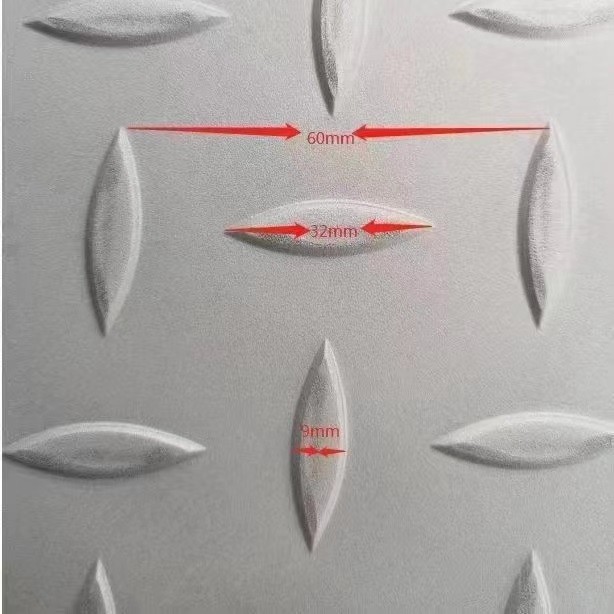

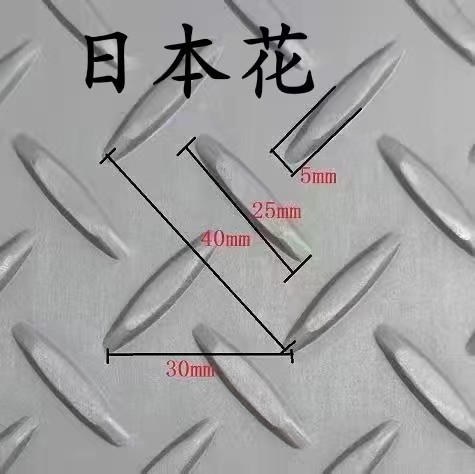

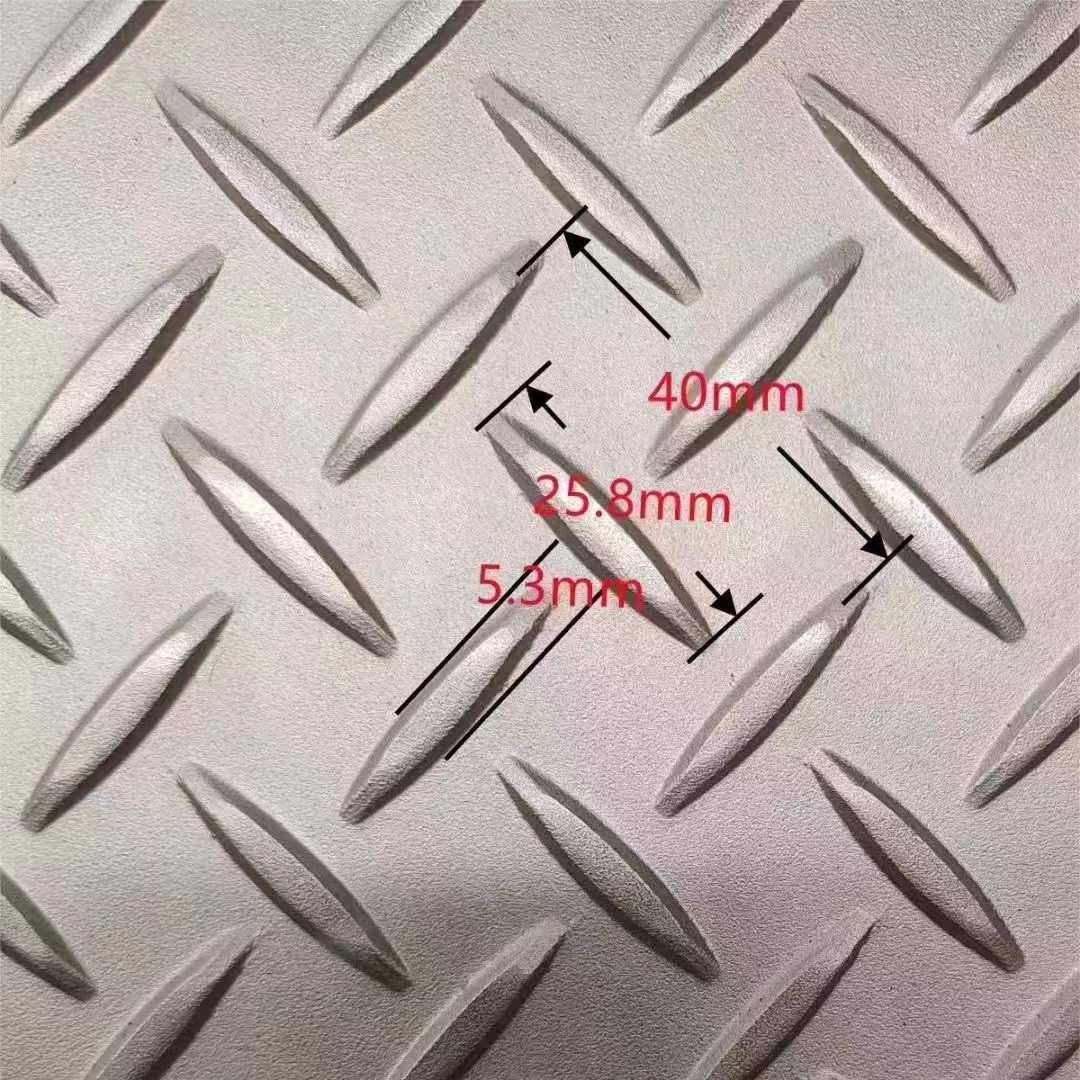

- Various patterns such as one bar, three bar, five bar.
The most popular products and specifications
- Diamond plate for bed rail cap to go around a 2013 toyota tocoma short bed single cab.
- One bar diamond plate steel size 12 inch × 48 inch.
- SUS 310S stainless steel checker plate 22mm to 25mm thickness, 1024mm × 3048mm sheets.
- SUS 253MA checker plate 8mm / 10mm / 15mm thickness, 1500mm × 4000mm plates.
- SS 304 chequer plate 3000mm × 1250mm × 4.5mm, 3000mm × 1250mm × 6mm, 3000mm × 1000mm × 6.0mm, 3000mm × 1000mm × 7.5mm.
- S.S 304 stainless steel diamond shaped chequered plates (non punched, original as european), 1500mm × 3000mm sheets, 40.mm, 5.0mm, 6.0mm thickness.
Stainless 304 Chequer Sheet Specification Chart
| Specifications | ASTM A240 / ASME SA240 |
| Item | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface | the surface and finish of ss Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hair line, sand blast, Brush, etching, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Manufacturer | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
| Thickness | 0.3~10.0mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Grade | ASTM /ASME SA 240 gr. Tp 304 , 304l, 304h, 309s, 309h, 310s, 310h, 316, 316l, 316h, 316, 317l ,321, 321h, 347, 347 h, 409, 410s, 420, 430, 904l chequered Plate |
SS 304 Chequered Plate Physical Composition
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| SS chequered 304/L/H Sheet | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| Stainless Steel Chequered 316/L/H Plates | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
ASME SA240 304 Chequer Plate Chemical Standard
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Chequered 304 Plates | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — | — |
| Stainless Steel Chequered 304L Sheets | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max | — |
| Stainless Steel Chequered 304H Coil | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max | — |
| Stainless Steel Chequered 316 Foil | Min | - | - | - | 0 | - | 16.0 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316L Plates | Min | - | - | - | - | - | 16.0 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316H Sheet | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | - |
Stainless Steel Chequer Plate Mechanical Strength
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
