High Hardness ASME Stainless Steel Plate Hot Rolled 420 440C 17 - 4PH 17 - 7PH
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 347 410 420 430 431.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100-5300 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | 201 304 316L 310S 321 2205 2507.etc |
|---|---|---|---|
| Thickness | 3.0-100.0mm | Width | 1500mm 1219mm 1000mm |
| Surface | NO.1 2B | Brand | TISCO |
| Standard | ASTM A240/240M | Loading Port | Shanghai Port |
| High Light | High Hardness ASME Stainless Steel Plate,440C Stainless Steel Plate,17-7PH Stainless Steel Plate |
||
Product Description
Hot Rolled High Hardness Stainless Steel Plate Grade 420 440C 17-4PH 17-7PH SS Plate
Our Stainless Steel Sheet Specification Chart
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |

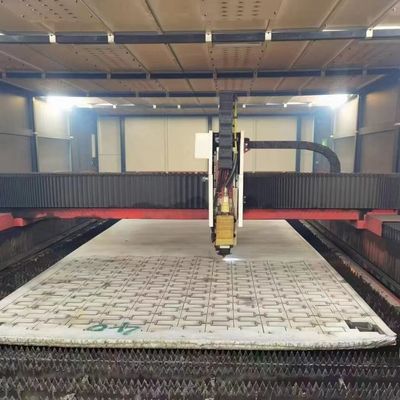

| Service | Laser Cutting, Water Cutting, Fire Cutting, Bending |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
Stainless steel coil plate – ASTM A240M
The most efficient route for a stainless steel production mill to produce plate (5mm and over) is in coil form. The coil is then further downstream processed by the mill or through a service centre with equipment to flatten (often called ‘levelling’) and cut to length.
The maximum plate width produced by mills from coil is 2000mm and the maximum thickness is 13mm for hot rolled and 8mm for cold rolled.
| Grade | Thickness (mm) | Coil width (mm) | Finish |
| 304/304L | 5.0 | 1500 | 2B |
| 316/316L | 6.0 | 2000 | No. 1 |
| 304/304L | 8.0 | 1500 | No. 1 |
| 316/316L | 10.0 | 2000 | |
| 12.0 | |||
| 3CR12 | 5.0 | 1250 | No. 1 |
Stainless steel quarto plate products – ASTM Aa240M
Another method of producing stainless steel plate within and beyond the thickness range of coil production is from a slab of steel that is rolled in the flat condition to a specified length, width and thickness. The product of this process is commonly referred to as quarto plate and is available from mills in thickness from 5mm and above and widths to 4000mm in some thicknesses.
The standard grades and thickness for quarto plate are as follows:
| Grades | 304/304L, 316/316L, 3CR12. |
| Thickness (mm) | 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 & 20.0. |
| Width (mm) | 1500 & 2000. |
| Length (mm) | 6000. |
| Finish | No. 1 (HRAP). |
Quarto plate is commonly stocked as a dual certified grade, i.e. 304/304L and 316/316L.
Stainless steel chequer (floor) plate
| Grades | 304. |
| Thickness (mm) | 3.18 & 4.76 . |
| Width (mm) | 1219 & 1250. |
| Length (mm) | 2438. |
