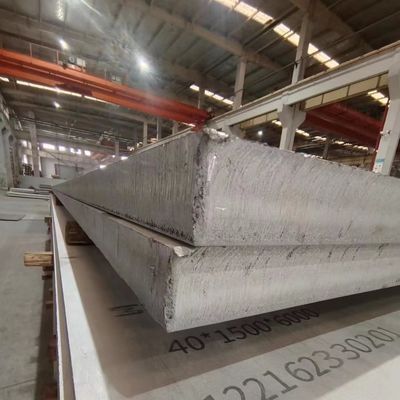

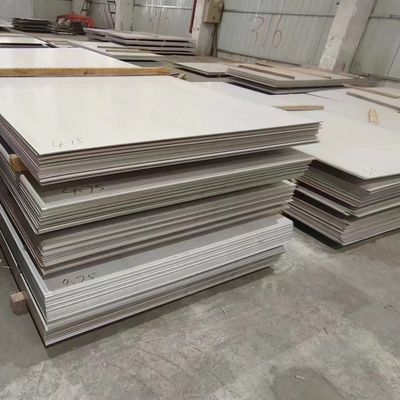

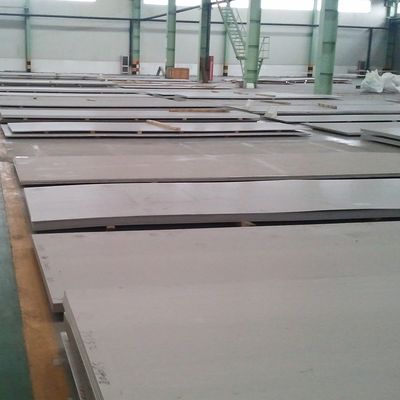

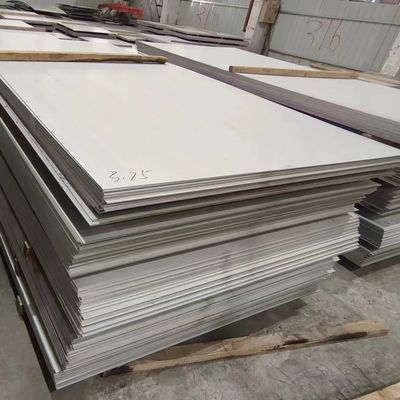

TISCO Hot Rolled 304H Stainless Steel Plate UNS S30409 4.0 - 40.0mm From TISCO
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | 304H |
| Minimum Order Quantity | 500 kgs |
| Price | 2100-5300 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | 304H |
|---|---|---|---|
| Thickness | 3.0-40.0mm | Width | 1500mm 1219mm 1000mm |
| Surface | NO.1 2B | Brand | TISCO |
| Standard | ASTM A240/240M | Loading Port | Shanghai Port |
| High Light | TISCO Hot Rolled Stainless Steel Plate,304H Stainless Steel Plate,UNS S30409 Stainless Steel Plate |
||
Product Description
Hot Rolled 304H Stainless Steel Plate / SS Plate UNS S30409 Thickness 4.0 - 40.0mm from TISCO
| Product Name | 304/304L/304H Stainless Steel Plate, 304/304L/304H Stainless Steel Sheet |
| Equivalent Grade | 304: AISI 304, UNS S30400, SAE 304, DIN 1.4301, SUS 304, X5CrNi18-10 |
| 304L: AISI 304L, UNS S30403, SAE 304L, DIN 1.4306, SUS 304L, X2CrNi19-11 | |
| 304H: AISI 304H, UNS S30409, SAE 304H, DIN 1.4948, SUS 304H, X6CrNi18-10 | |
| Standard | GB, AISI, ASTM, DIN, EN, JIS |
| Process | Hot Rolled, Cold Rolled, Forged |
| Sizes | Thickness: 0.3-200mm, Width: 10-4000mm |
| Surface Treatment | NO.1, 1D, 2D, 2B, NO.4, BA, HL, Mirror, Embossim, Sandblasted |
| Fabricating | Rolling, Bending, Slitting, Decoiling, Cutting, Drilling, Punching, Beveling, Welding etc. |
| Application | Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc. |
CHEMICAL PROPERTIES
| C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu | |
| 304 | 0.07 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-10.5 | / | 0.10 | / |
| 304L | 0.03 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-12.00 | / | 0.10 | / |
| 304H | 0.10 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-10.5 | / | 0.10 | / |
MECHANICAL PROPERTIES
| Tensile Strength (min) | Yield Strength (min) | Elongation | Hardness, max | ||||
| ksi | Mpa | ksi | Mpa | / | Brinell.HBW | Rockwell | |
| 304 | 75 | 515 | 30 | 205 | 40 | 201 | 92HRBW |
| 304L | 70 | 485 | 25 | 170 | 40 | 201 | 92HRBW |
| 304H | 75 | 515 | 30 | 205 | 40 | 201 | 92HRBW |
About Hot Rolled
Hot rolling is a metalworking process. Such as steel ingots or billets are difficult to deform and process at room temperature, they are generally heated to 1100 to 1250° for rolling, this rolling process is called hot rolling. Most steel materials are rolled by hot rolling, the steel delivered in the hot-rolled state has a certain degree of corrosion resistance due to the high temperature, so it can bestored in the open air. In addition, hot rolling is that it can destroy the casting structure of the ingot, refine the grain of the steel, eliminate structural defects, make the steel structure dense, and improve the hardness of the hot rolled steel.
About Cold Rolled
Cold rolling refers to a rolling process that uses the pressure of rolls to squeeze steel to change the shape of the steel at room temperature. The advantafe of cold rolling is fast forming speed, high output, the coating is not damaged, and it can be made into a variety of cross-sectional forms to meet the needs of the use conditions. In addition, cold rolling can cause large plastic deformation of the steel, thereby increasing the yield point of the steel. Which is Widely used in home appliances and other industries.
About Forged Plate
According to the forging temperature, forging can be classified into hot forging, cold forging and warm forging. Hot forging is the most widely used forging process. In hot forging process, the recrystallization accompanying the high temperatures and enhanced formability enables a precise adjustment of very fine-grained microstructure. Strength-durability combinations can be specified more so than in any other forming process. Which is predominantly used for aerospace industry.
What Is The Difference Between 304, 304L And 304H?
304 is considered the most versatile and widely used austenitic stainless steel, 304L is the ultra low carbon variant of 304 stainless, while 304H is the high carbon version of the 304 stainless. Carbon content is the only chemical difference between these three grades, leading 304L to perform better in corrosive environments and be easier to weld.
