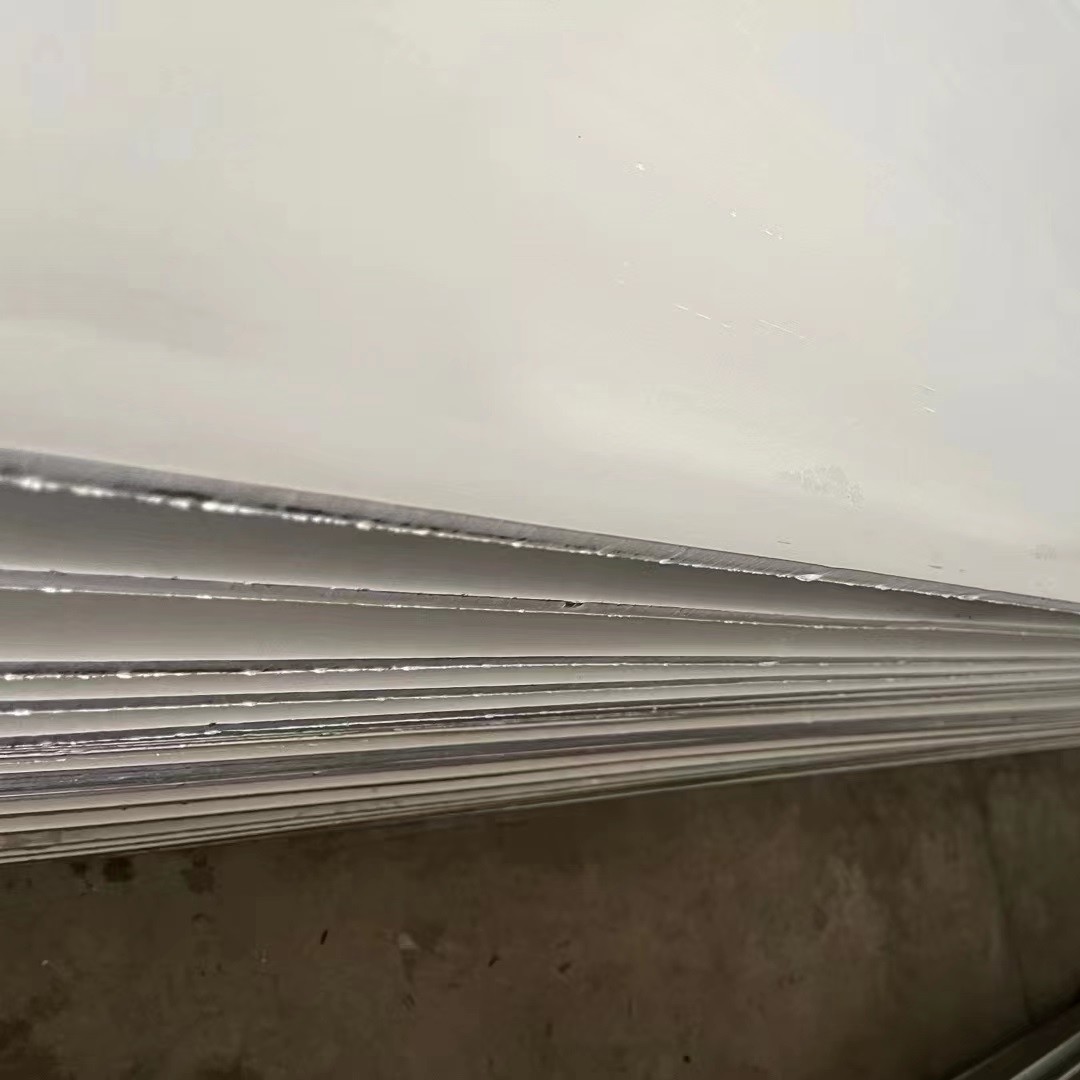

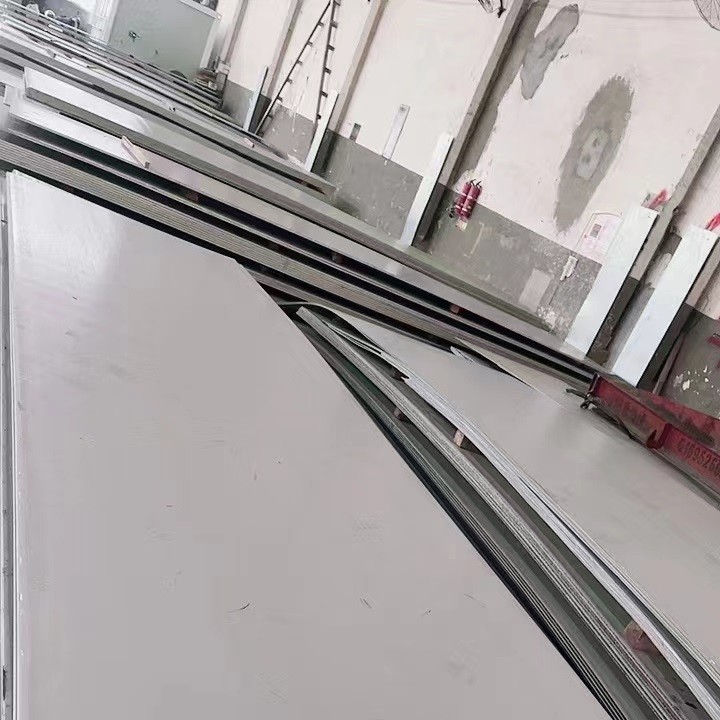

Hot Rolled 310s Stainless Steel Plate 0.5-16.0mm 1500mm 1219mm 1000mm
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | 310S / 1.4845 |
| Minimum Order Quantity | 500 kgs |
| Price | 2100-5300 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | 310S / 1.4845 |
|---|---|---|---|
| Thickness | 0.4 - 16.0mm | Width | 1500mm 1219mm 1000mm |
| Surface | NO.1 2B | Brand | TISCO |
| Standard | ASTM A240/240M | Loading Port | Shanghai Port |
| High Light | Hot Rolled 310s stainless steel plate,310s stainless steel plate 0.5mm,1000mm 310s stainless steel sheet |
||
Product Description
Hot Rolled 310S Stainless Steel Plate Cuntom Laser Cutting SS Plate 0.5 - 16.0mm in Coil
| Product name | Stainless Steel Sheet/Stainless Steel Plate |
| Material Type | magnetic,Austenitic stainless steel, Non magnetic |
| Grade | Mainly201,202,304,304L304H,316,316L,316T1,330,630,660,409L,416.410S,430,347H. |
| 200series 201,202. | |
| 300serles:301,304,304L309,310.310S,316.316L,316T,317L,321,347 | |
| 400series:409,409L,410 420,430. | |
| 600series:630,660 | |
| Others:904,904L,254sMo,2205,2507 | |
| Technology | Cold Rolled Hot Rolled |
| Length | 100-12000 mm |
| Width | 100-2000 mm |
| Thickness | Cold Rol:0.1-3 mm Hot Roll:3-100 mm |
| Surface | BA, 2B, 2D, 4K. 6K, 8K, NO.4. HL. SB, Embossed |
ASTM A240 TP 310S STAINLESS STEEL PLATES AND SHEETS
ASTM A240 TP310S STAINLESS STEEL PLATES | ASTM A240 TP 310S STAINLESS STEEL SHEET | ASTM A240 TP 310S STAINLESS STEEL COIL | SS 310S PLATE
310/310s Stainless Steel Plate, Sheets and Coils in Hot Rolled (HR) and Cold Rolled (CR) Conditions No.1 Finish, No.2 Finish, No.2B Finish, No. 8 Finish, BA Finish (Bright Annealed), Satin Finish, Hairline Finish.
Grade 310, combining excellent high temperature properties with good ductility and weldability, is designed for high temperature service. It resists oxidation in continuous service at temperatures up to 1150°C provided reducing sulphur gases are not present. It is also used for intermittent service at temperatures up to 1040°C.
Grade 310S (UNS S31008) is used when the application environment involves moist corrodents in a temperature range lower than that which is normally considered "high temperature" service. The lower carbon content of 310S does reduce its high temperature strength compared to 310.
Grade 310L (and proprietary versions of this grade), is a 0.03% maximum carbon version of 310, sometimes used for very specific corrosive environments, such as urea production.
Product Range
| Sr. No. | Size (in mm) | Thickness | Specification | Manufacturer |
| 1 | 1000 x 2000 1220 x 2440 (4' x 8') 1250 x 2500 1500 x 3000 To 6000 2000 x 4000 To 6000 |
0.3 mm To 120 mm |
A-240 | BAOSTEEL TISCO JISCO POSCO |
| Grade | 304, 304L, 304H, 316, 316L, 304N, 316Ti, 309, 310S, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc. | ||
| Sheet Finishing | 2B, 2D, HR, CR, BA (No. 8), Satin (Met with PVC Coated) | ||
| Sheet & Plate in Form of | Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) Etc. | ||
| Value Added Service | Cladding Heat Treatment Annealed |
Pickling, Polish Rolling Cutting |
Bending Forging Minor Fabrication Etc. |
| Test Certificate |
|
||
| Specialize | Shim Sheet, Perforated Sheet (Round, Square & Oblong Hole) & as per your Drawing | ||
Chemical Composition of ASTM A240 TP 310s Stainless Steel Plates and Sheets
Chemistries per ASTM A240 and ASME SA-240:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310 | min.max. | -0.25 | -2.00 | -1.50 | -0.045 | -0.030 | 24.026.0 | - | 19.022.0 | - |
| 310S | min.max. | -0.08 | -2.00 | -1.50 | -0.045 | -0.030 | 24.026.0 | - | 19.022.0 | |
Mechanical Properties of ASTM A240 TP 310s Stainless Steel Plates
Typical mechanical properties for grade 310 stainless steels are given.
Mechanical properties of 310 grade stainless steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max |
||||
| 310 | 515 | 205 | 40 | 95 | 217 |
| 310S | 515 | 205 | 40 | 95 | 217 |
Physical Properties of ASTM A240 TP 310s Stainless Steel Plates
Typical physical properties for annealed grade 310 stainless steels are given.
Physical properties of 310 grade stainless steel in the annealed condition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 310/S | 7750 | 200 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 720 |
Grade Specification Comparison of ASTM A240 TP 310s Stainless Steel Plates
Approximate grade comparisons for 310 stainless steels are given.
Grade specifications for 310 grade stainless steel
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310 | S31000 | 310S24 | - | 1.4840 | X15CrNi25-20 | - | SUH 310 |
| 310S | S31008 | 310S16 | - | 1.4845 | X8CrNi25-21 | 2361 | SUS 310S |
| These comparisons are approximate only. The list is intended as a comparison of functionally similar materialsnot as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted. | |||||||
Possible Alternative Grades of ASTM A240 TP 310s Stainless Steel Plates
Possible alternative grades to grade 310 stainless steels are given
Possible alternative grades to 310 grade stainless steel
| Grade | Why it might be chosen instead of 310 |
| 3CR12 | Heat resistance is needed, but only to about 600°C. |
| 304H | Heat resistance is needed, but only to about 800°C. |
| 321 | Heat resistance is needed, but only to about 900°C. Subsequent aqueous corrosion resistance also required. |
| 253MA (2111HTR) | A slightly higher temperature resistance is needed than can be provided by 310. Better resistance to reducing sulphide atmosphere needed. Higher immunity from sigma phase embrittlement is required. |
ASTM A240 aisi310s Stainless Steel Plates Packing
ASTM A240 TP 310s Stainless Steel Plates is sleeved into plastic bag individually, pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation. SS 310/310s Stainless Steel Plate packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
Delivery: Within 10-25 days or asap if we have enough stock
Types of Packaging:
- - Bundles (hexagonal)
- - Wooden Boxes
- - Crates (steel/wooden)
- - Special crates for U-Bend tubes with each radius separated
- - Packaging for SS 310/310s Stainless Steel Plate ASTM A240 as per customer's requirements
Special Features:
- - Each bundle covered with plastic for protection against extreme weather.
- - End of 310/310s Stainless Steel Plate protected by plastic Strip.
- - Bundles strapped with plastic strips.
- - Each radius of U-Bend tube separated by a separator.
- - Packaging list (laminated) placed with box/crate.
