Decorative 304 Stainless Steel Checker Plate 0.5-3mm
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 316L 2205 321.etc |
| Minimum Order Quantity | 1 Ton |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Checkered Plate | Grade | 201 304 316L.etc |
|---|---|---|---|
| Thickness | 1.0 - 8.0mm | Standard | ASTM EN GB |
| Width | 1000mm 1219mm 1500mm | Surface | 2B NO.1 |
| Brand | TISCO BAOSTEEL | MOQ | 1 Ton |
| Highlight | Decorative 304 stainless steel checker plate,304 stainless steel checker plate 0.5mm,3mm ss 304 sheet |
||
Product Description
Stainless Steel Checkered Plate 304 Decorative Stainless Steel Sheet 304 Checkered Plate 0.5-3mm
We are a leading manufacturer and supplier of Stainless Steel Diamond sheets/ Checker Sheets/ Embossed Sheets/Sheets/ Floor Sheets. We can provide different grades of stainless steel to meet various needs of all industrial purposes.

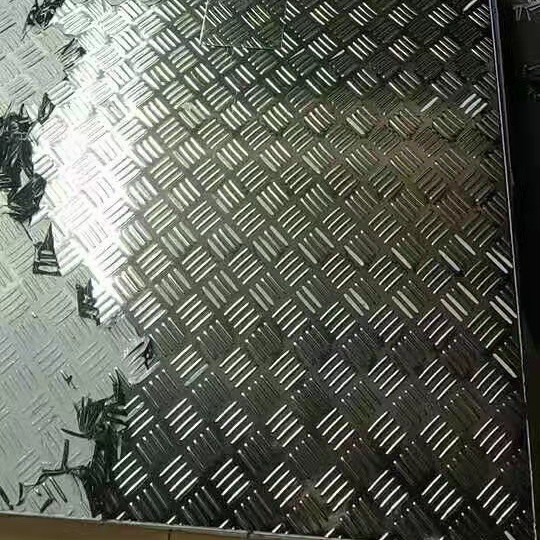

The stainless steel checker plate has a raised diamond lug pattern that provides excellent skid resistance for a wide range of applications. It has various styles with a strong three-dimensional effect. It has the excellent characteristics of anti-rust, no cracking, no scratching, no leakage, easy to clean. It’s an ideal choice for elevators and cabinet panels.
ASTM A240/JIS Standard 4304
3.1 MTC is available once order confirmed,all of our products are conformed with JIS G4304 and ASTM A240 standard.
ASTM A240
JIS 4304
ASTM A240 Chemical Standard
| Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Ti% Max. | Other |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| S30400 | 8.0~10.5 | 17.5~19.5 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | – | – | N: 0.1 Max. |
| S30403 | 8.0~12.0 | 17.5~19.5 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | – | – | N: 0.1 Max. |
| S31603 | 10.0~14.0 | 16.0~18.0 | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 2.0~3.0 | – | N: 0.1 Max. |
| S43000 | 0.75 | 16.0~18.0 | 0.12 | 1 | 1 | 0.04 | 0.03 | – | – | – |
| Steel Grade | N/mm 2 MIN. | N/mm 2 MIN. | % MIN. | HRB MAX. | HBW MAX. | Bendability: | Bendability: |
|---|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Tensile Stress | Proof Stress | Elongation | Hardness | Hardness | Bending Angle | Inside Radius | |
| S30400 | 515 | 205 | 40 | 92 | 201 | No Require | – |
| S30403 | 485 | 170 | 40 | 92 | 201 | No Require | – |
| S31603 | 485 | 170 | 40 | 95 | 217 | No Require | – |
| S43000 | 450 | 205 | 22A | 89 | 183 | 180° | – |
| Thickness | Width | Length | Surface Finish |
|---|
|
|
|
|
|
|---|---|---|---|
| 15~85 mm | 914, 1219, 1524 mm | 3048, 6069 mm Max.10M | Black |
| 3~8 mm | 20~2000 mm | 3048, 6069 mm Max.10M | No.1 |
| 8 up ~ 60 mm | 30~2000 mm | Max. 6096 mm | No.1 |
| 0.23-3.0mm | 30-1524-2000mm | Max. 10M | 2B/No.4/HL/8K |
Available Grade
| Great Britain BS970 |
U.S.A AISI/SAE |
Germany W-Nr Din |
Italy UNI |
Japan JIS |
France AFNOR |
Spain UNE |
|---|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 17/4PH | ASTM A564 Grade 630 |
50049 1.4542 |
– | – | Z7CNU 17-04 | – |
| 303S31 | 303 | 1.4305 X10CrNiS18-9 |
X10CrNiS1809 | SUS303 | Z8CNF 18-09 | F.5308 |
| 304S11 | 304L | 1.4307 1.4306 X10CrNiS18-9 |
X3CrNi1811 X2CrNi1811 |
SCS19 SUS304L |
Z1CN18-12 Z2CN18-10 |
F.3503 |
| 304S15 | 304 | 1.4301 X5CrNi1810 |
X5CrNi1810 | SUS304 | Z4CN19-10FF Z5CN17-08 |
F.3504 |
| 316S31 | 316 | X5CrNiMo17133 | X5CrNiMo1713 X8CrNiMo1713 |
SUS316 | Z6CND18-12-03 | – |
| 316S11 | 316L | 1.4404 X2CrNiMo17132 |
X2CrNiMo1713 X8CrNiMo1713 |
SUS316L | Z2CND17-12 Z2CND18-13 |
F.3533 F.3537 |
| 321S31 | 321 | 1.4541 X6CrNiTi18-10 |
X6CrNiTi1811 | SUS321 | Z6CNT18-10 | F.3523 |
| 310 | 310 310S |
1.4845 X12CrNi25-21 |
X6CrNi2521 | SUH310 SUS310S |
Z8CN25-20 Z12CN25-20 |
– |
| 416S21 | 416 | 1.4005 X12CrS13 |
X12CrS13 | SUS416 | Z11CF13 | F.3411 |
| 420S29 | – | 1.4024 X15Cr13 |
– | SUS410J1 | Z13C13 | F.3415 |
