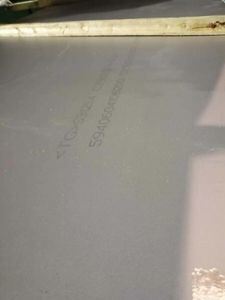

Super Austenitic Steel 254 SMO Hot Rolled Corrosion Resistant Stainless Steel Plate UNS S31254

인증	ISO, AISI, ASTM
최소 주문 수량	50kg
가격	US $2.18-7.85 / kg

제품 상세 정보

모델 번호	S31254 254SMo	모양	평평한
기술	열간압연	표면 처리	밝은
사양	12202440, 15003000, 15006000, 20006000mm	두께	4mm-100mm
너비	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm	길이	2000mm, 2440mm, 3000mm, 5800mm, 6000mm
표면 마감	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, 거울, 체크, 엠보싱, 헤어라인, 샌드블래스트, 브러쉬, 에칭	밀도	8.0 g/cm3
녹는점	1320-1390 °C	항복 강도	300
인장강도	650	연장	35 %
생산능력	50000KGS
강조하다	Super Austenitic Steel Stainless Steel Plate , Hot Rolled Alloy 254 SMO Plate , Corrosion Resistant UNS S31254 Plate

메시지를 남겨주세요

제품 설명

Super Austenitic Steel 254 SMO Plate Material S31254 Rolled Alloy Plate

Alloy 254 UNS S31254 PLATE 254 SMO Plate, SA 240 UNS S31254 Plate SS 254 SMO F44 Plates

SMO 254 / UNS S31254 Sheets & Plates Specifications

If any specification is not mentioned here, please contact us for a quick quote.

Specifications	ASTM A240 / ASME SA240
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SMO 254 / UNS S31254 Sheets & Plates Chemical Composition

Grade	SMO 254
Ni	17.5 - 18.5
Cr	19.5 - 20.5
Mo	6 - 6.5
Cu	0.5 - 1.0
N	0.18 - 0.22
C	0.02
Mn	1.0
Si	0.08
P	0.03
S	0.01

SMO 254 / UNS S31254 Sheets & Plates Mechanical Properties

Grade	SMO 254
Density	8.0 g/cm3
Melting Point	1320-1390 °C
Yield Strength (0.2%Offset)	300
Tensile Strength	650
Elongation	35 %

SMO 254 / UNS S31254 Sheets & Plates Equivalent Grades

STANDARD	SMO 254
UNS	S31254
WERKSTOFF NR.	1.4547
AFNOR	Z1 CNDU 20.18.06Az
EN	X1CrNiMoCuN20-18-7
SIS	2378

Applications of S31254 Stainless Steels

Elevated oil distillation columns
Exhaust gas desulfurization scrubbers
Pumps and valves
Industrial components for oil and gas
Industrial components for food processing equipment
Pipework and manifolds
Saltwater handling systems
Flanges and manifolds
Industrial components for chemical industry
Bleaching equipment in the pulp & paper industry
Desalination equipment
Heat exchangers

Alloy 254 SMO is a very high-end, molybdenum and nitrogen alloyed super austenitic stainless steel with low carbon content. It demonstrates outstanding resistance to pitting, crevice corrosion stress cracking, and corrosion fatigue uniform corrosion. Alloy 254 SMO is substantially stronger than common austenitic grades, with strength nearly twice that of 300 series stainless steel. It is also characterized by high ductility and impact strength.

With high levels of chromium, molybdenum, and nitrogen, Alloy 254 SMO is frequently used in high chloride environments, such as brackish water, seawater, pulp mill bleach plants, and other chloride process streams. In some applications it has even been found to be a more cost-effective substitute for high nickel and titanium alloys.

Additional Applications

Petroleum production
Saltwater handling
Food and chemical processing equipment
Pulp mill bleach systems
Flue gas desulphurization scrubbers
Tall oil distillation columns
Offshore oil & gas production equipment
Desalination equipment

Standards

ASTM/ASME: UNS S31254
EURONORM: FeMi35Cr20Cu4Mo2
DIN: 2.4660

Corrosion Resistance

Excellent resistance to pitting and crevice corrosion due to its high chromium, molybdenum, and nitrogen content
Very low carbon content minimizes risk of carbide precipitation during heating
Excellent resistance in water containing chlorides, suitable for prolonged seawater exposure without crevice corrosion
