1.0mm - 2.0mm Thickness Corrosion Resistant Stainless Steel Tortoise Shell Net with Twill Weave Technique

最小注文数量	10平方メートル
価格	US $27.5 / Square M

商品の詳細

厚さ	10.0mm, 1.2mm, 1.5mm,2.0mm	材質の種類	ステンレス鋼板
織り技術	ツイル織り	金網の幅	1m
技術	パンチング	ニッケル含有量	8%
穴のサイズ	40×40mm、50×50mm	全サイズ	8-1.2-4040、10-1.2-4040、15-1.5-50*50など
1個あたりの面積	0.6㎡、1㎡、1.9㎡、2㎡	Length*width	1070562mm、1550650mm、1550*1230mmなど
身長	8mm、10mm、15mm、20mm、25mm、40mm	学年	炭素鋼、0Cr13、304、S32205、0Cr25Ni20など
カスタマイズ可能なサイズ	はい	六角形	はい
ライニング材の固定	強化された
ハイライト	1.0mm - 2.0mm Thickness Hexagonal Wire Mesh , Corrosion Resistant Punching Hole Wire Mesh , Twill Weave Technique Stainless Steel Tortoise Shell Net

メッセージ

製品の説明

Stainless Steel Tortoise Shell Hexagonal Net

Available in thicknesses: 1.0mm, 1.2mm, 1.5mm, and 2.0mm

Product Specifications

Grade	Height (mm)	Thickness (mm)	Hole Size (mm)	Whole Size	Area (m²/PCS)	Length × Width (mm)
Carbon Steel	8	1.2	40×40	8-1.2-40×40	0.6	1070×562
Carbon Steel	10	1.2	40×40	10-1.2-40×40	0.6	1070×562
Carbon Steel	15	1.5	50×50	15-1.5-50×50	1	1550×650
Carbon Steel	15	1.75	50×50	15-1.75-50×50	1	1550×650
Carbon Steel	20	1.75	50×50	20-1.75-50×50	2	1550×1300
0Cr13	10	1.2	40×40	10-1.2-40×40	0.6	1070×562
0Cr13	20	1.75	50×50	20-1.75-50×50	1.9	1550×1230
0Cr13	25	1.75	50×50	25-1.75-50×50	1.9	1550×1230
0Cr13	40	1.75	50×50	40-1.75-50×50	1.9	1550×1230
304	8	1.2	40×40	8-1.2-40×40	0.6	1070×562
304	10	1.2	50×50	10-1.2-50×50	1	1550×650
304	20	1.75	50×50	20-1.75-50×50	1.88	1540×1225
304	25	1.75	50×50	25-1.75-50×50	1.9	1550×1230
304	40	1.75	50×50	40-1.75-50×50	1.9	1550×1230
S32205	10	1.2	40×40	10-1.2-40×40	0.73	1340×590
0Cr25Ni20	10	1.2	40×40	10-1.2-40×40	0.6	1070×562
0Cr25Ni20	20	2.0	50×50	20-2.0-50×50	Custom as requested: length 1550 × width

Other Available Grades: 304L, 321, 309S, 316L, 420, 430, etc.

Product Advantages

Enhanced fixing power with lining material for superior connection strength
Effectively strengthens self-connecting properties of lining materials
Prevents heat insulation layer from peeling off
Increases fastness and durability of lining materials

Applications

Specifically designed for pouring shapeless lining material and lining material fixing applications. Our hexagonal steel nets serve as essential metal components for mainframe factories and various lining applications in petrochemical manufacturing. These products are widely utilized in petrochemical large-scale devices, particularly as key lining parts that support catalyst systems.

Product Images

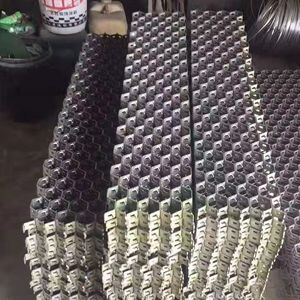

1.0mm - 2.0mm Thickness Corrosion Resistant Stainless Steel Tortoise Shell Net with Twill Weave Technique

1.0mm - 2.0mm Thickness Hexagonal Wire Mesh

Corrosion Resistant Punching Hole Wire Mesh

Twill Weave Technique Stainless Steel Tortoise Shell Net
