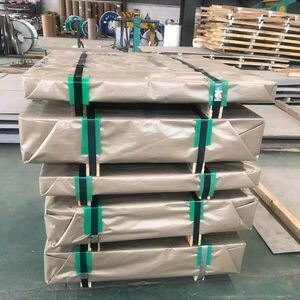

Cold Rolled 430 Stainless Steel Sheet with 0.3 - 3.0mm Thickness and Corrosion Resistance

Certificazione	AISI, ASTM
Quantità di ordine minimo	150 chilogrammi
Prezzo	US $1.59-2.76 / kg

Dettagli

Modello n.	430	Forma	Piatto
Tecnica	laminato a freddo	Trattamento superficiale	Luminoso
Specifica	12202440, 15003000, 15006000, 20006000 mm	Spessore	0,3 - 3,0 mm
Misura standard	10002000 mm, 12192438 mm, 1500*6000 mm	Superficie	2B BA NO.4 Specchio per linea di grandine 8K
Resistenza alla trazione	483MPa	Forza di snervamento	310MPa
Allungamento	22%	Durezza	85 HRB, 183 HB
Densità	7750kg/m3	Modulo elastico	200 GPa
Conduttività termica	26,1 W/mK a 100°C
Evidenziare	Cold Rolled Stainless Steel Sheet , 0.3 - 3.0mm Thickness 430 Stainless Steel Sheet , Corrosion Resistant Ferritic Stainless Steel Sheet

Lasciate un messaggio

Descrizione di prodotto

Cold Rolled Stainless Steel Sheet Grade 430

Premium cold rolled stainless steel sheets from TISCO and JISCO manufacturers, available in thickness range of 0.3-3.0mm with standard 4ft×8ft dimensions.

Product Specifications

Product Type

430 Stainless Steel Sheet

Thickness Range

Cold Rolled: 0.3-3.0mm
Hot Rolled: 4.0-10.0mm

Standard Sizes

Cold Rolled: 1000×2000mm, 1219×2438mm
Hot Rolled: 1500×6000mm

Available Surfaces

2B, BA, NO.4, Hairline, Mirror 8K

Manufacturers

TISCO, JISCO, POSCO, BAOSTEEL

Standards

ASTM A240 / JIS G4305 / EN 10088-2

Additional Steel Grades Available

201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 430, 440, 441, 443, 444, 2205, 2507

Value-Added Services

Slit cutting and surface processing services available to meet specific application requirements.

Grade 430 Stainless Steel Overview

Stainless steel grade 430 is a non-hardenable ferritic steel containing straight chromium, known for excellent corrosion resistance, formability, and practical mechanical properties. Suitable for various chemical applications and available in bar form as grade 430F for automatic screw machines.

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
430	- 0.12	- 1	- 1	- 0.04	- 0.030	16-18	-	- 0.50	-
430F	- 0.12	- 1.25	- 1	- 0.06	0.15 -	16-18	-	-	-

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
430	483	310	22	85	183
430F	552 typical	379 typical	25 typical	-	262

Physical Properties

Grade	Density (kg/m³)	Elastic Modulus (GPa)	Thermal Expansion (μm/m/°C)	Thermal Conductivity (W/m.K)	Specific Heat (J/kg.K)	Electrical Resistivity (nΩ.m)
430	7750	200	10.4	26.1	460	600
430F	7750	200	10.4	26.1	460	600

Performance Characteristics

Corrosion Resistance

Grade 430 offers excellent stress corrosion cracking resistance and good corrosion resistance to numerous substances. Maximum corrosion resistance is achieved in well-polished or buffed conditions, with pitting and crevice corrosion resistance comparable to grade 304.

Heat Resistance

Capable of resisting oxidation up to 870°C (1598°F) in intermittent usage and 815°C (1499°F) in continuous usage. May become brittle when heated for extended periods in the 400-600°C range, remedied through annealing.

Heat Treatment

Solution annealing at 815-845°C (1499-1553°F) with slow furnace cooling to 600°C (1112°F) followed by rapid air cooling. Sub-critical annealing at 760-815°C (1400-1499°F) with air or water quenching. Not hardenable by thermal treatment.

Welding

Pre-heating required at 150-200°C (302-392°F). Post-weld annealing at 790-815°C (1454-1499°F) recommended if embrittlement occurs. Recommended filler rods: 430, 308L, 309, or 310 based on application requirements.

Machining & Fabrication

Easier machining than standard austenitic steels like grade 304, with potential for galling. Grade 430F offers superior machinability. Excellent bending and forming capabilities with low work hardening rate, though low ductility limits rigorous operations.

Industrial Applications
