Hot Rolled Bright Surface Stainless Steel Channel Bar U Channel Bar 30*30-100*100mm
Produktdetails
| Form | U-Kanal | Technik | Warmgewalzt |
|---|---|---|---|
| Oberflächenbehandlung | Hell | Spezifikation | 30*30-100*100 |
| Grad | 201 304 310S 316L 321 2205 | Winkelstangengröße | 30*30*3 - 200*200*10mm * 6m Länge |
| Kanalleistengröße | 50*30*3 - 200*100*10mm * 6m Länge | Dicke der Winkelstange | 3-10 mm |
| Kanalstabdicke | 3-12 mm | Gewicht der Winkelstange | 0,894-15,0 kg/m |
| Gewicht der Kanalstange | 1,79–35,8 kg/m | Standard | ASTM GB DIN |
| Länge | 6m | Material | Edelstahl |
| Bearbeitungsservice | Schneiden | ||
| Hervorheben | Hot Rolled Stainless Steel Channel Bar,Bright Surface U Channel Bar,30*30-100*100mm SS Channel Bar |
||
Produkt-Beschreibung
Stainless Steel Channel Bar Specifications
High-quality ASTM A276 compliant stainless steel channel bars available in multiple grades including 201, 304, 316L, 310S, and 2205 duplex stainless steel.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Available Grades | 201, 304, 310S, 316L, 321, 2205 |
| Standards | ASTM, GB, DIN |
| Angle Bar Size Range | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size Range | 50×30×3 - 200×100×10mm × 6m length |
| Services | Custom Cutting |
| Packaging | Waterproof paper wrapping or wooden pallets |
| Brand | TSINGSHAN |
Standard Sizes and Weights
Stainless Steel Angle Bar Dimensions
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Dimensions
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
Our company specializes in stainless steel material wholesale, processing, storage, and distribution as one of the leading stainless steel industry and trade enterprises. Located in the stainless steel trading center of Wuxi, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan, we maintain long-term cooperative relationships with major steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others.
We distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Available Materials
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High-temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series and other specialty materials
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror finishing
- Grinding and wire drawing
- Film and titanium plating equipment
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped components
Our materials are widely used in machinery, chemical processing, petroleum, boiler manufacturing, heat exchangers, food machinery, beverage machinery, medical equipment, and various other industries.

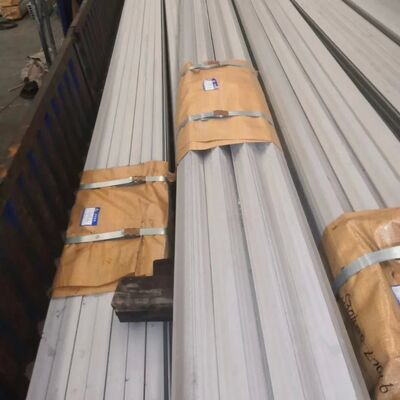

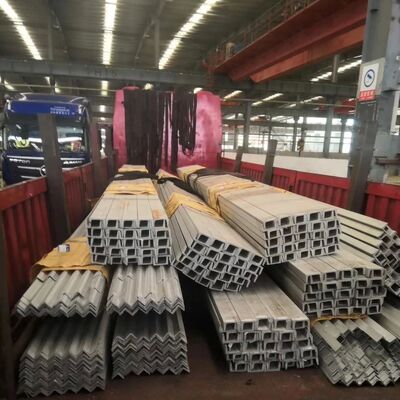

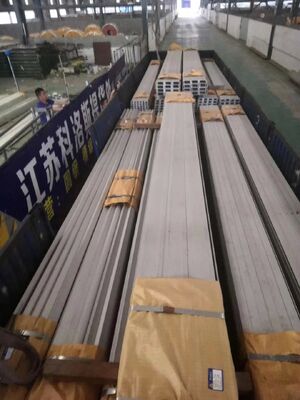

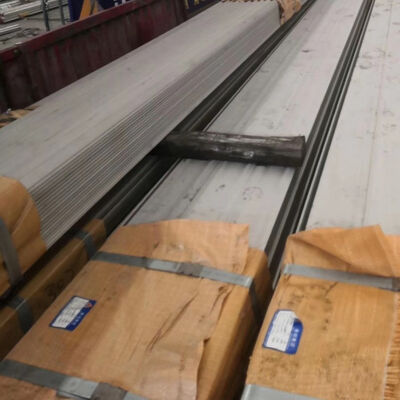

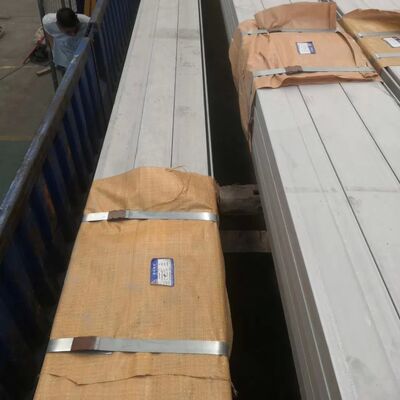

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for constructing frame structures, including:
- High-voltage power transmission towers
- Steel structure bridge main beam frames
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air conditioning and solar power mounting brackets
- Building structures and engineering construction
- Ship beams and industrial furnaces
Our stainless steel angle bars and channel bars are applied across various industries including construction, marine, industrial manufacturing, and renewable energy sectors.
Contact Information
Contact us for pricing, technical specifications, and custom orders of our high-quality stainless steel channel bars and angle bars.
