300 Series Stainless Steel U Channel Bar Hot Rolled with Bright Surface for Industrial Applications
Produktdetails
| Form | U-Kanal | Technik | Warmgewalzt |
|---|---|---|---|
| Oberflächenbehandlung | Hell | Spezifikation | 30*30-100*100 |
| Grad | 201 304 310S 316L 321 2205 | Winkelstangengröße | 30*30*3 - 200*200*10mm * 6m Länge |
| Kanalleistengröße | 50*30*3 - 200*100*10mm * 6m Länge | Dicke der Winkelstange | 3-10 mm |
| Kanalstabdicke | 3-12 mm | Gewicht der Winkelstange | 0,894-15,0 kg/m |
| Gewicht der Kanalstange | 1,79–35,8 kg/m | Länge | 6m |
| Material | Edelstahl | Standard | ASTM GB DIN |
| Service | Schneiden | ||
| Hervorheben | 300 Series Stainless Steel U Channel Bar,Hot Rolled Stainless Steel Channel Bar,Bright Surface U Channel |
||
Produkt-Beschreibung
300 Series Stainless Steel U Channel Bar
High-quality 304, 304L, 316L, 310S, and 321 stainless steel U channel bars for industrial applications.
Product Specifications
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |

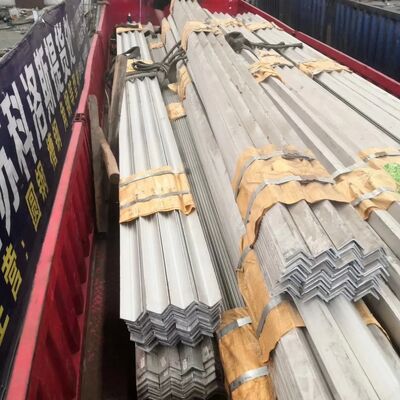

| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |

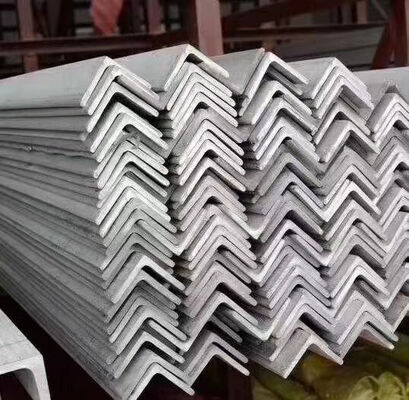

Standard Size and Weight - Stainless Steel Angle Bar
| Size (A×B mm) | Thickness (mm) / Weight per meter (kg) | |||||||
|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 | |||
Standard Size and Weight - Stainless Steel Channel Bar
| Size (H×B mm) | Thickness (mm) / Weight per meter (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 | |||
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
Material Range & Processing Capabilities
- Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- Specialized series: High-temperature resistant, duplex stainless steel, super stainless steel
- Processing equipment: Plasma cutting, coil material opening, laser cutting, 8K mirror, grinding wire drawing, film and titanium plating
- Services: Material opening, strip cutting, plate cutting, oil mill wire drawing, 8K mirror, titanium processing
- Special features: Thick plate cutting up to 150MM, custom specifications available
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

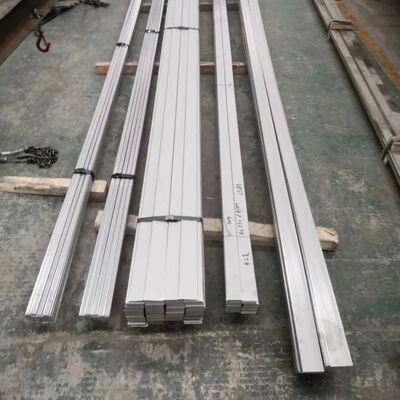

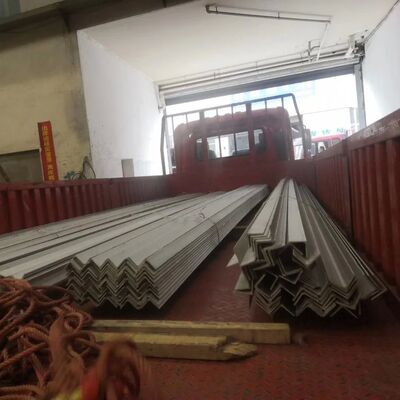

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Steel structure bridge main beam frames
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- Ship beams and industrial furnaces
Contact Us
For inquiries about our stainless steel angle bars and channel bars, please contact our sales team for pricing and availability.
