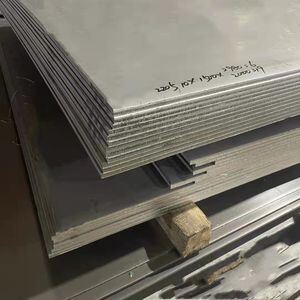

Tisco 304 Grade Stainless Steel Plate with 2B Surface 1219*2438mm SS Plate

Zertifizierung	AISI
Min Bestellmenge	85 kg
Preis	US $2.47-2.68 / kg

Produktdetails

Modell Nr.	304	Form	Wohnung
Technik	Warmgewalzt	Oberflächenbehandlung	Poliert
Spezifikation	12202440, 15003000, 15006000, 20006000 mm	Dicke	Kaltgewalzt: 0,4 mm bis 3 mm. Warmgewalzt: 3,0 mm bis 100 mm
Breite	1000 1219 mm 1250 mm 1500 mm 1800 mm 2000 mm oder nach Kundenwunsch	Länge	1000mm-6000mm oder als Anfrage
Beenden	2B, BA, HL, Spiegel, NO1, NO 4, 8K	Material	Edelstahl
Kohlenstoffgehalt	0,08 max (304), 0,03 max (304L), 0,04-0,10 (304H)	Nickelinhalt	8,00–10,50 (304), 8,00–12,00 (304L), 8,00–10,50 (304H)
Chrominhalt	18.00–20.00 Uhr (304, 304L, 304H)	Zugfestigkeit	520 MPa min (304, 304H), 485 MPa min (304L)
Verlängerung	40 % min. (304, 304L, 304H)
Hervorheben	304 Grade Stainless Steel Plate , 2B Surface SS Plate , 1219*2438mm Stainless Flat Plate

Hinterlass eine Nachricht

Produkt-Beschreibung

TISCO 304 Cold Roll Stainless Steel Flat Plate

2B Surface Finish • 1219×2438mm • SS 304 Grade

Product Specifications

Product Name	Stainless Steel Plate
Thickness	Cold rolled: 0.4mm-3mm • Hot rolled: 3.0mm-100mm
Width	1000mm, 1219mm, 1250mm, 1500mm, 1800mm, 2000mm or customized
Length	1000mm-6000mm or as requested
Material	Stainless Steel
Finish	2B, BA, HL, Mirror, NO1, NO4, 8K
Standard	ASTM, AISI, DIN, EN, GB, JIS
Material Grades	200 series: 201, 202, 202cu, 204 300 series: 301, 302, 303, 304, 304L, 310, 310S, 316, 316L 400 series: 409, 409L, 410, 420, 430, 431, 439 Others: 2205, 2507, 904L, 317L, 254SMO, 253MA, 630, etc.
Brand	TISCO, BAOSTEEL, ZPSS, LISCO, JISCO
Application Range	Decoration Industry, Kitchenware, Building, Elevator

304 Stainless Steel Overview

Grade 304 is the most commonly used stainless steel. It is an austenitic, corrosion-resistant steel with excellent strength, toughness, fabrication characteristics and weldability. The low carbon version, 304L, may be required for full corrosion resistance when thicker sections are welded. The 304H version has a guaranteed minimum carbon content, which ensures good strength at high temperatures.

Typical Applications

Brewing and dairy equipment
Evaporators, drums, barrels, heat exchangers
Hospital equipment, refrigeration parts
Chemical and food processing equipment
Shop fittings, bench tops, kitchens
Kitchen utensils, sinks, wash troughs, urinals
Hand rails, dishwashers, clothes dryers, ovens
Heating trays, air conditioning equipment
Guttering and rain water goods
Counters and display cabinets
Hot and cold food bars
Commercial oven hoods, beer barrels

Chemical Composition

(AS1449 / ASTM A240 - Flat Products)

Grade	Carbon	Silicon	Manganese	Phosphorus	Sulphur	Nickel	Chromium	Nitrogen
304 Specification (max)	0.08	0.75	2.00	0.045	0.030	8.00-10.50	18.00-20.00	0.10
304 Typical	0.045	0.49	1.22	0.028	0.005	8.3	18.2	0.045
304L Specification (max)	0.03	0.75	2.00	0.045	0.030	8.00-12.00	18.00-20.00	0.10
304L Typical	0.020	0.42	1.46	0.028	0.005	9.1	18.3	0.048
304H Specification (max)	0.04-0.10	0.75	2.00	0.045	0.030	8.00-10.50	18.00-20.00	-
304H Typical	0.049	0.49	1.25	0.028	0.005	8.3	18.3	0.043

Mechanical Properties

(AS1449 / ASTM A240 - Flat Products)

Grade/Thickness	0.2% Proof Stress	Tensile Strength (MPa)	Elongation (%)	Hardness HB (max)
304 Specification (min)		205	520	40	202
304 Typical (0.3-3.5mm)	260	660	55	160
304 Typical (3.6-6mm)	250	600	55	160
304 Typical (>6mm)	240	580	55	155
304L Specification (min)		170	485	40	183
304H Specification (min)		205	520	40	202

Available Products

We can supply 304 stainless steel as plate, coil, sheet, strip, round, hexagon, flat bar, angles, tube, pipe and welding consumables.

Finishing Options

No1 (hot rolled, annealed and pickled), 2D (cold rolled), 2B (cold rolled, skin passed), N4 (polished), BA (bright annealed).

Flat products are available surface protected with white polyethylene (PE) film. Protection with blue poly vinyl chloride (PVC) for deep drawing or black PVC (for heavy forming) is also available.

Corrosion Resistance

Grade 304 stainless steel has excellent corrosion resistance in many environments. It gives good service in atmospheric conditions, resisting most environments except for marine conditions, or where industrial pollution is heavy.

Best appearance is maintained where the design allows even rain washing of the surface, or where dirt deposits are occasionally washed off the steel.

It has given excellent service in some situations in potable water. Pitting and crevice corrosion may occur at higher chloride content, and 200 ppm is accepted as the upper limit.

Grade 304 stainless steel is not generally used in seawater, due to the probability of crevice corrosion developing under sediments, precipitation and biofouling.

Specific Applications

Architecture & Building: Surface, Pillar, Window frame, Stair hand-rail
Kitchen Utensils: Washing machine drum, Gas range stove, Plate, Housewares, Hollowware
Others: Computer components, Automotive trim

Packing & Delivery

Stainless steel coil be packed with kraft paper, plastic plate and wooden pallet. To be packed strongly avoid damage during transportation, and can be also according to the regulations and customer's requests. Furthermore, products packages also are tagged clear on the outside for easy identification of the product and quality information.

Shipping Information

MOQ	1 Ton
Price Term	FOB
Payment	L/C at sight or 30% TT as deposit
Delivery Time	20-30 days after receiving deposit by T/T or L/C
Sample	Samples free and express charges bear by you
Packaging	Standard export package with water proof paper, metal pallet, angle bar protection, and steel strip or as required

Product Images

About Our Company

Our company is a professional stainless steel trading company integrating sales, processing, distribution and storage. We always carry out the "high efficiency, mutual benefit, service first" business philosophy and service purpose, adhere to reasonable and preferential prices, beyond customer expectations of service, to provide the society with a variety of inexpensive quality stainless steel products.

The company specializes in the distribution of domestic and imported cold and hot rolled stainless steel coils and plates, operating steel types: 201, 202, 304, 321, 316L, 444, 409, 430, 309S, 310S and so on. The products come from Shanxi TISCO, Guangzhou Lianzhong, Zhangjiagang Pohang, Ningbo Baoxin, AvestaPolarit, Outokumpu, POSCO, etc.

We provide additional services including opening, grinding, slitting, shearing and other processing. The company's products are widely used in: chemical machinery, pharmaceutical machinery, food machinery, drying equipment, environmental protection equipment, metallurgical machinery, pressure vessels, kitchen equipment, etc.
