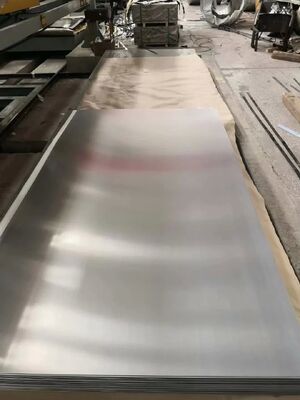

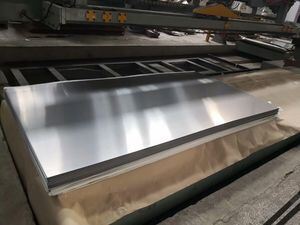

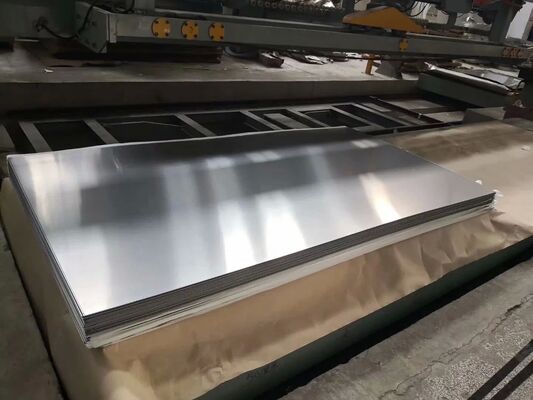

Cold Rolled Bright Surface 316L Stainless Steel Sheet Corrosion Resistant SS 316L Plate

Certification	ISO, AISI, ASTM
Quantité de commande min	50 kg
Prix	US $1.65-4.85 / kg

Détails sur le produit

Numéro de modèle.	316L	Forme	Plat
Technique	laminé à froid	Traitement de surface	Brillant
Contenu Cr	16%	Contenu de Ni	10%
Mo contenu	2%	Plage d'épaisseur	0,1 à 100 mm
Plage de largeur	10-2500mm	Plage de longueur	2 m, 2,44 m, 3 m ou selon les besoins
Options de dureté	Doux, dur, demi-dur, quart de dur, dur à ressort	UTS	91 ksi (627 MPa)
0,2% JA	42 ksi (290 MPa)	Élongation	55 % en 2" (50,8 mm)
dureté de Rockwell	B79
Mettre en évidence	Cold Rolled Stainless Steel Sheet , Bright Surface SS 316L Sheet , Corrosion Resistant 316L Stainless Steel Plate

Laisser un message

Description de produit

Type 316 Austenitic Stainless Steel Sheets

316/316L Stainless Steel Sheet is a premium grade where superior corrosion resistance is essential. This material is widely used in marine environments, highly acidic conditions, underwater equipment, surgical tools, and food/pharmaceutical applications. The molybdenum addition enhances corrosion resistance compared to the more economical 304 grade.

Product Forms

Available as Sheet, Plate, Coil, Strip, Wire, Pipe, Tube, Bar, Profile, Round, Flat, Square, and Hexagonal forms.

Specifications & Standards

Product Type	SS 316 Sheet, SS 316 Plate
Material Grade	ASTM A240 / ASME SA240 Grade 316
Tolerances	EN 10258 / DIN 59381
Standards	ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510

Available Sizes & Dimensions

Cold Rolled Sheet: 0.5-6.4 mm

Hot Rolled Sheet: 3.0-10.0 mm

Thickness: 0.1 to 100 mm

Width: 10-2500 mm (600mm-2030 mm range)

Length: 2m, 2.44m, 3m, or as required (300-6000 mm, Max 18000 mm)

Surface Finishes

2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN, No.1 finish, 1D, No.4, 8K, satin, hairline, brush, mirror, etching, SB, Ti-coating, color-coating, embossing.

Applications

Food processing equipment
Marine applications
Surgical instruments
Firearms production
Pulp & paper industry
Chemical process vessels
Pharmaceutical equipment

Chemical Composition

Element	Type 316 (wt %)	Type 316L (wt %)
Carbon (C)	0.08 max.	0.03 max.
Manganese (Mn)	2.00 max.	2.00 max.
Phosphorus (P)	0.045 max.	0.045 max.
Sulfur (S)	0.030 max.	0.03 max.
Silicon (Si)	0.75 max.	0.75 max.
Chromium (Cr)	16.00 - 18.00	16.00 - 18.00
Nickel (Ni)	10.00 - 14.00	10.00 - 14.00
Molybdenum (Mo)	2.00 - 3.00	2.00 - 3.00
Nitrogen (N)	0.10 max.	0.10 max.
Iron (Fe)	Balance	Balance

Mechanical Properties

Room Temperature Properties

UTS ksi (MPa)	0.2% YS ksi (MPa)	Elongation % in 2"	Rockwell Hardness
91 (627)	42 (290)	55	B79

Elevated Temperature Properties

Temperature °F (°C)	UTS ksi (MPa)	0.2% YS ksi (MPa)	Elongation % in 2"
400 (204)	81 (558)	35 (241)	51
600 (316)	78 (538)	31 (214)	48
800 (427)	76 (524)	28 (190)	47
1000 (538)	70 (483)	24 (165)	44
1200 (649)	57 (393)	21 (145)	40
1400 (760)	35 (241)	18 (124)	37
1600 (871)	24 (165)	16 (110)	44

Technical Characteristics

Corrosion Resistance

Types 316 and 316L offer improved chloride corrosion resistance compared to Type 304 due to molybdenum content. Suitable for marine atmospheres, paper, petroleum, food, and dairy industries. Resistant to sulfuric acid environments below 5% concentration up to 150°F (60°C). Excellent resistance to acetic, formic, phosphoric, and tartaric acids.

Heat Treatment

Annealing: Heat to 1900-2100°F (1038-1149°C), then rapidly quench.

Cold Working & Formability

Excellent ductility in annealed condition for roll forming, deep drawing, and bending. Work hardens slower than Type 304. Annealing restores ductility for subsequent forming operations.

Weldability

Austenitic stainless steel weldable by common fusion and resistance techniques. Type 316L eliminates harmful carbide precipitation due to welding. AWS E/ER 316L and 16-8-2 commonly specified as weld filler materials.
