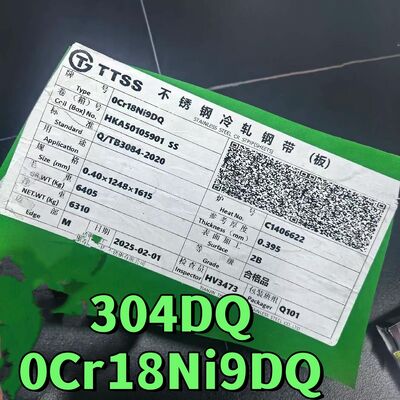

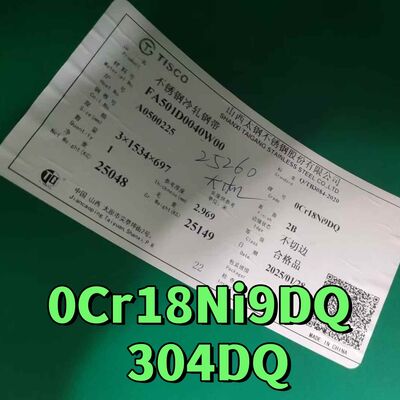

Cold Rolled 304DQ 0Cr18Ni9DQ Stainless Steel Sheet for Deep Drawing Quality 0.5-3.0

Place of Origin	China
Brand Name	Tisco ZPSS TSING SHAN
Certification	ISO, AISI, ASTM
Model Number	304DQ 0Cr18Ni9DQ
Minimum Order Quantity	50 kg
Price	US $1.95-2.89 / kg

Product Details

Model NO.	304	Shape	Flat
Technique	Cold Rolled	Surface Treatment	2B
Cr Content	18%	Ni Content	8%
Specification	12202440, 15003000, 15006000, 20006000mm	Production Capacity	50000kgs
Tensile Strength	≥ 520 MPa	Yield Strength	≥ 205 MPa
Elongation	≥40%	Section Shrinkage	≥ 60%
Hardness	≤ 187HB; ≤ 90HRB; ≤ 200HV	Melting Point	1398 ~ 1454 ºC
Thermal Conductivity	16.3 ~ 21.5 W/m.K

Leave a Message

Product Description

Cold Rolled 304DQ 0Cr18Ni9DQ Stainless Steel Sheet for Deep Drawing Quality 2.0

304DQ Stainless Steel

304DQ is a deep‑drawing grade of 304 stainless steel.
With low‑carbon composition and soft annealing, it offers superior ductility for medium‑depth stamping, bending and forming without cracking.
It features smooth surface, good polishability and standard corrosion resistance, widely applied in kitchenware, home appliances and precision stamped parts.

Surface Treatment Options

Surface Finish	Characteristics and Applications

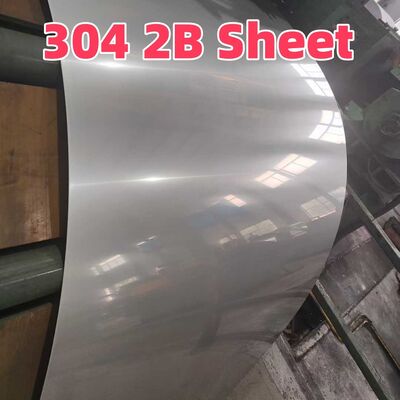

NO.2B	Better brightness and flatness than NO.2D. Special surface treatment improves mechanical properties for comprehensive applications.
NO.1	Heat treatment and pickling after hot rolling process.
NO.4	Polished with abrasive belt grit #150-#180. Better brightness with discontinuous coarse striations. Used for bathtubs, building ornaments, appliances, kitchen utensils, and food processing equipment.
HL	Polished with abrasive belt grit #150-#320 on NO.4 finish with continuous streaks. Used for building ornaments, elevators, doors, and frontal plates.
BA	Cold rolled, bright annealed and skin-passed. Excellent brightness and mirror-like reflectivity for kitchen apparatus and ornaments.
8K	Excellent brightness and superior reflectivity, can be used as mirror.

Chemical Composition

C: ≤0.08, Si: ≤1.0, Mn: ≤2.0, Cr: 18.0~20.0, Ni: 8.0~10.0, S: ≤0.03, P: ≤0.045

Physical Properties

Property	Value
Tensile Strength σb (MPa)	≥ 520
Yield Strength σ0.2 (MPa)	≥ 205
Elongation δ5 (%)	≥ 40
Section Shrinkage ψ (%)	≥ 60
Hardness	≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point (°C)	1398 ~ 1454
Specific Heat Capacity (0~100°C, KJ/kgK)	0.50
Thermal Conductivity (W/m·K)	16.3 (100°C), 21.5 (500°C)
Linear Expansion Coefficient	17.2 (0~100°C), 18.4 (0~500°C)
Resistivity (20°C, 10⁻⁶ Ω·m)	0.73
Longitudinal Elastic Modulus (20°C, KN/mm²)	193

Corrosion Resistance

Stainless steel's resistance to corrosion and staining, low maintenance requirements, and familiar luster make it an ideal material for many applications. The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and as an automotive and construction material in large buildings. It is particularly suitable for commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized without requiring paint or other surface finishes.

Applications

Food preparation equipment, especially in chloride environments
Chemical processing equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, valves and pump trim
