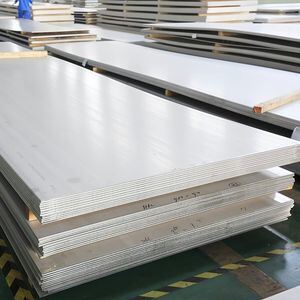

Hastelloy C276 Nickel Alloy Plate and Sheet with 1mm - 30mm Thickness Available for Laser Cutting and Hot Rolled
Product Details
| Shape | Flat | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Polished | Thickness Range | 1mm - 30mm |
| Cold Rolled Thickness | 0.3mm - 3mm | Hot Rolled Thickness | 3.0mm - 30mm |
| Standard Size | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Chemical Composition | Ni (Bal), Cr 14.5-16.5%, Mo 15-17%, W 3-4.5%, Fe 4-7% |
| Max Temperature | 1900°F | Bending Range | Within 30mm |
| Production Capacity | 50000kgs | Sheet Size | 1219*2438mm |
| Plate Size | 1500*6000mm | Bar Diameter | 6 - 250mm |
| Pipe Diameter | DN10-DN300 | ||
| Highlight | 1mm - 30mm Thickness Hastelloy C276 Plate,Laser Cutting Nickel Alloy Sheet,Hot Rolled Hastelloy C276 Sheet |
||
Product Description
Hastelloy C276 Nickel Alloy Plate & Sheet
Available in thickness 1mm - 30mm with in-stock laser cutting services
Product Specifications
| Product Name | Nickel Alloy Plate & Sheet |
|---|---|
| Thickness | Cold rolled: 0.3mm-3mm Hot rolled: 3.0mm-30mm |
| Standard Size | Cold Rolled: 1000×2000mm, 1219×2438mm, 1500×3000mm Hot Rolled: 1500×6000mm, 1800×6000mm, 2000×6000mm |
| Service | Cutting (laser cutting, plasma cutting, cutting machine), Bending, forged production |
| Surface Service | Raw finishing (2B NO.1) Finishing (HL 8K Checkered, etc) |
| Standard | ASTM, AISI, DIN, EN, GB, JIS |
Main Grades Available
ASTM Grade: Incoloy 800/800H, Incoloy 825, Inconel 600, Inconel 625, Inconel 690, Hastelloy B, Hastelloy B-2, Hastelloy C276, Hastelloy C4, Hastelloy C2000
ASME Grade: N08800, N08810, N08825, N06600, N06601, N06690, N10001, N10665, N10276, N06455, N06625
EN Standards: 1.4588, 2.4858, 2.4817, 2.4642, 2.4617, 2.4819, 2.461, 2.4856
Brand: TISCO, BAOSTEEL, ZPSS, LISCO, JISCO
Size Specification for Hastelloy C276
| Type | Size 1 | Size 2 | Note |
|---|---|---|---|
| Hastelloy C276 Sheet | 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1219×2438mm | Cold Rolled |
| Hastelloy C276 Plate | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm | 1500×6000mm | Hot Rolled |
| Hastelloy C276 Bar | Diameter: 6-250mm | Length as request | black / bright finish |
| Hastelloy C276 Pipe | Diameter DN10-DN300 × SCH10-XXS | Length as request | seamless pipe |
| Hastelloy C276 Strip | Thickness 0.3-3.0mm | width within 1219mm | slit cutting |
Material Description
About Hastelloy C276
HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, making it suitable for most chemical process applications in an as-welded condition.
Alloy C-276 has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. It offers exceptional resistance to a wide variety of chemical environments.
Chemical Composition of Hastelloy C276
| Weight% | C | P | Si | Ni | Co | W | Mn | S | Cr | Mo | V | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.01 max | 0.040 max | 0.08 max | Bal | 2.5 max | 3-4.5 | 1.00 max | 0.030 max | 14.5-16.5 | 15-17 | 0.35 max | 4-7 |
Related Specifications
- N10276
- ASTM B574
- 2.4819
- NC 17d (FR)
- NiMo16Cr15W (DE)
Key Features
- Excellent resistance to pitting and corrosion
- High mechanical properties
- Excellent resistance to oxidizing atmospheres up to 1040°C
- Very high resistance to many aggressive chemicals
Applications
Chemical process, arduous areas of flue gas desulphurisation plants, critical components in sewage treatment, chemical and petrochemical plants; waste incineration, sour gas production and organic acid processing.
Process Services
Surface Finishing: Mirror Polishing, Hairline Finishing, SB, NO.4, Santi Finishing, Anti-finger Print, PVC film Cover, Titanum Colored, checkered Finishing
Cutting Service: Laser Cutting, waterjet cutting, plasma Cutting, machine Cutting, Slit cutting
Bending Service: bending range thickness within 30mm
Welding Service: any kinds of welding process
Packing and Delivery
Packing Options for Sheets
- Type 1: Wooden pallets and waterproof paper
- Type 2: Wooden pallets and waterproof paper + steel corner
- Type 3: Wooden pallets and waterproof paper + steel corner + wooden plates cover
- Type 4: Wooden box
Each packing loads approximately 1.5 - 2 Tons
Packing for Coils
Coils and strips are loaded on # shape wooden frames. Surface is covered by waterproof paper and plastic film. Each frame loads within 6 Tons.
Product Gallery
Trade Information
| MOQ | 1 Ton |
|---|---|
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C |
| Sample | Samples free and express charges bear by you |
| Package | Standard export package with water proof paper, metal pallet, angle bar protection, steel strip or as required |
Company Information
Our company is a high-tech enterprise specializing in the research, development and production of nickel base, iron base and other special alloys. Located in Wuxi, Jiangsu Province, 100 kilometers from Shanghai, we cover an area of 15,000 square meters.
With over 100 employees including more than 20 senior technical personnel and 5 senior engineers, we maintain comprehensive production lines for vacuum refining, electroslag remelting, forging, machining and heat treatment. Our annual production capacity exceeds 2000 tons.
We utilize advanced quality testing equipment including chemical analysis instruments, spectroscopy, carbon and sulfur analyzers, ultrasonic inspection, tensile testing machines, and hardness testers.
Our product range includes high temperature alloy, corrosion resistant alloy, precision alloy and special stainless steel in various specifications: bar, plate, pipe, wire, strip, flange and forging. These are widely used in petrochemical, aerospace, shipbuilding, energy, military, electronics, environmental protection, machinery, and instrumentation fields.
