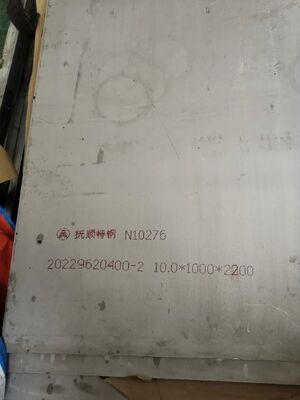

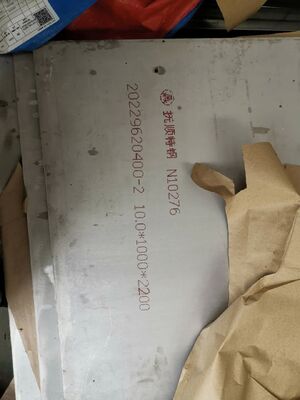

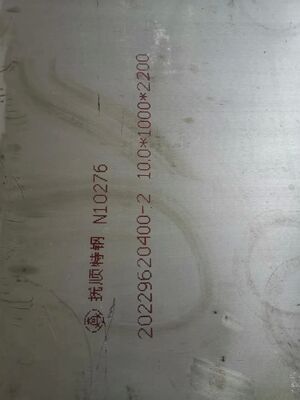

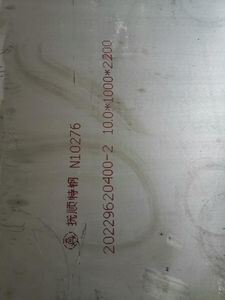

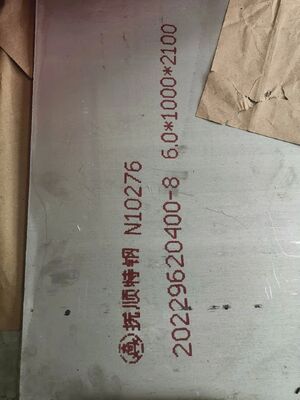

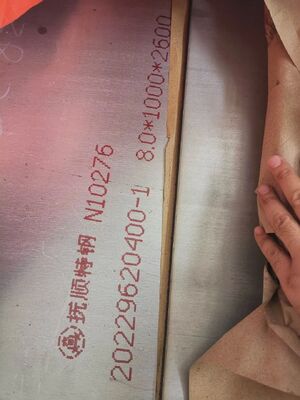

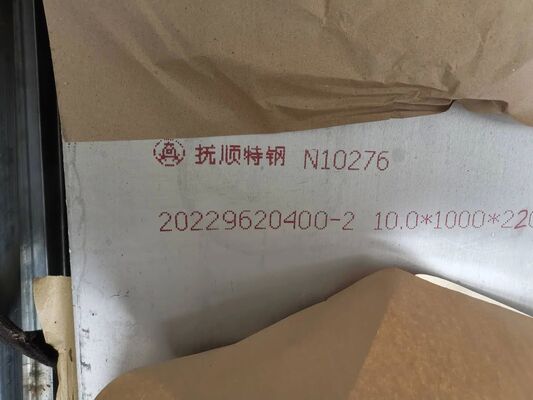

Corrosion Resistant Bright Annealed Hastelloy C276 Plate 1220*2440mm Nickel Alloy Sheet
Product Details
| Model NO. | C276 | Shape | Flat |
|---|---|---|---|
| Technique | Cold Rolled | Surface Treatment | Bright |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Thickness | 0.1mm To 100 Mm |
| Width | 10-2500mm | Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Temper | Annealed | Condition | Polished On Both Sides |
| Finish | Hot Rolled Plate (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO(8), SATIN | Length | 2m, 2.44m, 3m, Or As Required |
| Surface Finish | No.1, 2B, BA, No.3 | Cold Rolled Thickness | 0.5-6.4 Mm |
| Hot Rolled Thickness | 3.0-10.0 Mm | ||
| Highlight | Corrosion Resistant Hastelloy C276 Plate,Bright Annealed Nickel Alloy Plate,1220*2440mm Alloy C276 Sheet |
||
Product Description
Hastelloy C276 Nickel Alloy Steel Plate
ASTM B575 Corrosion Resistant Bright Annealed Hastelloy C276 Super Alloy Sheet Plate
Product Overview
Hastelloy C-276 is considered one of the most versatile corrosion-resistant alloys available, offering excellent performance in various chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine, hypochlorite, and chlorine dioxide solutions.
This alloy resists formation of grain boundary precipitates in the weld heat-affected zone, making it suitable for most chemical processes in the as-welded condition. It provides excellent resistance to pitting and stress corrosion cracking.
Available Forms
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Wire
Specifications and Dimensions
| Specification | ASTM B575; ASTM B906; ASME SB575; ASME SB906, ISO 6208, DIN 17750, VdTÜV 400/12.98 |
|---|---|
| Length & Sizes | 1000mm x 2000mm, 1220mm x 2440mm, 1500mm x 3000mm, 2000mm x 2000mm, 2000mm x 4000mm, 2m, 2.44m, 3m, 36" x 120" or 48" x 144", Cut to size available |
| Thickness | 0.1mm to 100mm |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Quality Assurance
- Huge Stock, Timely delivery
- Raw Materials Certificate
- EN 10204/3.1B
- 100% Radiography Test Report
- High special strength, high melt point
- Third Party Inspection Report
- Excellent corrosive resistance, good thermal resistance
- Customer support after-sales service
- Strict Control from Raw Material to Finished Hastelloy C276 plate
Profiling Services
- Plasma Plate Cutting
- Laser Plate Cutting
- Oxy-propane Flame Cutting
Product Specialization
- Hastelloy C276 Sheet: material under 3/16" [5.00mm] in thickness and 24" [600mm] and over in width
- Hastelloy C276 Plate: material 3/16" [5.00mm] and over in thickness and over 10" [250mm] in width
- Hastelloy C276 Strip: cold-rolled material under 3/16" [5.00mm] in thickness and under 24" [600mm] in width
- Hastelloy C276 Clad plate: composite steel plate made by bonding Hastelloy C276 plate
Dimension Range
Width: 914-2030mm
Thickness: 0.1-6.0mm (Cold rolled Sheet), 3-100mm (Hot rolled Sheet)
Length: 300-6000mm
Surface Finish: No.1, 2B, BA, No.3
Applications
- Stack liners
- Ducts
- Dampers
- Scrubbers
- Heat exchangers
- Reaction vessels
- Evaporators
Additional Specifications
| Product Type | Hastelloy C276 ASTM B575 Sheet, Hastelloy C276 ASTM B575 Plate |
|---|---|
| HS Code | 75062000 |
