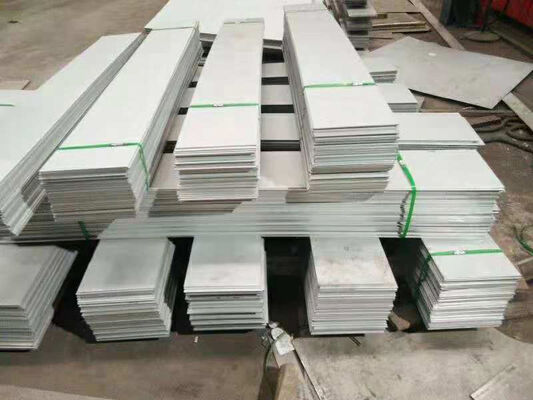

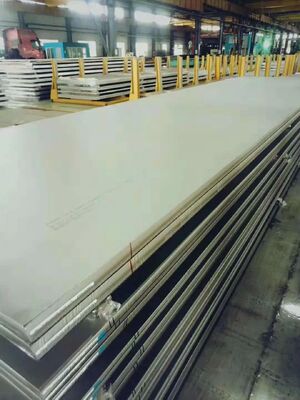

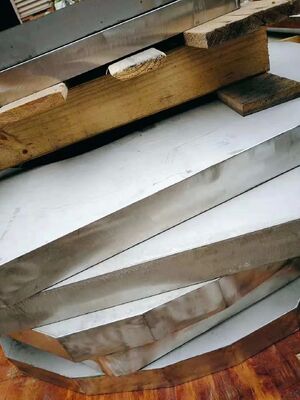

Hot Rolled Polished Hastelloy C276 Nickel Alloy Plate with Excellent Corrosion Resistance
Product Details
| Model NO. | C276 | Shape | Flat |
|---|---|---|---|
| Technique | Hot Rolled | Surface Treatment | Polished |
| Specification | 1220*2440, 1500*3000, 1500*6000, 2000*6000mm | Production Capacity | 50000kgs |
| Nickel Content | Balance | Chromium Content | 14.5-16.5% |
| Molybdenum Content | 15-17% | Iron Content | 4-7% |
| Tungsten Content | 3-4.5% | Density | 8.9 G/cm³ |
| Melting Point | 1325-1370 ºC | Tensile Strength | 690 N/mm² |
| Yield Strength | 283 N/mm² | ||
| Highlight | Hot Rolled Hastelloy C276 Plate,Polished Nickel Alloy Plate,Corrosion Resistant UNS N10276 Plate |
||
Product Description
Nickel Alloy Hastelloy B3 C22 C4 C276 UNS N10276 Plate
Hastelloy C-276 Chemical Composition
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.08 | 1 | 1 | 0.35 | 0.04 | 0.03 | ||
| C276 | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.35 | 0.04 | 0.03 |
Hastelloy C-276 Physical Properties
| Density | 8.9 g/cm³ |
| Melting Point | 1325-1370 ºC |
Hastelloy C-276 Minimum Mechanical Properties at Room Temperature
| Alloy State | Tensile Strength Rm N/mm² | Yield Strength RP0.2 N/mm² | Elongation A5 % |
|---|---|---|---|
| C / C276 | 690 | 283 | 40 |
Key Characteristics
- Excellent corrosion resistance to most corrosion media in oxidation and reduction environments
- Superior resistance to pitting, crevice corrosion, and stress corrosion cracking
Hastelloy C-276 Metallurgical Structure
C276 alloy features a face-centered cubic lattice structure.
Hastelloy C-276 Corrosion Resistance
C276 alloy is suitable for various chemical process industries containing oxidizing and reducing media. The high molybdenum and chromium content provides excellent resistance to chloride corrosion, while tungsten enhances overall corrosion resistance. C276 is one of the few materials that can resist corrosion from chlorine, hypochlorite, and chlorine dioxide, with outstanding performance against high concentrations of chlorides such as iron chloride and copper chloride.
Hastelloy C-276 Application Fields
C276 is widely used in chemical and petrochemical fields, particularly in chloride organic and catalytic systems. This material is especially suitable for high-temperature environments, impure inorganic and organic acids (such as formic acid and acetic acid), and seawater corrosion environments.
Additional Application Areas
- Digesters and bleachers in pulp and paper making industry
- Absorption towers, re-heaters, and fans in FGD systems
- Equipment and components used in acidic gas environments
- Acetic acid and anhydride reaction generators
- Sulfuric acid cooling systems
- MDI manufacturing
- Manufacture and processing of impure phosphoric acid
