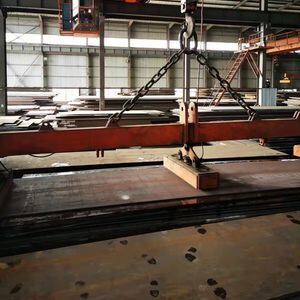

Hot Rolled Wear Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm for Abrasion Resistance
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m 8m 10m |
| Hardness Range | 450-540 (AR500), 420-500 (AR450), 360-480 (AR400) | Yield Strength | 1250 MPa (AR500), 1200 MPa (AR450), 1000 MPa (AR400), 900 MPa (AR300) |
| Tensile Strength | 1450 MPa (AR500, AR450), 1250 MPa (AR400), 1000 MPa (AR300) | Elongation | 8% (AR500, AR450), 10% (AR400), 11% (AR300) |
| Impact Strength | -30C (AR500), -40C (AR450, AR400, AR300) | Carbon Content | 0.30 (AR500), 0.26 (AR450), 0.25 (AR400), 0.18 (AR300) |
| Silicon Content | 0.7 | Manganese Content | 1.70 |
| Chromium Content | 1.00 (AR500, AR450), 1.50 (AR400, AR300) | Nickel Content | 0.70 (AR500, AR450, AR400), 0.40 (AR300) |
| Molybdenum Content | 0.50 | ||
| Highlight | Hot Rolled Wear Resistant Steel Plate,5mm-80mm Thickness Abrasion Resistant Steel Plate,Width 10-2600mm AR Steel Plate |
||
Product Description
Wear Resistant Steel Plate AR500 NM500 HB500 AR450 NM450 HB450
Our premium abrasion resistant steel plates are engineered for exceptional durability and long service life in demanding industrial applications. Available in various grades including AR500, NM500, HB500, AR450, NM450, and HB450, these plates deliver superior performance in harsh operating conditions.
Product Specifications
| Description | Abrasion Resistant Steel Plate |
|---|---|
| HRC | 5.0 - 80.0mm |
| Related Material | NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600 |
Thickness: 5mm - 80mm
Width: 1500mm, 2000mm, 2200mm
Length: 6m, 8m, 10m or custom lengths
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Applications & Benefits
Abrasion Resistant (AR) steel plates are specifically developed for long service life in harsh conditions. These heat-treated plates offer excellent resistance to sliding and impact abrasion, making them ideal for mining, quarrying, construction, material handling, and earthmoving applications.
- AR400: Premium abrasion resistant plates with improved forming and welding capabilities
- AR450: Ideal for applications requiring slightly greater strength beyond AR400
- AR500: Suitable for mining, forestry, and construction applications
- AR600: Utilized in high-wear areas such as aggregate removal and wear body manufacturing
Shipping & Delivery
Delivery Time: 7-30 days after order confirmation
Shipping Method: By sea from Shanghai port
Packaging: Standard seaworthy export packing with steel straps
Payment Terms: T/T, L/C, Western Union
