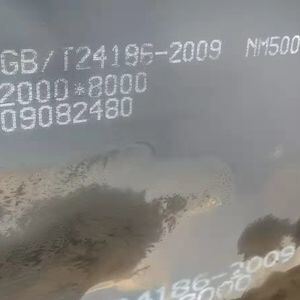

Hot Rolled AR500 Wear Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Product Details
| Technique | Hot Rolled | Width | 10-2600mm |
|---|---|---|---|
| Thickness | 5mm-80mm | Length | 6m, 8m, 10m Or Custom |
| Hardness HRC | 5.0 - 80.0mm | Yield Strength | 900-1250 MPa |
| Tensile Strength | 1000-1450 MPa | Elongation | 8-11% |
| Impact Strength | -30C To -40C | Hardness Range | 360-540 |
| Carbon Content | 0.18-0.30% | Manganese Content | 1.70% |
| Chromium Content | 1.00-1.50% | Production Capacity | 50000kgs |
| Container Size | 20ft: 24-26 CBM, 40ft: 68 CBM | ||
| Highlight | Hot Rolled Wear Resistant Steel Plate,5mm-80mm Thickness Abrasion Resistant Steel Plate,Width 10-2600mm AR500 Steel Plate |
||
Product Description
Wholesale AR500 Wear Resistant Steel Plate
Premium abrasion resistant steel plates including AR500, AR450, AR400, and AR300 grades designed for extended service life in demanding industrial applications.
Product Specifications
Available Grades & Materials
NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600
Dimensions
Thickness: 5.0 - 80.0mm
Width: 1500mm, 2000mm, 2200mm
Length: 6m, 8m, 10m or custom lengths as requested
Width: 1500mm, 2000mm, 2200mm
Length: 6m, 8m, 10m or custom lengths as requested
Hardness Range
HRC: 5.0 - 80.0mm
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
|---|---|---|---|---|---|---|---|---|---|
| AR500 | 0.30 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.70 | 0.025 | 0.015 | 1.00 | 0.70 | 0.50 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.70 | 0.50 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.70 | 0.025 | 0.015 | 1.50 | 0.40 | 0.50 | 0.005 |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation A | Impact Strength | Hardness Range |
|---|---|---|---|---|---|
| AR500 | 1250 | 1450 | 8 | -30°C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40°C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40°C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40°C | - |
Applications & Benefits
Abrasion resistant steel plates are specifically engineered for long service life in harsh conditions. These heat-treated plates offer excellent resistance to sliding and impact abrasion, making them ideal for demanding industrial applications.
- AR400: Premium abrasion resistant plates with improved forming and welding capabilities
- AR450: Ideal for applications requiring slightly greater strength than AR400
- AR500: Suitable for mining, forestry, and construction applications
- AR600: Utilized in high-wear areas including aggregate removal and wear body manufacturing
Shipping & Delivery
Delivery Time
7-30 days after order confirmation
Packaging
Standard seaworthy export packaging with bundled steel straps, customizable as required
Shipping Methods
By sea from Shanghai port, with cargo transport to port by truck
Payment Terms
T/T, L/C, Western Union
Price Terms
EX-Work, FOB, CFR, CIF
